Description

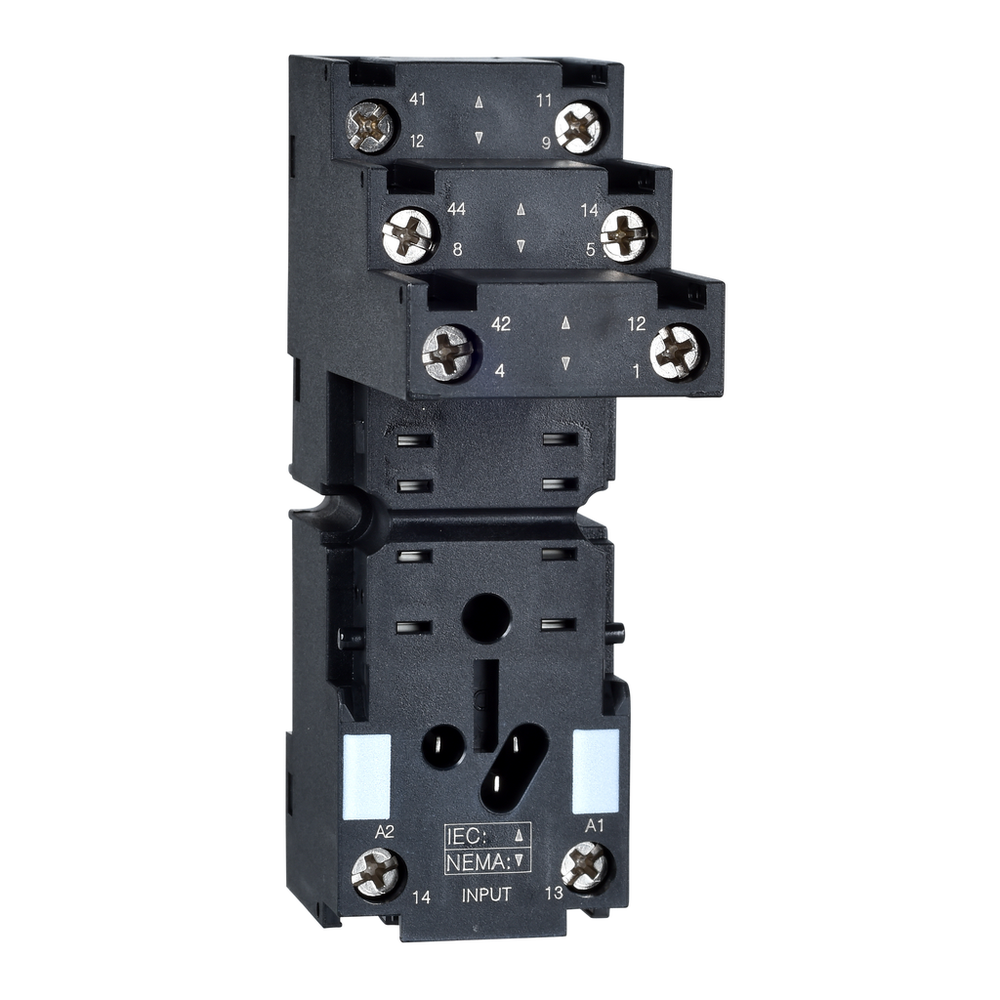

This Harmony RXZ plug-in relay socket has a coil control voltage of 250V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 12A." "It has large choice of number of contacts for high rated current use with space-saving design." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "Easy installation and connect to the relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0Socket, Harmony, for RXM2 relays, screw connectors, separate contact
Schneider Electric RXZE2S108M is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end || connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 17) flexible with cable end || connector, 1 x 0.5...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end || connector, 2 x 0.25...2 x 1 mm² AWG 20...AWG 14) solid without cable end
- Fixing Mode
- by screw panel) || clip-on 35 mm symmetrical DIN rail)
- [Ith] Conventional Free Air Thermal Current
- 12 A
- Marking
- CE
- Net Weight
- 0.058 kg
- Tightening Torque
- < 1 N.m M3
- [Ue] Rated Operational Voltage
- < 250 V
- Width
- 27 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -40-55 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Dielectric Strength
- 2500 V
- Ip Degree Of Protection
- IP20 conforming to EN/IEC 60529
- Overvoltage Category
- III
- Pollution Degree
- 3
- Product Certifications
- CSA || Lloyd's || UL
- Standards
- IEC 61984
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP1511021EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Contact Terminal Arrangement
- separate
- Device Short Name
- RXZ
- Product Compatibility
- plug-in relay RXM 2 C/O || plug-in relay REXL 2 C/O
- Product Or Component Type
- socket
- Range Of Product
- Harmony Electromechanical Relays || Harmony Timer Relays
- Sale Per Indivisible Quantity
- 10
- Shape Of Pin
- flat
