Schneider Electric RXM4AB2P7
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

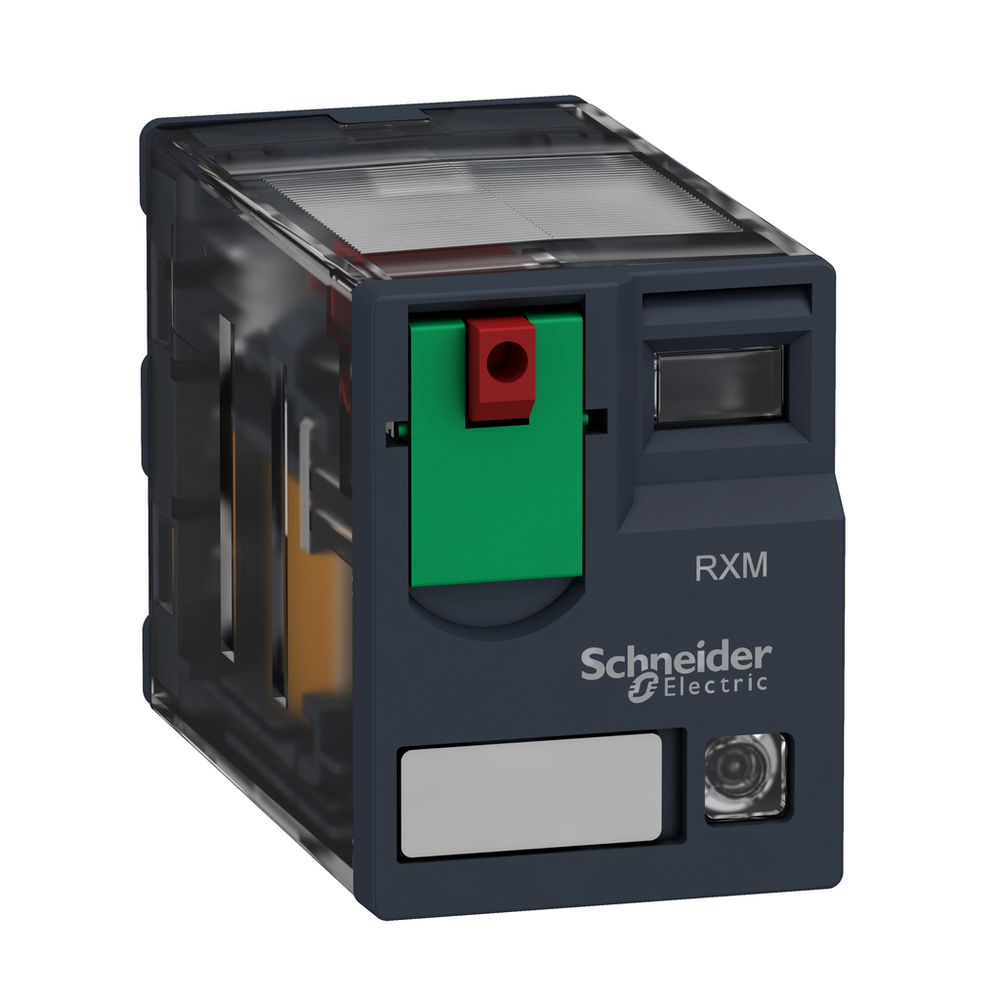

RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 4 C/O relay with current rating of 6A, control circuit voltage of 230 V AC 50/60 Hz. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the red pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. A green LED on the front will illuminate when the relay is on. Status display with LED: clearly signal both in the day and night. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.miniature plug in relay, Harmony Electromechanical Relays, 6A, 4CO, with LED, lockable test but to n, 230V AC
Schneider Electric RXM4AB2P7 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Average Coil Consumption In Va
- 1.2-1.2 60 Hz
- Average Consumption
- 1.2 VA 60 Hz
- Average Resistance
- 15000 Ohm 20 °C +/- 15 %
- Cad Overall Depth
- 80.35 mm
- Cad Overall Height
- 82.8 mm
- Contacts Material
- AgNi
- Continuous Output Current
- 5 A
- Device Presentation
- complete product
- Drop-Out Voltage Threshold
- >= 0.15 Uc
- Electrical Durability
- 100000 cycles resistive
- [Ie] Rated Operational Current
- 3 A 28 V DC) NC IEC || 3 A 250 V AC) NC IEC || 6 A 28 V DC) NO IEC || 6 A 250 V AC) NO IEC || 6 A 277 V AC) UL || 8 A 30 V DC) UL
- Load Current
- 6 A 250 V AC || 6 A 28 V DC
- Maximum Switching Capacity
- 1500 VA/168 W
- Maximum Switching Voltage
- 250 V IEC
- Mechanical Durability
- 10000000 cycles
- Minimum Switching Capacity
- 170 mW 10 mA, 17 V
- Net Weight
- 0.037 kg
- Operating Position
- any position
- Operating Rate
- <= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
- Operating Time
- 20 ms
- Protection Category
- RT I
- Rated Operational Voltage Limits
- 184...253 V AC
- Reset Time
- 20 ms
- Safety Reliability Data
- B10d = 100000
- Shape Of Pin
- flat
- Test Levels
- level A group mounting
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV 1.2/50 µs
- [Ui] Rated Insulation Voltage
- 250 V IEC || 300 V CSA || 300 V UL
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -40-55 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Dielectric Strength
- 1300 V AC between contacts with micro disconnection || 2000 V AC between coil and contact with basic insulation || 2000 V AC between poles with basic insulation
- Ip Degree Of Protection
- IP40 conforming to IEC 60529
- Pollution Degree
- 2
- Product Certifications
- CE || CSA || GOST || UL || Lloyd's
- Shock Resistance
- 10 gnin operation || 30 gnnot operating
- Standards
- CSA C22.2 No 14 || IEC 61810-1 || UL 508
- Vibration Resistance
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2106019EN
- Environmental Disclosure
- ENVPEP2106019EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Contacts Type And Composition
- 4 C/O
- Control Type
- lockable test button
- Device Short Name
- RXM
- Product Or Component Type
- plug-in relay
- Range Of Product
- Harmony Electromechanical Relays
- Series Name
- Miniature
- Status Led
- with
- [Uc] Control Circuit Voltage
- 230 V AC 50/60 Hz
- Utilisation Coefficient
- 20 %
