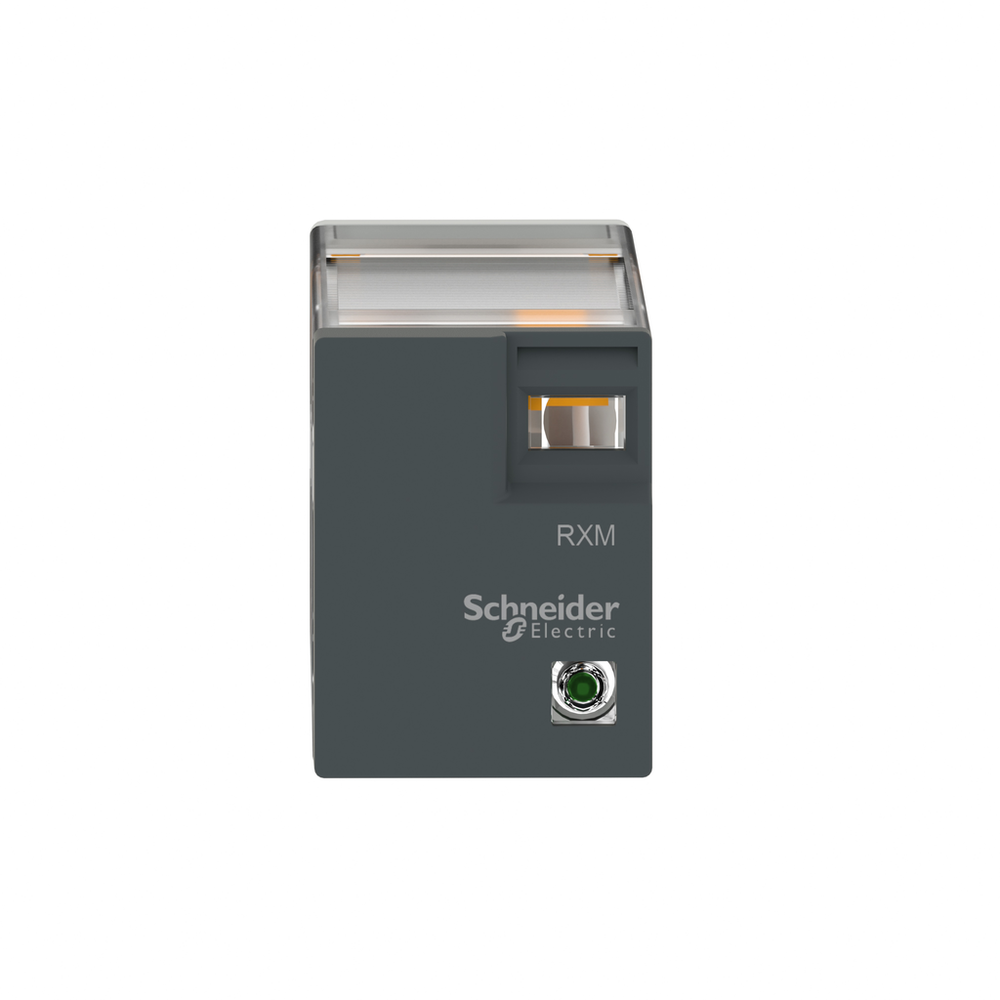

Schneider Electric RXM2LB1B7
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 2 C/O relay with current rating of 5A, control circuit voltage of 24 V AC 50/60 Hz. It also offers a mechanical indicator where an orange flag indicates the relay contact status. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, CE. RXM relay need to be used with a RXZE socket RXZE1M2C. To protect against vibrations, metal clamp RXZ410/RXZ420 can be added to the socket. It is sold in lots of 10 and reference includes relay only. The RXMLB plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (5A), 4 CO (3A) contacts.Miniature plug in relay, Harmony, 5A, 2CO, without LED, 24V AC
Schneider Electric RXM2LB1B7 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Average Coil Consumption In Va
- 1.2-1.2 AC
- Average Resistance
- 180 Ohm at 23 °C +/- 10 %
- Cad Overall Depth
- 46 mm
- Cad Overall Height
- 27 mm
- Cad Overall Width
- 21 mm
- Contact Operation
- standard
- Contacts Material
- silver alloy (Ag/Ni)
- Contacts Type And Composition
- 2 C/O
- Control Type
- without push-button
- Dielectric Strength
- 2000 V AC between coil and contact with basic insulation || 2000 V AC between poles with basic insulation || 1000 V AC between contacts with micro disconnection
- Drop-Out Voltage Threshold
- >= 0.15 Uc AC
- Electrical Durability
- 100000 cycles for resistive load || 50000 cycles, 1 A at 28 V, DC-13 NO
- [Ie] Rated Operational Current
- 5 A AC-1/DC-1) NO IEC || 2.5 A AC-1/DC-1) NC IEC || 1 A 28 V DC-13) NO
- [Ithe] Conventional Enclosed Thermal Current
- 5 A -40-55 °C
- Load Current
- 5 A 250 V AC || 5 A 28 V DC
- Maximum Switching Capacity
- 1250 VA AC || 140 W DC
- Maximum Switching Voltage
- 250 V AC || 28 V DC
- Mechanical Durability
- 10000000 cycles
- Minimum Switching Capacity
- 170 mW
- Minimum Switching Current
- 10 mA
- Minimum Switching Voltage
- 17 V
- Net Weight
- 0.033 kg
- Operating Position
- any position
- Operating Rate
- <= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
- Operating Time
- 20 ms between coil de-energisation and making of the Off-delay contact || 20 ms between coil energisation and making of the On-delay contact
- Protection Category
- RT I
- Rated Operational Voltage Limits
- 19.2...26.4 V AC
- Safety Reliability Data
- B10d = 100000
- Status Led
- without
- Test Levels
- level A group mounting
- [Uc] Control Circuit Voltage
- 24 V AC 50/60 Hz
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV 1.2/50 µs IEC 61810-7
- [Ui] Rated Insulation Voltage
- 250 V IEC
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -40-55 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Ip Degree Of Protection
- IP40 conforming to IEC 60529
- Pollution Degree
- 3
- Shock Resistance
- 30 gnnot operating IEC 60068-2-27 || 10 gnin operation IEC 60068-2-27
- Standards
- CE || IEC 61810-1 (iss. 2)
- Vibration Resistance
- 3 gn +/- 1 mm 10-50 Hz)operating IEC 60068-2-6 || 6 gn +/- 1 mm 10-50 Hz)not operating IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2108011EN
- Environmental Disclosure
- ENVPEP2108011EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Coil Interference Suppression
- without
- Device Short Name
- RXM
- Product Or Component Type
- plug-in relay
- Range Of Product
- Harmony Electromechanical Relays
- Sale Per Indivisible Quantity
- 10
- Series Name
- Miniature
- Utilisation Coefficient
- 20 %
