Description

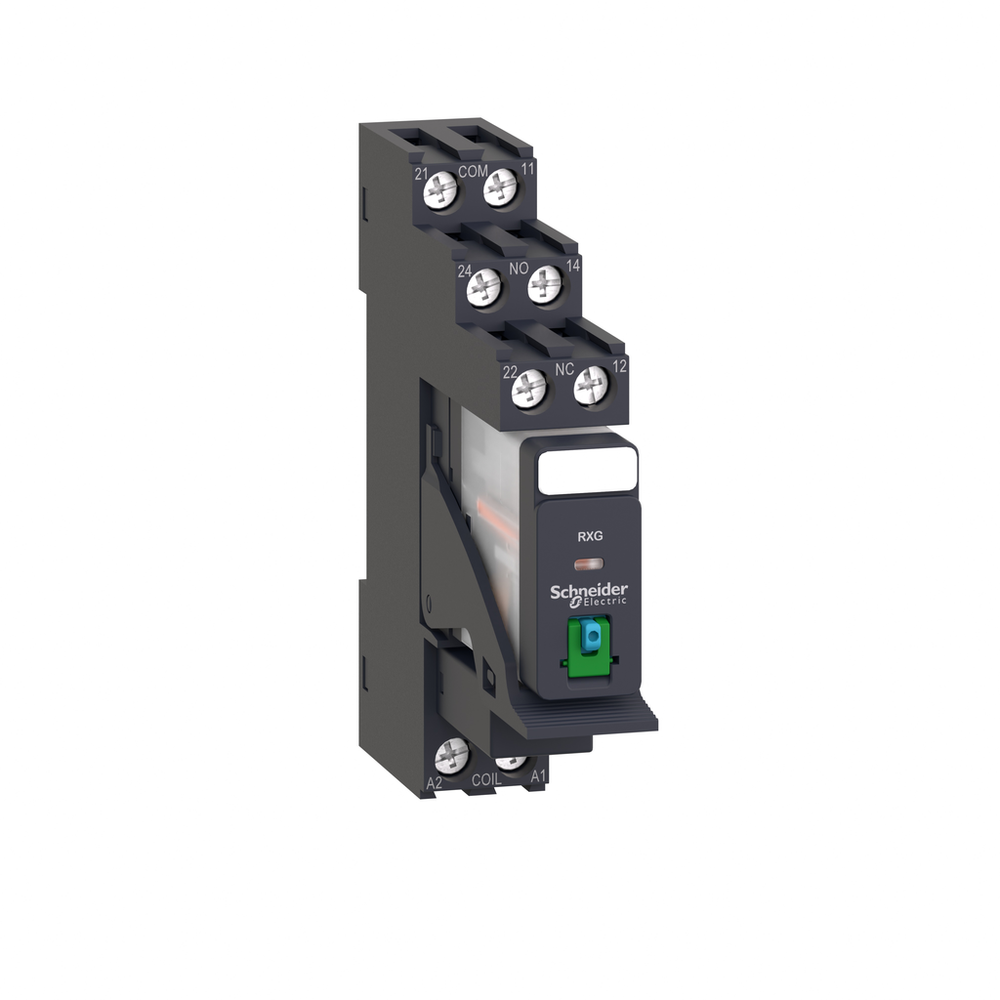

This interface Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled relay mounted on a separate contact terminal socket with integrated clamp and a diode protection module. This is a 5A, 24Vdc, 2 CO interface mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. The relay offers single-step lockable test button. The interface relay socket connection is by screw connector type. This pre-assembled relay weighs 0.067Kg. Its design fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, UL, EAC, CSA, ROHS and REACH. It is sold in lots of 30. The RXG plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 1 CO (10A) and 2 CO (5A) contacts.interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, with LED, pre assembled, lockable test but to n, 24V DC
Schneider Electric RXG21BDPV is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Average Coil Consumption
- 0.53 W DC
- Colour Of Cover
- transparent
- Connections - Terminals
- connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end || connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end || connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end || connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end
- Contact Resistance
- 100 mOhm
- Contacts Material
- silver alloy (AgSnO2In2O3)
- Control Type
- lockable test button
- Device Presentation
- complete product
- Dielectric Strength
- 1000 V AC between contacts with micro disconnection || 1300 V between terminals and base with basic insulation || 3000 V between terminals and LTB area with basic insulation || 3000 V AC between poles with basic insulation || 5000 V AC between coil and contact with reinforced insulation
- Drop-Out Voltage Threshold
- >= 0.1 Uc DC
- Electrical Durability
- 100000 cycles resistive
- Electrical Insulation Class
- class F
- [Ie] Rated Operational Current
- 5 A 30 V DC) UL || 5 A 30 V DC) IEC || 5 A 250 V AC) IEC || 5 A 250 V AC) UL
- Insulation Resistance
- 1000 MOhm at 500 V DC
- [Ithe] Conventional Enclosed Thermal Current
- 5 A
- Load Current
- 5 A
- Maximum Switching Capacity
- 1250 VA AC || 150 W DC
- Maximum Switching Voltage
- 250 V
- Mechanical Durability
- 10000000 cycles
- Minimum Switching Capacity
- 50 mW at 10 mA, 5 V DC
- Mounting Position
- any position
- Net Weight
- 0.065 kg
- Operating Rate
- <= 1800 cycles/hour under load || <= 18000 cycles/hour no-load
- Operating Time
- 20 ms
- Reset Time
- 20 ms
- Resistance
- 1100 Ohm +/- 10 %
- Safety Reliability Data
- B10d = 100000
- Status Led
- without
- Test Levels
- level A group mounting
- Torque Value
- 0.8 N.m || 7.0 lbf.in
- [Uc] Control Circuit Voltage
- 24 V DC
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV 1.2/50 µs between coil and contact || 4 kV 1.2/50 µs between poles || 1.2 kV 1.2/50 µs between contacts || 2.5 kV 1.2/50 µs between terminals and LTB area || 1.5 kV 1.2/50 µs between terminals and base
- [Ui] Rated Insulation Voltage
- 250 V IEC
- Utilisation Coefficient
- 20 %
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -40-70 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Ip Degree Of Protection
- IP20
- Overvoltage Category
- III
- Pollution Degree
- 2
- Product Certifications
- CSA || CE || EAC || UL || DNV-GL
- Protection Category
- RT I
- Relative Humidity
- 10-85 %
- Shock Resistance
- 20 gn in operation || 100 gn not in operation
- Standards
- IEC 61810-1 || CSA C22.2 No 14 || UL 508 || IEC 61984
- Vibration Resistance
- 3 gn +/- 1.5 mm 10-150 Hz)in operation || 5 gn +/- 1.5 mm 10-150 Hz)not in operation
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP1406006EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Contacts Type And Composition
- 2 C/O
- Device Short Name
- RXG
- Product Or Component Type
- pre-assembled plug-in relay with socket
- Range Of Product
- Harmony Electromechanical Relays
- Series Name
- interface relay
