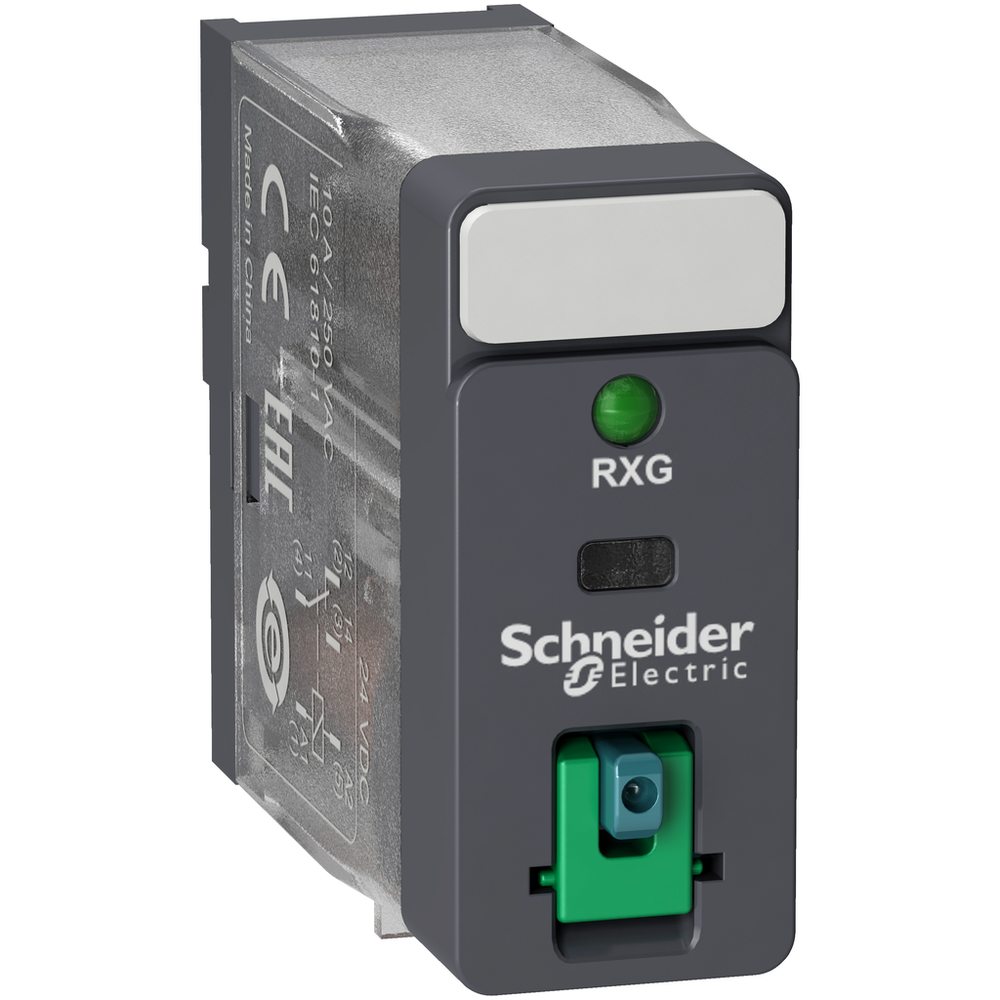

Schneider Electric RXG12BD
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Harmony RXG plug-in relay socket has a coil control voltage of 24V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use." "It also offers lockable test button and LED indicator." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere thanks to its 16mm width." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0 0interface plug in relay, Harmony Electromechanical Relays, 10A, 1CO, with LED, lockable test but to n, 24V DC
Schneider Electric RXG12BD is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Colour Of Cover
- standard
- Contact Resistance
- 100 mOhm
- Contacts Material
- silver alloy (AgSnO2In2O3)
- Control Type
- lockable test button
- Device Presentation
- complete product
- Dielectric Strength
- 1000 V AC between contacts with micro disconnection || 5000 V AC between coil and contact with reinforced insulation
- Drop-Out Voltage Threshold
- >= 0.1 Uc DC
- Electrical Durability
- 100000 cycles NO resistive at 55 °C || 100000 cycles NC resistive at 55 °C
- Electrical Insulation Class
- class F
- [Ie] Rated Operational Current
- 10 A 30 V DC) UL || 10 A 30 V DC) IEC || 10 A 250 V AC) IEC || 10 A 250 V AC) UL
- Insulation Resistance
- 1000 MOhm at 500 V DC
- [Ithe] Conventional Enclosed Thermal Current
- 10 A -40-55 °C
- Load Current
- 10 A 250 V AC
- Local Signalling
- flag
- Maximum Switching Capacity
- 2500 VA
- Maximum Switching Voltage
- 250 V AC || 30 V DC
- Mechanical Durability
- 10000000 cycles
- Minimum Switching Capacity
- 500 mW at 100 mA, 5 V DC
- Mounting Position
- any position
- Net Weight
- 0.02 kg
- Operating Rate
- <= 1800 cycles/hour under load || <= 18000 cycles/hour no-load
- Operating Time
- 20 ms
- Reset Time
- 20 ms
- Resistance
- 1100 Ohm +/- 10 %
- Safety Reliability Data
- B10d = 100000
- Status Led
- with
- Test Levels
- level A group mounting
- Torque Value
- 0.8 N.m
- [Uc] Control Circuit Voltage
- 24 V DC
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV 1.2/50 µs
- [Ui] Rated Insulation Voltage
- 250 V IEC || 300 V CSA || 300 V UL
- Utilisation Coefficient
- 20 %
Environment
- Ambient Air Temperature For Operation
- -40-70 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Ip Degree Of Protection
- IP40
- Overvoltage Category
- III
- Pollution Degree
- 2
- Product Certifications
- CSA || CE || EAC || UL || DNV-GL
- Protection Category
- RT I
- Relative Humidity
- 10-85 %
- Shock Resistance
- 20 gn in operation || 100 gn not in operation
- Standards
- IEC 61810-1 || CSA C22.2 No 14 || UL 508
- Vibration Resistance
- 3 gn +/- 0.75 mm 10-150 Hz)in operation || 5 gn +/- 0.75 mm 10-150 Hz)not in operation
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP1406006EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
Specifications
- Contacts Type And Composition
- 1 C/O
- Device Short Name
- RXG
- Product Or Component Type
- plug-in relay
- Range Of Product
- Harmony Electromechanical Relays
- Series Name
- interface relay
