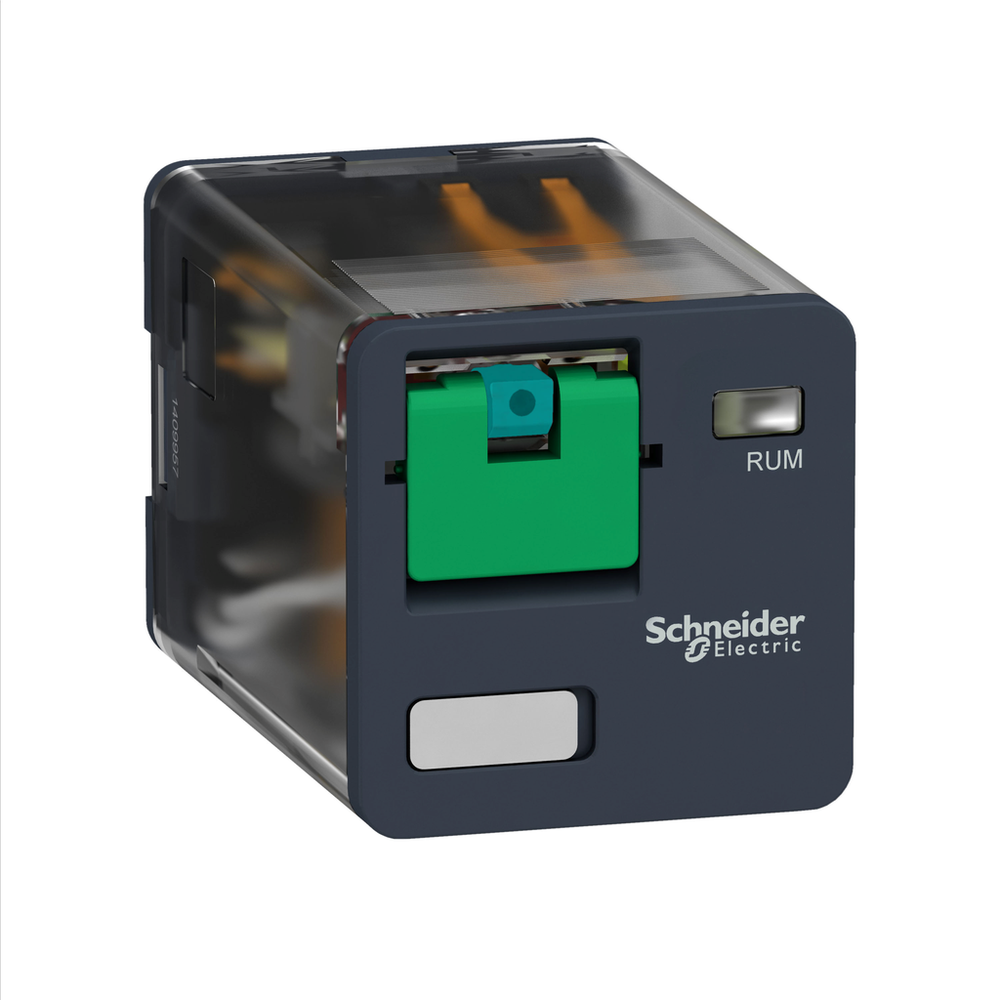

Schneider Electric RUMC31GD
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Harmony RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 125V DC and has 3 changeover contacts triple pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding applications." "It also offers one-step lockable test button." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0Universal plug in relay, Harmony, 10A, 3CO, lockable test button, 125V DC
Schneider Electric RUMC31GD is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Average Coil Consumption
- 1.4 W
- Average Resistance
- 9766 Ohm 20 °C +/- 10 %
- Contacts Material
- AgNi
- Device Presentation
- complete product
- Drop-Out Voltage Threshold
- >= 0.1 Uc DC
- Electrical Durability
- 100000 cycles resistive
- [Ie] Rated Operational Current
- 10 A at 277 V AC conforming to UL || 10 A at 30 V DC conforming to UL || 10 A at 277 V AC (same polarity) conforming to CSA || 10 A at 30 V DC conforming to CSA || 5 A at 250 V AC (NC) conforming to IEC || 5 A at 28 V DC (NC) conforming to IEC || 10 A at 250 V AC (NO) conforming to IEC || 10 A at 28 V DC (NO) conforming to IEC
- Load Current
- 10 A 250 V AC || 10 A 28 V DC
- Maximum Switching Capacity
- 2500 VA/280 W
- Maximum Switching Voltage
- 250 V IEC
- Mechanical Durability
- 5000000 cycles
- Minimum Switching Capacity
- 170 mW 10 mA, 17 V
- Net Weight
- 0.086 kg
- Operating Position
- any position
- Operating Rate
- <= 18000 cycles/hour no-load || <= 1200 cycles/hour under load
- Operating Time
- 20 ms at nominal voltage
- Protection Category
- RT I
- Rated Operational Voltage Limits
- 100...137.5 V DC
- Reset Time
- 20 ms at nominal voltage
- Safety Reliability Data
- B10d = 100000
- Shape Of Pin
- cylindrical
- Test Levels
- level A group mounting
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV 1.2/50 µs)
- [Ui] Rated Insulation Voltage
- 250 V IEC || 300 V CSA || 300 V UL
Environment
- Ambient Air Temperature For Operation
- -40-55 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Dielectric Strength
- 1500 V AC between contacts with micro disconnection || 2500 V AC between coil and contact with reinforced || 2000 V AC between poles with basic
- Ip Degree Of Protection
- IP40
- Pollution Degree
- 2
- Product Certifications
- CSA || UL || EAC
- Shock Resistance
- 10 gn 11 ms) in operation IEC 60068-2-27 || 10 gn 11 ms) not operating IEC 60068-2-27
- Standards
- UL 508 || IEC 61810-1 || CSA C22.2 No 14
- Vibration Resistance
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP1406038EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
Specifications
- Contacts Type And Composition
- 3 C/O
- Control Type
- lockable test button
- Device Short Name
- RUM
- [Ithe] Conventional Enclosed Thermal Current
- 10 A -40-55 °C
- Product Or Component Type
- plug-in relay
- Range Of Product
- Harmony Electromechanical Relays
- Series Name
- Universal
- Status Led
- without
- [Uc] Control Circuit Voltage
- 125 V DC
- Utilisation Coefficient
- 20 %
