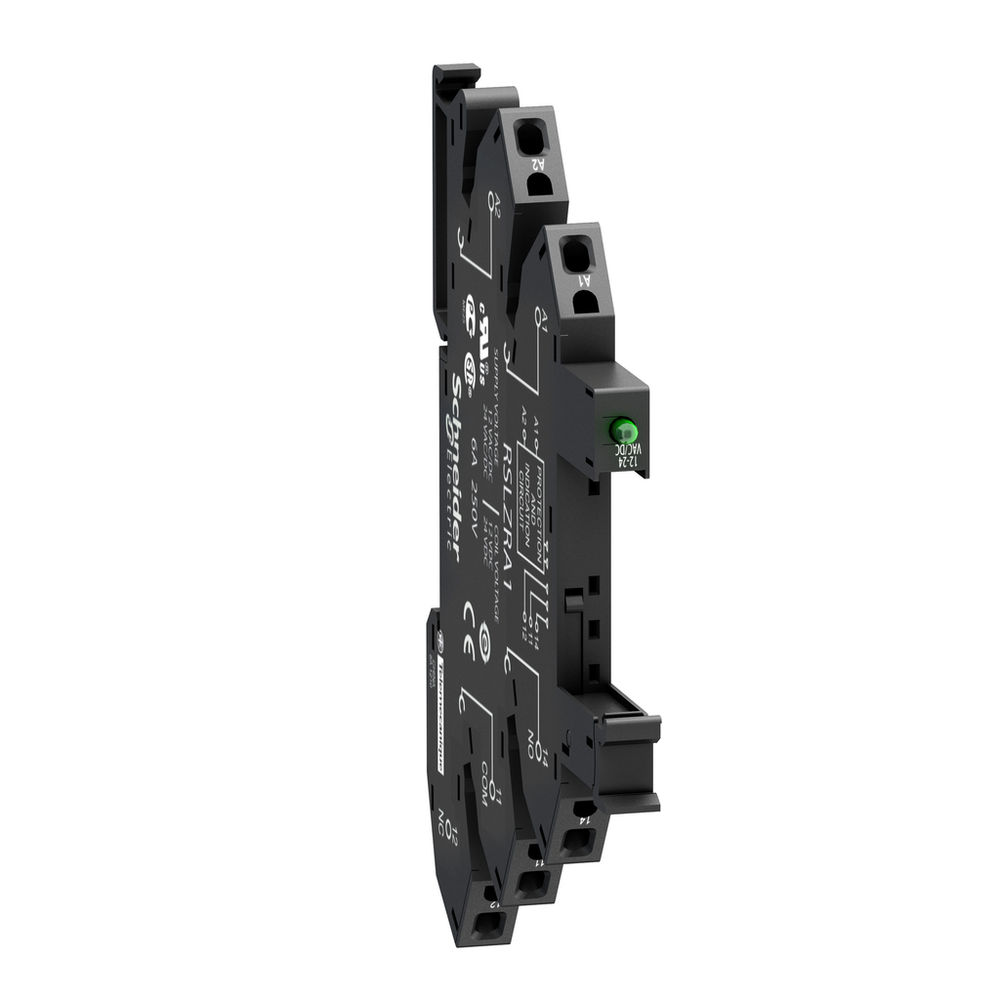

Schneider Electric RSLZRA2
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Harmony RSLZ plug-in relay socket has a coil control voltage of 48 - 60V AC/DC." "It has large choice of number of contacts for high rated current use." "It also offers LED indicator and protection circuit." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "One of the slimiest socket on the market, with 6.2mm width, it can be installed nearly anywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0Socket equipped with LED and protection circuit, Harmony, for RSL1 relays, spring terminals, 48…60V AC DC
Schneider Electric RSLZRA2 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Cad Overall Depth
- 101 mm
- Cad Overall Height
- 78.6 mm
- Cad Overall Width
- 6.2 mm
- Clamping Force
- 10-40 N
- Compatibility Code
- RSLZ
- Fixing Mode
- plastic compression spring 35 mm symmetrical DIN rail)
- Group Of Product
- RSL_SPRING_TERS_48-60
- [Ith] Conventional Free Air Thermal Current
- 6 A
- Marking
- CE
- Net Weight
- 0.023 kg
- Overvoltage Category
- III
- Pollution Degree
- 3
- Rated Operational Voltage Limits
- 54...72 V || 43.2...57.6 V
- [Ue] Rated Operational Voltage
- < 300 V AC
- [Uimp] Rated Impulse Withstand Voltage
- 3.6 kV
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -40-70 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Connections - Terminals
- spring terminals, 1 x 0.2...1 x 1.5 mm² AWG 24...AWG 16) flexible with cable end || spring terminals, 1 x 0.2...1 x 1.5 mm² AWG 24...AWG 16) solid without cable end
- Dielectric Strength
- 2500 V
- Ip Degree Of Protection
- IP20 conforming to EN/IEC 60529
- Product Certifications
- CSA || GOST
- Standards
- IEC 61984 || UL 508
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1405004EN
- Environmental Disclosure
- ENVPEP1405004EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Contact Terminal Arrangement
- separate
- Device Presentation
- basic element
- Device Short Name
- RSLZ
- Product Compatibility
- plug-in relay RSL 1 C/O 48 V DC || plug-in relay RSL 1 C/O 60 V DC
- Product Or Component Type
- socket
- Range Of Product
- Harmony Electromechanical Relays
- Sale Per Indivisible Quantity
- 10
- Shape Of Pin
- flat
- Switching Voltage
- 48 V AC/DC || 60 V AC/DC
