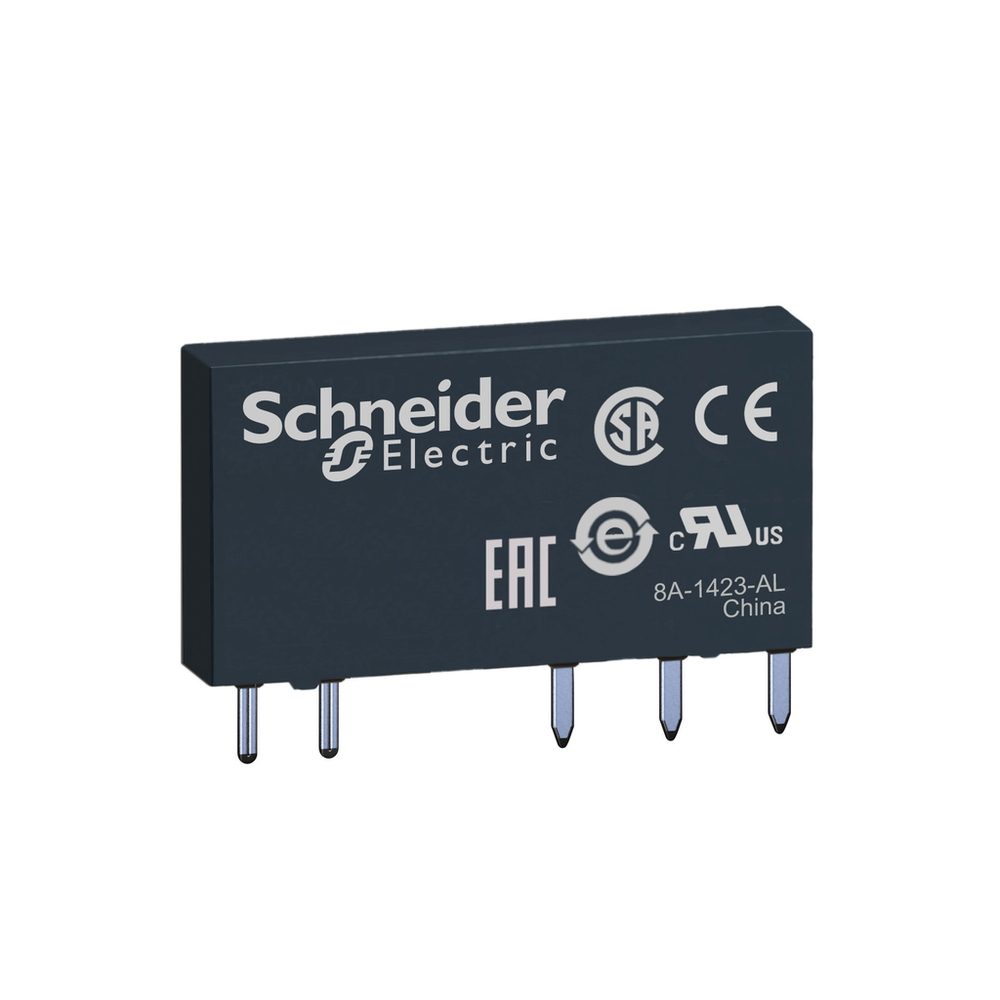

Schneider Electric RSL1AB4ED
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Harmony RSL slim interfacing plug-in relay has a coil control voltage of 48V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 6A." "It has large choice of number of contacts for high rated current use." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "One of the slimiest interface relay on the market, with 6mm width, it can be installed nearly anywhere." "Easy installation and withdrawal the relay from its socket." "It is compatible with high breaking capacity or low-level current application requirements." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "[delete]" "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0Slim interface plug in relay, Harmony, 6A, 1CO, standard, 48V DC
Schneider Electric RSL1AB4ED is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Average Coil Consumption
- 0.21 W
- Average Resistance
- 10600 Ohm at 23 °C +/- 15 %
- Contacts Material
- silver alloy (AgSnO2)
- Depth
- 18.5 mm
- Device Presentation
- complete product
- Drop-Out Voltage Threshold
- >= 0.05 Uc
- Electrical Durability
- 60000 cycles, 6 A at 250 V, AC-1 C/O
- Height
- 28 mm
- [Ie] Rated Operational Current
- 6 A AC-1/DC-1)IEC/UL
- Load Current
- 6 A 250 V AC 0.5 mm mounting distance
- Maximum Switching Capacity
- 1500 VA || 50 W
- Maximum Switching Voltage
- 277 V
- Mechanical Durability
- 10000000 cycles
- Minimum Switching Capacity
- 120 mW
- Minimum Switching Current
- 10 mA
- Minimum Switching Voltage
- 12 V
- Mounting Support
- socket or PCB
- Net Weight
- 0.0054 kg
- Operating Position
- any position
- Operating Rate
- <= 360 cycles/hour under load || <= 18000 cycles/hour no-load
- Operating Time
- 5 ms reset || 12 ms
- Protection Category
- RT III
- Rated Operational Voltage Limits
- 36...67.2 V DC
- Safety Reliability Data
- B10d = 60000
- Shape Of Pin
- flat (PCB type)
- Terminals Description Iso N°1
- (A1-A2)CO || (11-12-14)OC
- Test Levels
- level A group mounting
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC
- [Ui] Rated Insulation Voltage
- 250 V IEC || 277 V cUL
- Width
- 5 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -40-55 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Dielectric Strength
- 1000 V AC between contacts || 4000 V AC between coil and contact
- Ip Degree Of Protection
- IP40 conforming to IEC 60529
- Product Certifications
- UL || EAC || CSA
- Shock Resistance
- 5 gn 11 ms) not operating IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27
- Standards
- CSA C22.2 No 14 || IEC 61810-1 || UL 508
- Vibration Resistance
- +/- 1 mm 10-55 Hz)IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1405004EN
- Environmental Disclosure
- ENVPEP1405004EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
Specifications
- Contact Operation
- standard
- Contacts Type And Composition
- 1 C/O
- Control Type
- without push-button
- Device Short Name
- RSL
- [Ithe] Conventional Enclosed Thermal Current
- 6 A -40-55 °C
- Product Or Component Type
- plug-in relay
- Range Of Product
- Harmony Electromechanical Relays
- Series Name
- slim interface relay
- Status Led
- without
- [Uc] Control Circuit Voltage
- 48 V DC
