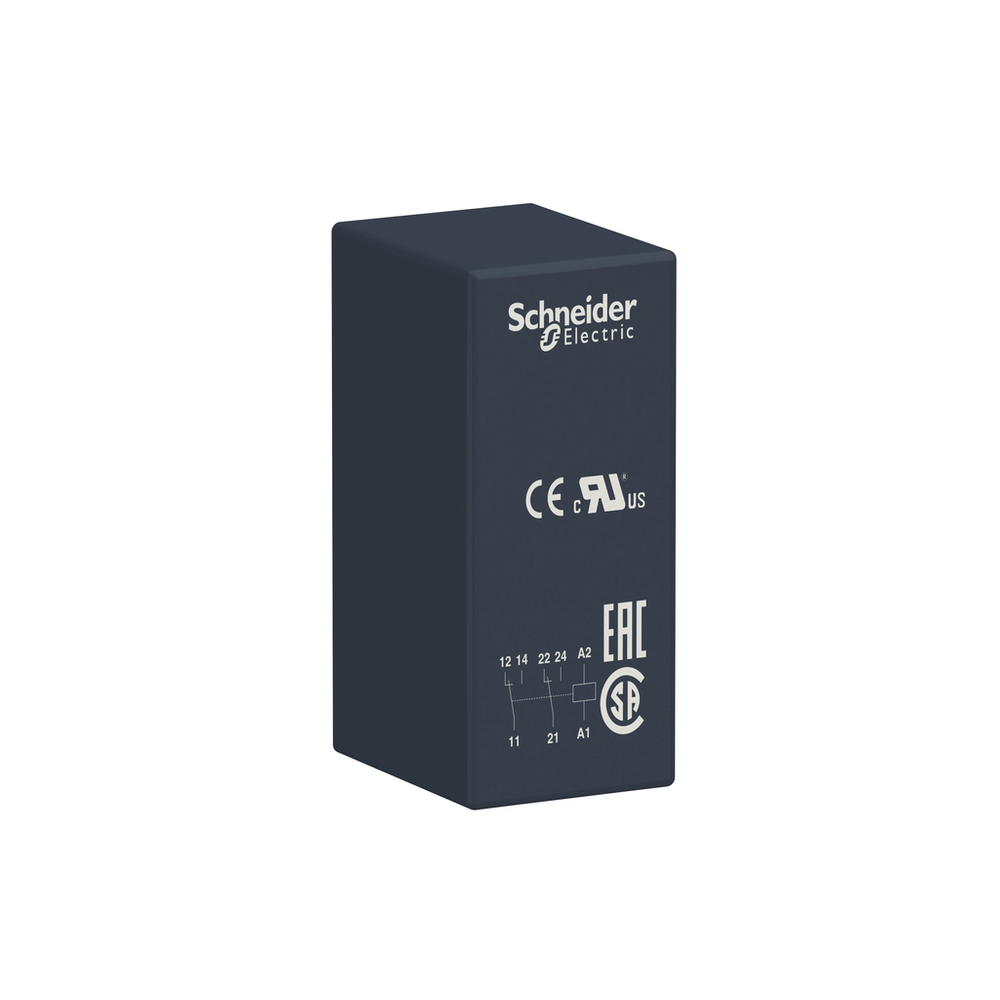

Schneider Electric RSB2A080FD
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Harmony RSB interfacing plug-in relay has a control coil voltage of 110V DC and has 2 changeover contacts double pole double throw with a rating of 8A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. 0 0 0 0 0 0 0 0 0 0 0 0interface plug-in relay, Harmony electromechanical relays, 8A, 2CO, 110V DC
Schneider Electric RSB2A080FD is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Average Coil Consumption
- 0.45 W DC
- Average Resistance
- 30250 Ohm AC 20 °C +/- 10 %
- Contacts Material
- silver alloy (AgNi)
- Device Presentation
- complete product
- Drop-Out Voltage Threshold
- >= 0.1 Uc DC
- Electrical Durability
- 100000 cycles, 8 A at 250 V, AC-1 NO || 100000 cycles, 4 A at 250 V, AC-1 NC
- [Ie] Rated Operational Current
- 4 A AC-1/DC-1) NC IEC || 8 A AC-1/DC-1) NO IEC
- Load Current
- 8 A 250 V AC || 8 A 28 V DC
- Marking
- CE
- Maximum Switching Capacity
- 2000 VA/224 W
- Maximum Switching Voltage
- 300 V DC IEC
- Mechanical Durability
- 30000000 cycles
- Minimum Switching Capacity
- 120 mW 10 mA, 12 V
- Minimum Switching Current
- 10 mA
- Net Weight
- 0.014 kg
- Operating Position
- any position
- Operating Rate
- <= 600 cycles/hour under load || <= 18000 cycles/hour no-load
- Operating Time
- 20 ms operating || 20 ms reset
- Protection Category
- RT I
- Safety Reliability Data
- B10d = 100000
- Sale Per Indivisible Quantity
- 10
- Shape Of Pin
- flat (PCB type)
- Switching Voltage
- 12 V
- Test Levels
- level A group mounting
- [Ue] Rated Operational Voltage
- 77...165 V DC
- [Uimp] Rated Impulse Withstand Voltage
- 3.6 kV IEC 61000-4-5
- [Ui] Rated Insulation Voltage
- 400 V IEC 60947
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -40-85 °C DC)
- Ambient Air Temperature For Storage
- -40-85 °C
- Dielectric Strength
- 1000 V AC between contacts || 2500 V AC between poles || 5000 V AC between coil and contact
- Ip Degree Of Protection
- IP40 conforming to IEC 60529
- Product Certifications
- UL || CSA || EAC
- Shock Resistance
- 10 gn 11 ms) not operating IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27
- Standards
- IEC 61810-1 || CSA C22.2 No 14 || UL 508
- Vibration Resistance
- +/- 1 mm 10-55 Hz)IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP1406006EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Contact Operation
- standard
- Contacts Type And Composition
- 2 C/O
- Control Type
- without push-button
- Device Short Name
- RSB
- [Ithe] Conventional Enclosed Thermal Current
- 8 A -40-40 °C
- Product Or Component Type
- plug-in relay
- Range Of Product
- Harmony Electromechanical Relays
- Series Name
- interface relay
- Status Led
- without
- [Uc] Control Circuit Voltage
- 110 V DC
