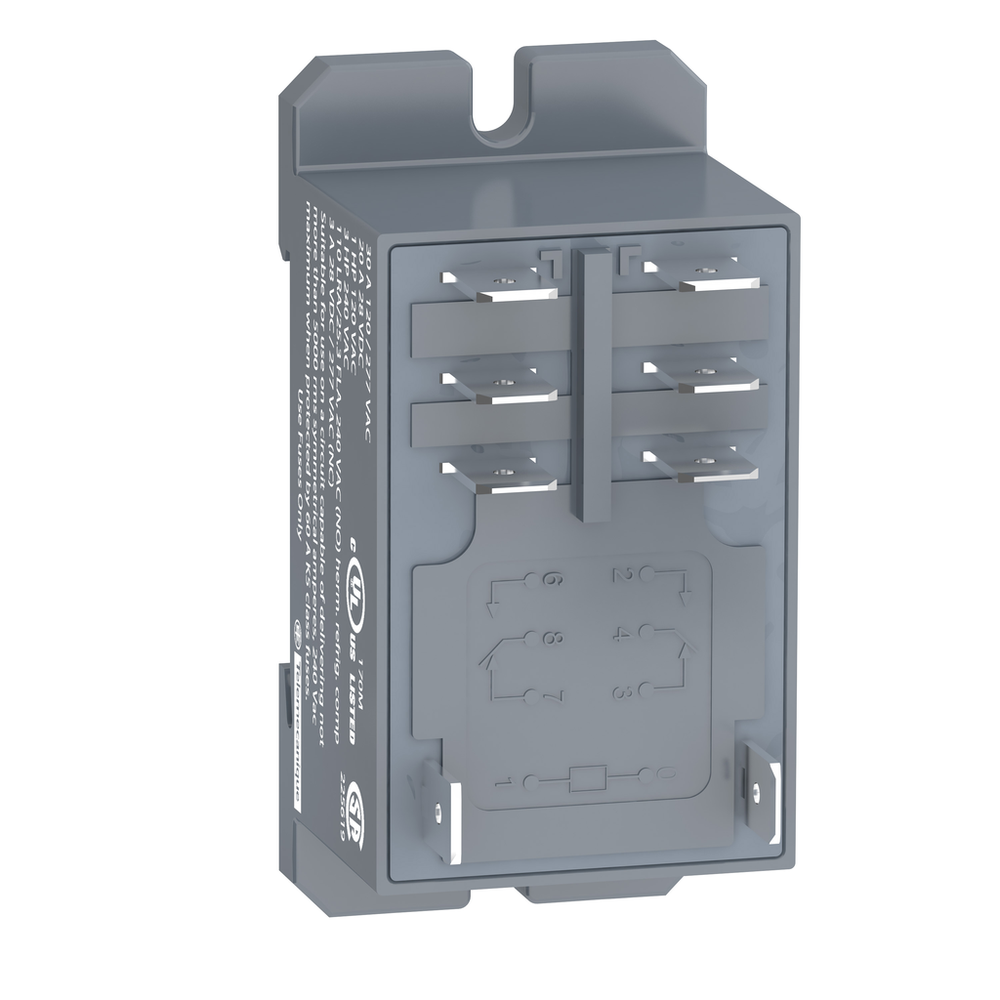

Schneider Electric RPF2BBD
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Harmony RPF panel mounting power relay with fast-on terminals has a coil control voltage of 24V DC and has 2 normally open contacts with a rating of 30A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). 0 0 0 0 0 0 0 0 0 0 0 0 0power relay, Harmony electromechanical relays, DIN rail or panel mount relay, 30A, 2CO, 24V DC
Schneider Electric RPF2BBD is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Average Consumption
- 1.7 W
- Average Resistance
- 350 Ohm at 20 °C +/- 10 %
- Cad Overall Depth
- 39.2 mm
- Cad Overall Height
- 68.5 mm
- Cad Overall Width
- 33.7 mm
- Control Circuit Voltage Limits
- 19.2...26.4 V
- Device Presentation
- complete product
- Drop-Out Voltage Threshold
- >= 0.1 Uc
- Electrical Durability
- 100000 cycles resistive
- [Ie] Rated Operational Current
- 30 A 277 V AC) NO UL || 20 A 28 V DC) NO UL || 30 A 250 V AC) NO IEC || 25 A 28 V DC) NO IEC || 3 A 277 V AC) NC UL || 3 A 28 V DC) NC UL || 3 A 250 V AC) NC IEC || 3 A 28 V DC) NC IEC
- Maximum Switching Capacity
- 7500 VA/700 W
- Maximum Switching Voltage
- 250 V IEC
- Mechanical Durability
- 5000000 cycles
- Minimum Switching Capacity
- 6000 mW 500 mA / 12 V NO || 170 mW 10 mA / 6 V NC
- Mounting Support
- DIN rail || panel
- Net Weight
- 0.082 kg
- Operating Position
- any position
- Operating Rate
- <= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
- Operating Time
- 25 ms
- Protection Category
- RT II
- Reset Time
- 25 ms
- Safety Reliability Data
- B10d = 100000
- Test Levels
- level A group mounting
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV 1.2/50 µs
- [Ui] Rated Insulation Voltage
- 250 V IEC || 300 V UL
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -40-55 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Dielectric Strength
- 2000 V AC between poles with basic || 4000 V AC between coil and contact with reinforced || 1500 V AC between contacts with micro disconnection
- Ip Degree Of Protection
- IP40 conforming to IEC 60529
- Pollution Degree
- 3
- Product Certifications
- UL || GOST || CSA || CE
- Shock Resistance
- 10 gnin operation || 30 gnnot operating
- Standards
- CSA C22.2 No 14 || UL 508 || IEC 61810-1
- Vibration Resistance
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 10 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP130203EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Contacts Material
- silver tin oxide
- Contacts Type And Composition
- 2 C/O
- Control Type
- without lockable test button
- Device Short Name
- RPF
- [Ithe] Conventional Enclosed Thermal Current
- 25 A -40-55 °C relays side by side without a gap || 30 A -40-55 °C 13 mm gap between two relays
- Load Current
- 25 A 28 V DC || 30 A 250 V AC
- Product Or Component Type
- DIN rail/panel mount relay
- Range Of Product
- Harmony Electromechanical Relays
- Series Name
- Power
- Shape Of Pin
- flat
- [Uc] Control Circuit Voltage
- 24 V DC
- Utilisation Coefficient
- 10 %
