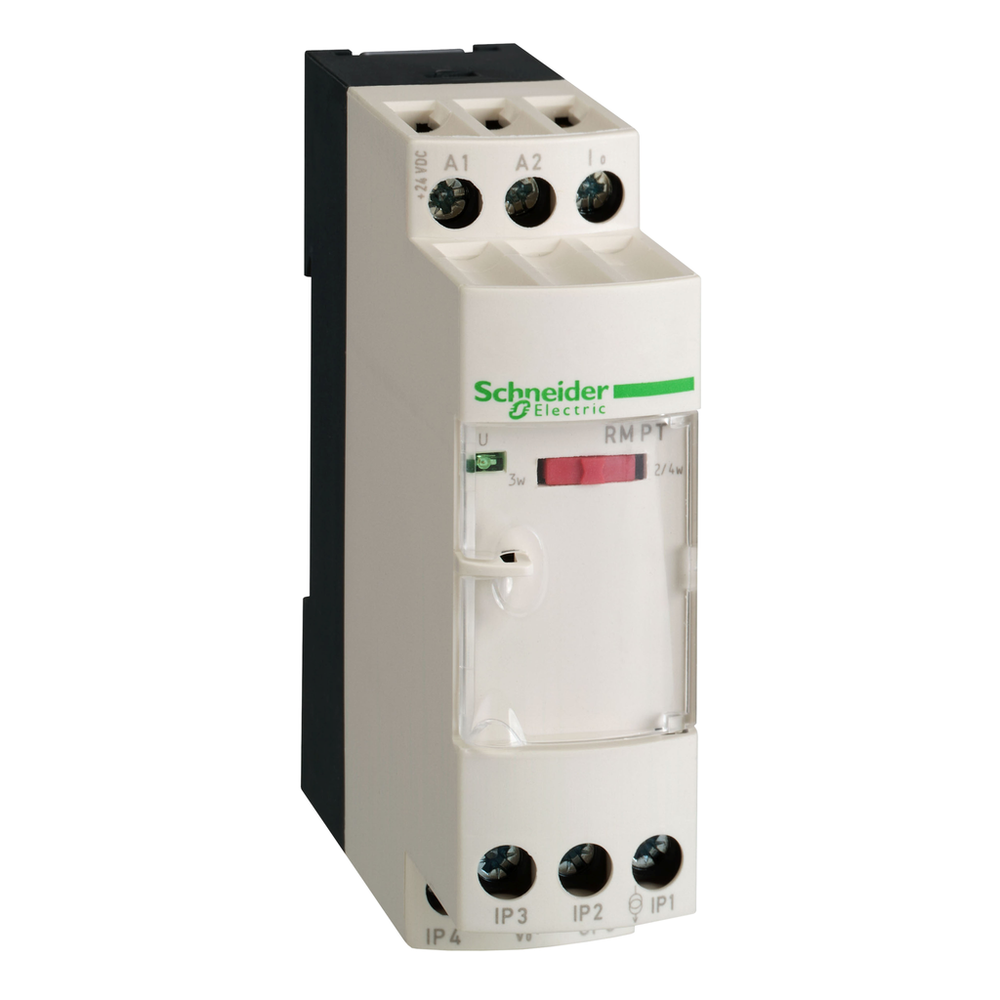

Schneider Electric RMPT50BD
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Harmony Analog temperature transmitter provides a versatile interface for your machines. It has a reverse polarity protection, a short-circuit protection and an overvoltage protection. 0 It is dust resistant, impact resistant and vibration resistant, thanks to its IP20 and IP50, making it ideal for operations in harsh environments. The product is a converter for Universal Pt100 probes with 0-250 °C/32-482 °F analogue input type. 0 0 0 0 0 0 0 0 0 0 0 0 0 0Converter for Universal Pt100 probes, Harmony Analog, temperature transmitter, 0...250 degree COr 32...482 degree F
Schneider Electric RMPT50BD is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Analogue Output Current
- -30-0 mA no input or input wire broken || 22-30 mA no input or input wire broken
- Analogue Output Voltage
- -15...-11 V no input or input wire broken || 11...15 V no input or input wire broken
- Clamping Connection Capacity
- 2 x 1.5 mm² || 1 x 2.5 mm²
- Current Consumption
- <= 40 mA voltage output || <= 60 mA current output
- Fixing Mode
- clip-on 35 mm symmetrical DIN rail) || fixed mounting plate)
- Local Signalling
- for power ON LED (green)
- Marking
- CE
- Maximum Wiring Resistance
- 0.2 Ohm 2 wires
- Measurement Error
- +/- 0.5 % of full scale 3 or 4 wires)20 °C || +/- 1 % of full scale 2 wires)20 °C || +/- 10 % of full scale20 °C electromagnetic interference of 10 V/m)
- Net Weight
- 0.12 kg
- Protection Type
- reverse polarity protection on output || short-circuit protection on output || reverse polarity protection on power supply || overvoltage protection on output (+/- 30 V)
- Repeat Accuracy
- +/- 0.2 % full scale 20 °C || +/- 0.6 % full scale 60 °C
- Safety Reliability Data
- B10d = 30437 || MTTFd = 32.9 years
- Surge Withstand
- 0.5 kV 1.2/50 µs IEC 61000-4-5
- Temperature Coefficient
- 150 ppm/°C
- Tightening Torque
- 0.6-1.1 N.m
- [Ui] Rated Insulation Voltage
- 2000 V
- [Us] Rated Supply Voltage
- 24 V DC non isolated +/- 20 %
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 0-50 °C mounting side by side || 0-60 °C 2 cm spacing
- Ambient Air Temperature For Storage
- -40-85 °C
- Disturbance Radiated/Conducted
- CISPR 11 || CISPR 22 group 1 - class B
- Electromagnetic Compatibility
- electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 || electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2
- Fire Resistance
- 850 °C IEC 60695-2-1 || 850 °C UL
- Ip Degree Of Protection
- IP20 terminal block) || IP50 housing)
- Pollution Degree
- 2 IEC 60664-1
- Product Certifications
- CSA || UL || GL
- Resistance To Fast Transients
- 1 kV IEC 61000-4-4 on input-output) || 2 kV IEC 61000-4-4 on power supply)
- Shock Resistance
- 50 gn 11 ms IEC 60068-2-27
- Standards
- EN/IEC 60947-1 || EN/IEC 60584-1 || DIN 43760 || EN/IEC 60751
- Vibration Resistance
- 5 gn 10-100 Hz)IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1607005EN
- Environmental Disclosure
- ENVPEP1607005EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Analogue Input Type
- temperature probe 0...250 °C/32...482 °F Pt 100 2, 3 or 4 wires
- Analogue Output Type
- current 0...20 mA <= 500 Ohm || current 4...20 mA <= 500 Ohm || voltage 0...10 V >= 100 kOhm
- Product Or Component Type
- converter for Universal Pt100 probes
- Range Of Product
- Harmony Analog
