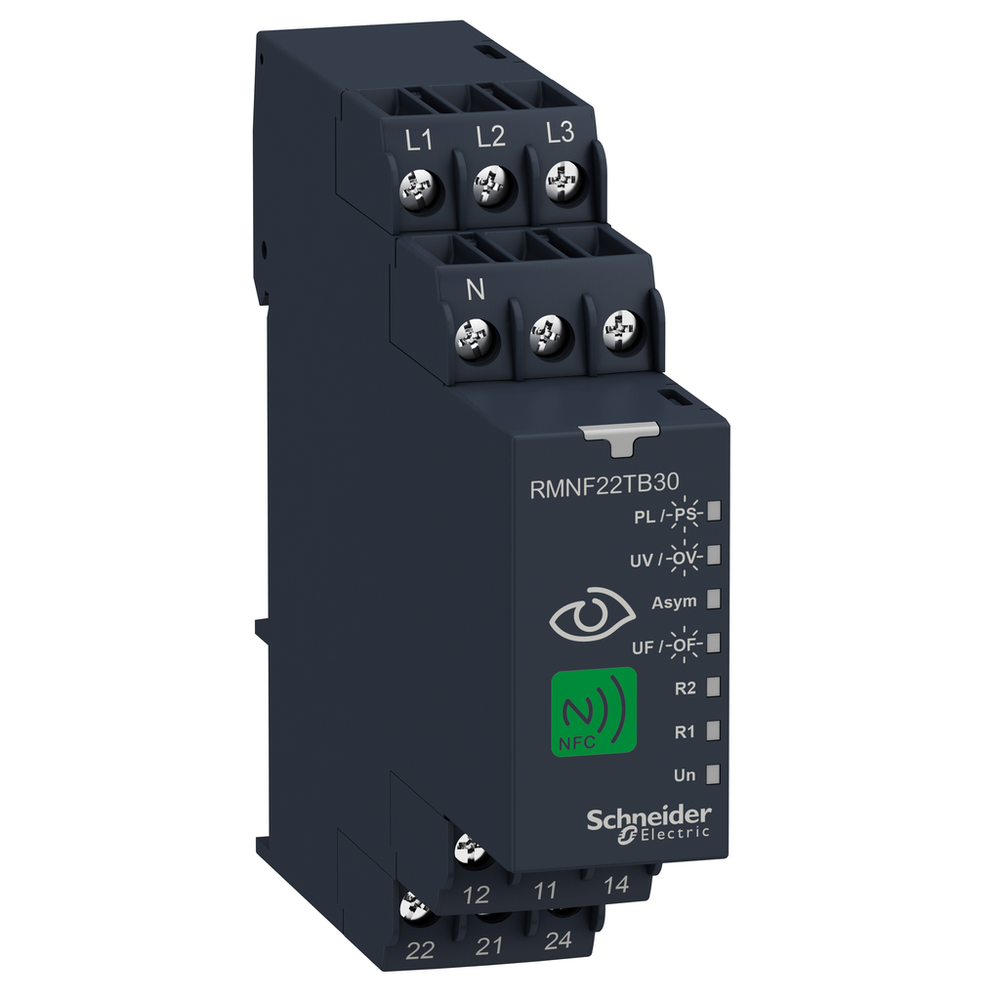

Schneider Electric RMNF22TB30

Complementary

• Alarm Threshold
  • 166...576 V adjustable overvoltage and undervoltage detection (line to line); || 96...332 V adjustable overvoltage and undervoltage detection (line to neutral); || 5...150 V adjustable asymmetry; || 45...66 Hz adjustable overfrequency or underfrequency;
• Connections - Terminals
  • screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) flexible with cable end || screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) flexible with cable end
• Contacts Material
  • cadmium free
• Contacts Type And Composition
  • 2 C/O
• Depth
  • 99 mm
• Dielectric Test Voltage
  • 2.5 kV AC 50 Hz, 1 min IEC 60255-27
• Electrical Durability
  • 100000 cycles
• Height
  • 90 mm
• Housing Material
  • self-extinguishing plastic
• Hysteresis
  • 3-3 % fixed phase failure detection
• Insulation Resistance
  • > 100 MOhm 500 V DC IEC 60255-27
• [Ith] Conventional Free Air Thermal Current
  • 8 A
• Local Signalling
  • Un, green LED steady)power ON || R1, amber LED steady)relay energised || R1, amber LED blinking)timing in progress || R2, amber LED steady)relay energised || R2, amber LED blinking)timing in progress || PL, red LED steady)alarm phase failure triggered || PS, red LED blinking)alarm phase sequence failure triggered || UV, red LED steady)alarm undervoltage failure triggered || OV, red LED blinking)alarm overvoltage failure triggered || UF, red LED steady)alarm underfrequency failure triggered || OF, red LED blinking)alarm overfrequency failure triggered || ASYM, red LED steady)alarm asymmentry failure triggered
• Maximum Measuring Cycle
  • 150 ms measurement cycle as true rms value
• Maximum Operating Frequency
  • 13.56 MHz
• Maximum Switching Current
  • 8 A AC
• Maximum Switching Voltage
  • 250 V AC
• Measurement Error
  • < 0.05 %/Hz with frequency variation || < 0.05 %/°C with temperature variation
• Mechanical Durability
  • 10000000 cycles
• Minimum Switching Current
  • 100 mA 6 V
• Mounting Position
  • any position
• Mounting Support
  • 35 mm DIN rail conforming to IEC 60715
• Net Weight
  • 0.125 kg
• Nominal Power
  • 0.0002 mW
• On-Load Factor
  • 100 %
• Output Contacts
  • 2 C/O
• Power Consumption In Va
  • 4-4 VA 480 V AC 60 Hz
• Repeat Accuracy
  • +/- 0.5 % input circuit || +/- 3 % time delay
• Reset Time
  • 1500 ms at maximum voltage
• Response Time
  • <= 300 ms
• Run-Up Delay At Power-Up
  • 650 ms
• Setting Accuracy Of The Switching Threshold
  • +/- (1.5 % + 1 V)
• Setting Accuracy Of Time Delay
  • +/- 3 % 10 s...60 min || +/- 300 ms 0...10 s
• Supply Frequency
  • 50...60 Hz +/- 10 %
• Supply Voltage Limits
  • 166.4-576 V AC line to line || 96-332.4 V AC line to neutral
• Tightening Torque
  • 0.6-1 N.m IEC 60947-1 || 5.3-8.8 lbf.in IEC 60947-1
• [Uimp] Rated Impulse Withstand Voltage
  • 4 kV 1.2/50 µs
• [Ui] Rated Insulation Voltage
  • 400 V
• [Us] Rated Supply Voltage
  • 208...480 V AC line to line || 120...277 V AC line to neutral
• Utilisation Category
  • AC-15 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || AC-1 IEC 60947-4-1 || DC-1 IEC 60947-4-1
• Width
  • 22.5 mm

Environment

• Ambient Air Temperature For Operation
  • -20-60 °C
• Ambient Air Temperature For Storage
  • -40-70 °C
• Directives
  • 2014/30/EU - electromagnetic compatibility || 2014/35/EU - low voltage directive || 2014/53/EU - radio equipment directive
• Electromagnetic Compatibility
  • voltage dips and interruptions immunity test - test level: 70 % (25/30 cycles) conforming to IEC 61000-4-11 || electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 || conducted and radiated emissions class B group 1 conforming to CISPR 11 || conducted and radiated emissions class B conforming to CISPR 22 || radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3 || immunity for industrial environments conforming to IEC 61000-6-2 || 1 MHz damped oscillating wave - test level: 2.5 kV CM, 1 kV DM criteria B conforming to IEC 61000-4-18 || voltage dips and interruptions immunity test - test level: 0 % (0.5...25 cycles) conforming to IEC 61000-4-11 || magnetic field at power frequency - test level: 30 A/m (continuous)-300 A/m (1-3 s) level 4 conforming to IEC 61000-4-8 || surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5 || immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1 || voltage dips and interruptions immunity test - test level: 40 % (10/12 cycles) conforming to IEC 61000-4-11 || voltage interruptions - test level: 0 % criteria C (250/300 cycles) conforming to IEC 61000-4-29 || electrical fast transient/burst immunity test - test level: 4 kV criteria B (direct) conforming to IEC 61000-4-4 || emission standard for industrial environments conforming to IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 || surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5 || electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 || conducted RF disturbances level 3 conforming to IEC 61000-4-6
• Immunity To Microbreaks
  • 10 ms
• Ip Degree Of Protection
  • IP20 IEC 60529 terminals) || IP40 IEC 60529 housing) || IP40 IEC 60529 front panel)
• Overvoltage Category
  • III IEC 60664-1 || III UL 508
• Pollution Degree
  • 3 IEC 60664-1 || 3 UL 508
• Product Certifications
  • CE || UL || CSA || CCC || EAC || RCM
• Relative Humidity
  • 93-97 % 25-55 °C IEC 60068-2-30
• Shock Resistance
  • 15 gn 11 ms) not in operation IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27
• Standards
  • IEC 60255-1
• Vibration Resistance
  • 0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6 || 1 gn 58.1-150 Hz) not in operation IEC 60068-2-6 || 0.035 mm 10-58.1 Hz) in operation IEC 60068-2-6 || 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • X
• Circularity Profile
  • ENVEOLI1504008EN
• Environmental Disclosure
  • ENVPEP1504008EN
• Eu Rohs Directive
  • Pro-active compliance (Product out of EU RoHS legal scope)
• Mercury Free
  • Yes
• Reach Regulation
  • Reference contains Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Sustainable Offer Status
  • Green Premium product
• Weee
  • The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Specifications

• Operating System
  • Android
• Phase
  • 3 phase
• Product Compatibility
  • NFC enabled mobile device
• Product Or Component Type
  • 3-phase control relay
• Range Of Product
  • Harmony Control Relays
• Relay Monitored Parameters
  • phase sequence || phase failure detection || overvoltage detection || undervoltage detection || overfrequency and underfrequency || asymmetry
• Relay Name
  • RMNF22
• Relay Type
  • control relay
• Software Designation
  • Zelio NFC downloadable from Google Play store)
• Software Version
  • V4.4 and above
• Switching Capacity In Va
  • 2000 VA
• Time Delay Type
  • on-delay 0.1 s...60 min || off-delay 0.1 s...60 min
