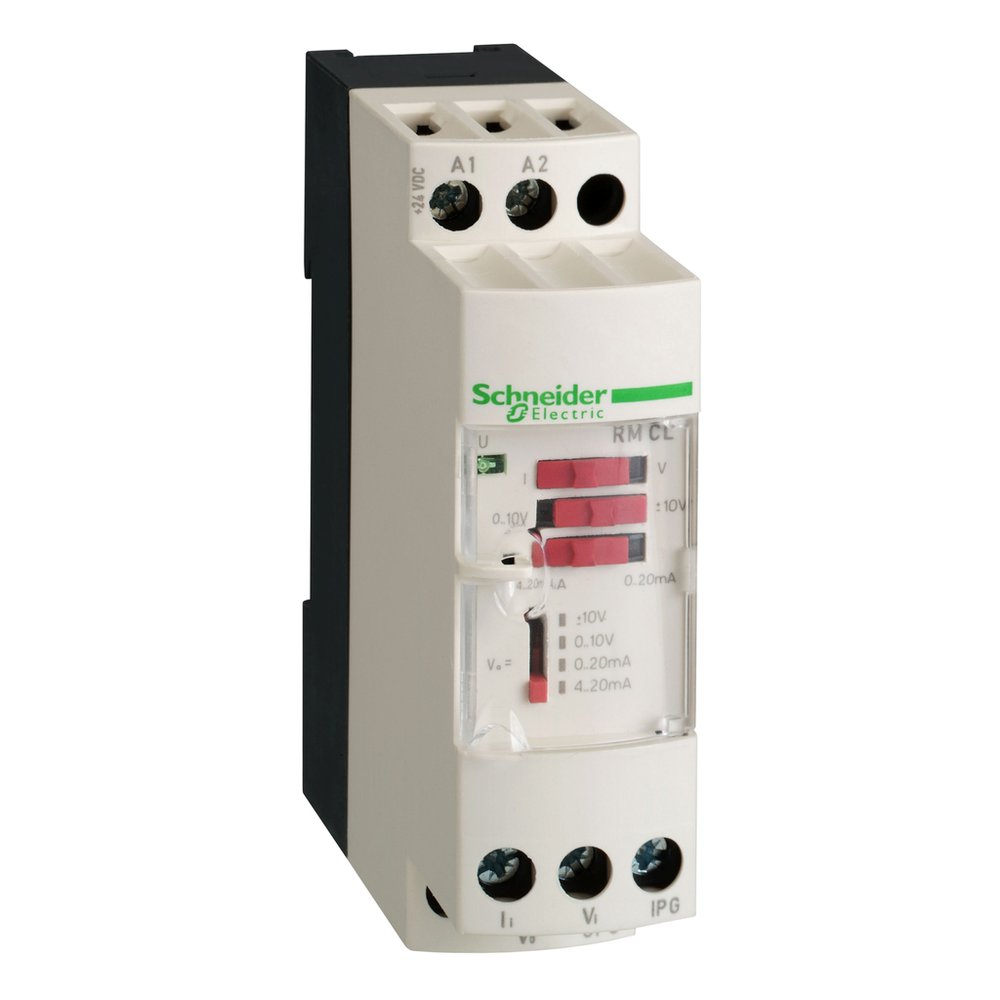

Schneider Electric RMCL55BD
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This voltage/current converter is part of the range of Harmony Analog. It allows conversion of the most common signals. Its supply voltage is 24V DC, isolated. It features four inputs with voltage/current range of 0V to 10V, +/- 10V, 0mA to 20mA, and 4mA to 20mA. It has four outputs with a switchable voltage/current range of 0V to 10V, +/- 10V, 0mA to 20mA, and 4mA to 20mA. It also allows the connection distance between a sensor and the measurement acquisition device to be increased. 0 It weighs 0.120Kg. 0 0 Conforming to IEC standards, UL and CSA certified, this converter is suitable for universal use. 0 0 0 0 Quick and intuitive setting, easy to use with fixed input and output values according to the market needs. The settings are secure with sealable protective cover. 0Voltage or current converter, Harmony Analog, Isolated 0...20mA
Schneider Electric RMCL55BD is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Analogue Output Current
- 22-30 mA 0...20 mA no input or input wire broken voltage || 22-30 mA 4...20 mA no input or input wire broken voltage || -30-0 mA 0...20 mA no input or input wire broken current || 4-30 mA 4...20 mA no input or input wire broken current
- Analogue Output Voltage
- 11...15 V - 10...10 V no input or input wire broken voltage || 11...15 V 0...10 V no input or input wire broken voltage || -15...0 V 0...20 mA no input or input wire broken current || -15...0 V 4...20 mA no input or input wire broken current
- Clamping Connection Capacity
- 2 x 1.5 mm² || 1 x 2.5 mm²
- Current Consumption
- <= 70 mA voltage output || <= 90 mA current output
- Fixing Mode
- by screws mounting plate) || clip-on 35 mm symmetrical DIN rail)
- Local Signalling
- for power ON LED (green)
- Marking
- CE
- Measurement Error
- +/- 10 % of full scale 20 °C electromagnetic interference of 10 V/m) || +/- 1 % of full scale 20 °C
- Net Weight
- 0.12 kg
- Protection Type
- reverse polarity protection on output || short-circuit protection on output || overvoltage protection on output (+/- 30 V)
- Repeat Accuracy
- +/- 0.2 % full scale 20 °C || +/- 0.6 % full scale 60 °C
- Safety Reliability Data
- B10d = 20000 || MTTFd = 21.6 years
- Surge Withstand
- 0.5 kV 1.2/50 µs IEC 61000-4-5
- Temperature Coefficient
- 200 ppm/°C
- Tightening Torque
- 0.6-1.1 N.m
- [Ui] Rated Insulation Voltage
- 2 kV
- [Us] Rated Supply Voltage
- 24 V DC +/- 20 %, isolated
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 0-50 °C mounting side by side || 0-60 °C 2 cm spacing
- Ambient Air Temperature For Storage
- -40-85 °C
- Disturbance Radiated/Conducted
- CISPR 22 group 1 - class B || CISPR 11
- Fire Resistance
- 850 °C IEC 60695-2-1 || 850 °C UL
- Ip Degree Of Protection
- IP20 terminal block) || IP50 housing)
- Pollution Degree
- 2 IEC 60664-1
- Product Certifications
- UL || GL || CSA
- Resistance To Electrostatic Discharge
- 6 kV in contact)IEC 61000-4-2 level 3 || 8 kV in air)IEC 61000-4-2 level 3
- Resistance To Fast Transients
- 1 kV IEC 61000-4-4 on input-output) || 2 kV IEC 61000-4-4 on power supply)
- Shock Resistance
- 50 gn 11 ms IEC 60068-2-27
- Standards
- IEC 60947-1 || IEC 60584-1
- Vibration Resistance
- 5 gn 10-100 Hz)IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1607005EN
- Environmental Disclosure
- ENVPEP1607005EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Analogue Input Type
- current 0...20 mA || current 4...20 mA || voltage +/- 10 V DC || voltage 0...10 V DC
- Analogue Output Type
- current 0...20 mA <= 500 Ohm switchable || current 4...20 mA <= 500 Ohm switchable || voltage +/- 10 V >= 100 kOhm switchable || voltage 0...10 V >= 100 kOhm switchable
- Product Or Component Type
- voltage/current converter
- Range Of Product
- Harmony Analog
