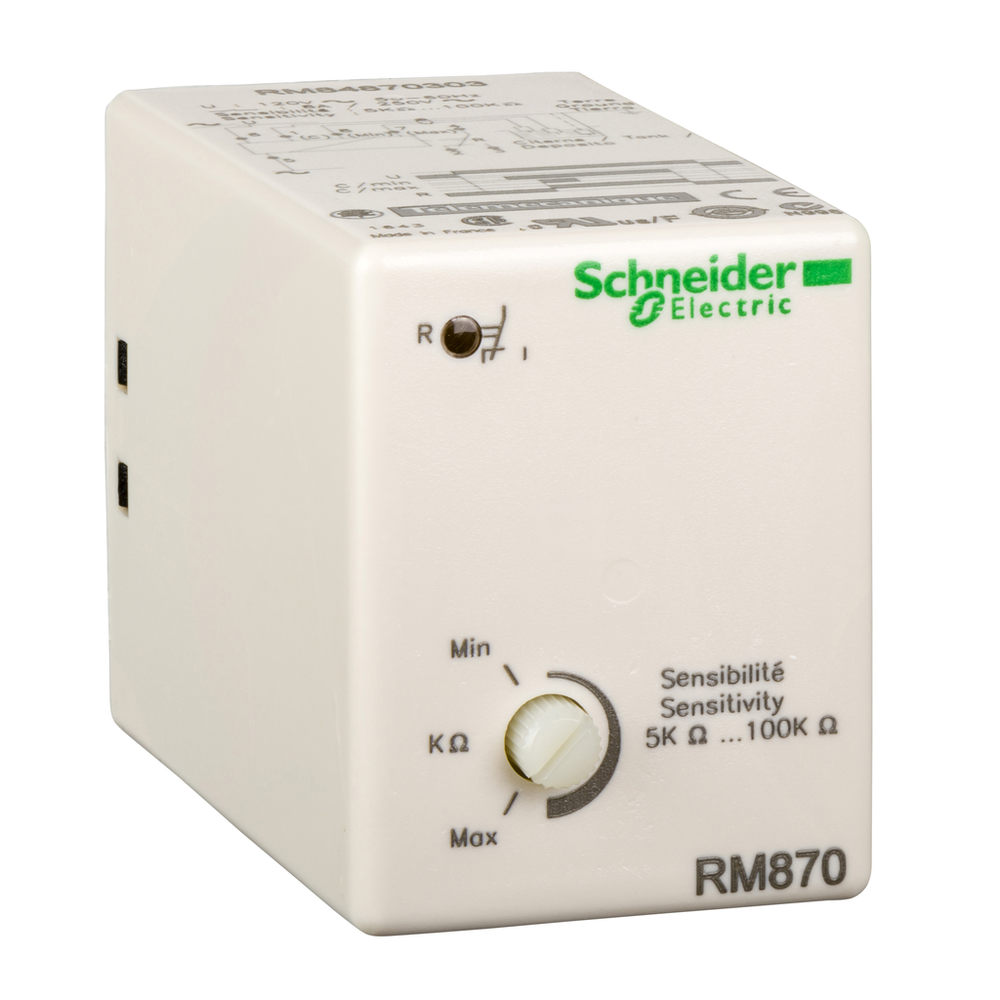

Schneider Electric RM84870301
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
liquid level control relay RM84 - plug-in - 8 pins - 24 V AC
Schneider Electric RM84870301 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Contacts Type And Composition
- 1 C/O relay output, AgCdO || 1 C/O
- Isolation Voltage
- 2500 V AC contacts and electrodes from the supply
- Maximum Cable Capacity
- 0 mF
- Maximum Electrode Current
- 1 mA 50/60 Hz
- Maximum Electrode Voltage
- 24 V AC 50/60 Hz
- Maximum Output Current
- 8 mA AC AC-1 resistive
- Measurement Accuracy
- 0...30 %
- Pin Number
- 8
- Response Time
- 300 ms high level || 500 ms low level
- Sensitivity Scale
- 5...100 kOhm
- [Us] Rated Supply Voltage
- 24 V AC 50/60 Hz
- Voltage Range
- 0.85...1.15 x Un
- Width
- 39 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -20-60 °C
- Ambient Air Temperature For Storage
- -30-70 °C
- Product Certifications
- CSA || cULus
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Maximum Power Consumption In Va
- 3 VA
- Product Or Component Type
- industrial measurement and control relays
- Range Of Product
- Harmony Relay
- Relay Monitored Parameters
- detection by resistive probes
- Relay Name
- RM84870
- Relay Type
- plug-in liquid level control relay
