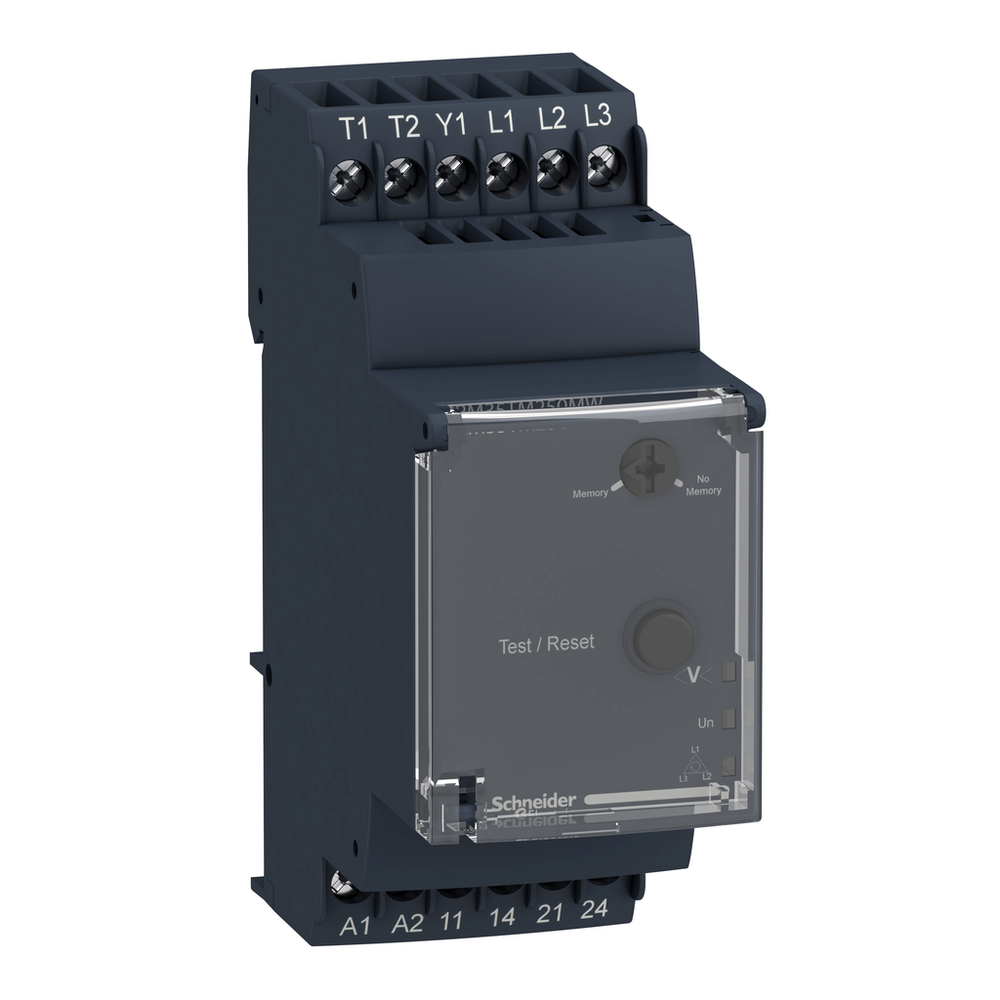

Schneider Electric RM35TM250MW
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Harmony RM35-T control relay allows monitoring of motor voltage and temperature control. This modular control relay is ideal for monitoring of electrical values with voltage and temperature variation in control of moving equipment's. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 03-phase control relay, Harmony Control Relays, 5A , 2NO, 24..240V AC DC
Schneider Electric RM35TM250MW is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
- Control Circuit Frequency
- 50...60 Hz +/- 10 %
- Electrical Durability
- 10000 cycles
- Housing Material
- self-extinguishing plastic
- Insulation Resistance
- > 500 MOhm 500 V DC between supply and relay output IEC 60255-5 || > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1 || > 1 MOhm 500 V DC between supply and measurement IEC 60255-5 || > 500 MOhm 500 V DC between supply and relay output IEC 60664-1 || > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5 || > 1 MOhm 500 V DC between supply and measurement IEC 60664-1
- Local Signalling
- for power ON LED (green) || for phase of relay (R2) LED (yellow) || for temperature of relay (R1) LED (yellow)
- Marking
- CE
- Maximum Power Consumption In W
- 0.5 W DC
- Maximum Resistance
- 1500 Ohm temperature sensor 20 °C
- Maximum Switching Current
- 5 A AC || 5 A DC
- Maximum Switching Voltage
- 250 V AC || 250 V DC
- Measurement Voltage Limits
- 176-528 V AC
- Mechanical Durability
- 30000000 cycles
- Minimum Switching Current
- 10 mA 5 V DC
- Mounting Support
- 35 mm symmetrical DIN rail conforming to IEC 60715
- Net Weight
- 0.13 kg
- Nominal Output Current
- 5 A
- Operating Position
- any position without derating
- Operating Rate
- <= 360 operations/hour full load
- Output Contacts
- 2 NO
- Overvoltage Category
- III IEC 60664-1
- Power Consumption In Va
- 0-4 VA 24...240 V AC
- Reset Threshold
- 1650 Ohm +/- 10 % temperature control circuit
- Reset Time
- 10000 ms output
- Resistance Across Terminals
- 602 mOhm
- Response Time
- > 50 ms (input Y1 (contact Y1-T1) and push-button)
- Run-Up Delay At Power-Up
- 500 ms
- Short-Circuit Current
- 0.007 A temperature sensing circuit T1-T2 terminals short circuited)
- Supply Frequency
- 50/60 Hz +/- 10 %
- Supply Voltage Limits
- 20.4-264 V AC || 20.4-264 V DC
- Tightening Torque
- 0.6-1 N.m IEC 60947-1
- Tripping Threshold
- 3100 Ohm +/- 10 % temperature control circuit
- [Uc] Control Circuit Voltage
- <= 3.6 V temperature control circuit T1-T2 terminals open)
- [Ui] Rated Insulation Voltage
- 400 V IEC 60664-1
- Utilisation Category
- AC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1
- Voltage Range
- 176...528 V
- Width
- 35 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -20-50 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Dielectric Test Voltage
- 2 kV AC 50 Hz, 1 min
- Directives
- 73/23/EEC - low voltage directive || 89/336/EEC - electromagnetic compatibility
- Electromagnetic Compatibility
- emission standard for industrial environments conforming to IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 || immunity for industrial environments conforming to IEC 61000-6-2
- Immunity To Microbreaks
- 20 ms 20.4 V
- Ip Degree Of Protection
- IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)
- Non-Dissipating Shock Wave
- 4 kV
- Pollution Degree
- 3 IEC 60664-1
- Product Certifications
- CSA || C-tick || GOST || UL || GL
- Relative Humidity
- 95-95 % 55-55 °C IEC 60068-2-30
- Shock Resistance
- 15 gn 11 ms IEC 60255-21-1
- Standards
- IEC 60255-6 || IEC 60034-11-2
- Vibration Resistance
- 0.35 mm 5-57.6 Hz)IEC 60068-2-6 || 1 gn 57.6-150 Hz)IEC 60255-21-1
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1504008EN
- Environmental Disclosure
- ENVPEP1504008EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Contacts Type And Composition
- 2 NO
- Measurement Range
- 208...480 V voltage AC || 0...20 Ohm short-circuit detection
- Product Or Component Type
- 3-phase control relay
- Product Specific Application
- for 3-phase supply
- Range Of Product
- Harmony Control Relays
- Relay Monitored Parameters
- phase failure detection || phase sequence || test/reset button || motor temperature via PTC probe || selection (with or without memory)
- Relay Name
- RM35TM
- Relay Type
- motor temperature control relay
- Switching Capacity In Va
- 1250 VA
- Time Delay Type
- fixed 0.3 s
- [Uc] Control Circuit Voltage
- 24...240 V
