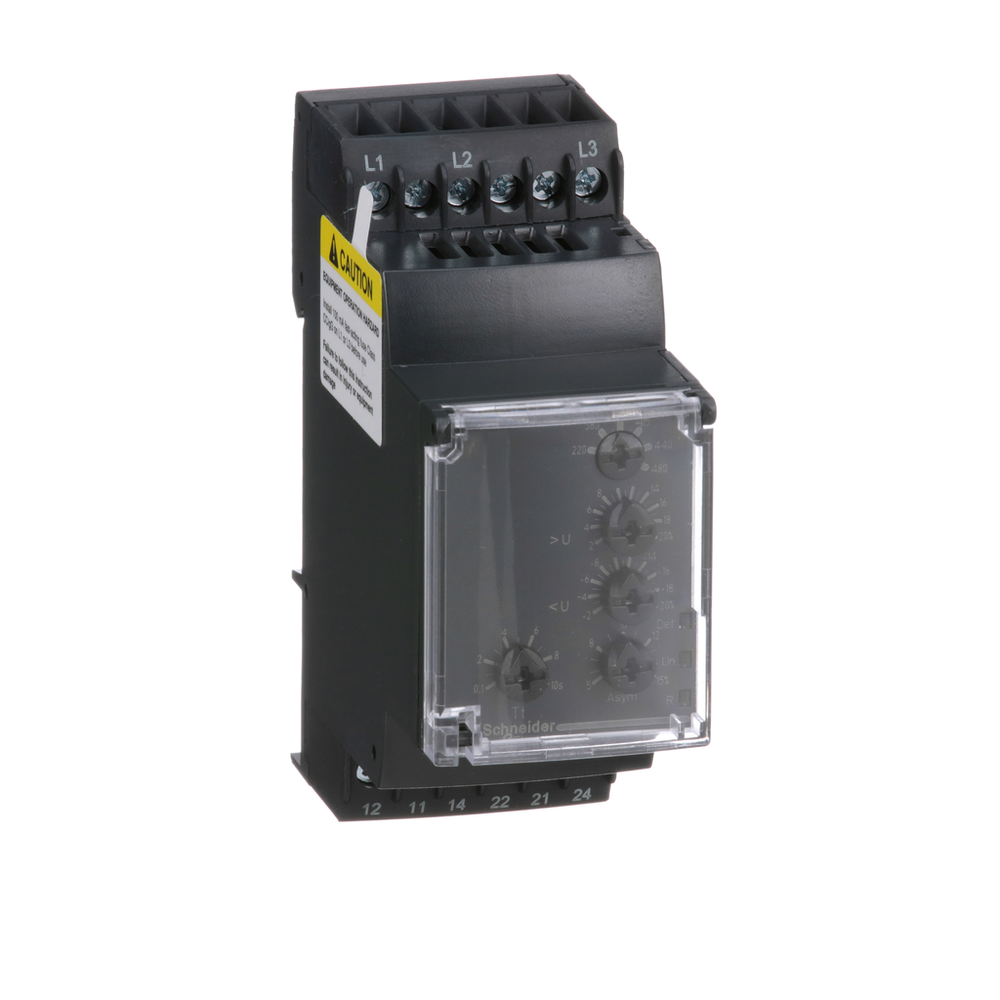

Schneider Electric RM35TF30
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Zelio Control Monitoring and Control Relays (RM17, RM22, RM35) monitor and detect abnormal operating conditions concerning phase ,current, voltage, frequency, speed, or temperature. The relays inform users of abnormal conditions and allow them to initiate the necessary corrective actions before serious and costly breakdown can occur. Zelio phase control relays detect all possible faults occurring in the phases. Zelio voltage and current control relays ensure your equipment is powered with proper values. Zelio frequency control relay monitors frequency variation from your power generation line. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Zelio pump control relay controls and protects your pump from dry running or overloading. Zelio speed control relay picks up the improper rhythm of your process. Zelio temperature control relay for lift application is a dedicated to elevator temperature monitoring (EN81). Zelio temperature control relays are dedicated to temperature regulation (heating, cooling or heating/cooling of processes). These Zelio relays are available in 17.5 mm, 22.5 mm or 35 mm wide housings and are DIN rail mounted. Applications for these Zelio relays include hoisting, construction cranes, harbor cranes, packaging, construction elevators, passenger elevators, escalators, textile, water and waste water. 0 0 0 0 0 0 0Zelio, 3 phase supply control relay, range 220 to 480 VAC, sequence, phase failure, phase imbalance, voltage
Schneider Electric RM35TF30 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Adjustment Of Asymmetry Threshold
- 5...15 % of Un selected
- Connections - Terminals
- screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
- Control Circuit Frequency
- 50...60 Hz +/- 10 %
- Control Circuit Voltage Limits
- 12 % + 10 % Un
- Electrical Durability
- 100000 cycles
- Housing Material
- self-extinguishing plastic
- Hysteresis
- 2-2 %
- Insulation Resistance
- > 500 MOhm 500 V DC IEC 60255-5 || > 500 MOhm 500 V DC IEC 60664-1
- Local Signalling
- for power ON LED (green) || for relay ON LED (yellow) || for fault LED (yellow)
- Marking
- CE
- Maximum Measuring Cycle
- 140 ms measurement cycle as true rms value
- Maximum Switching Current
- 5 A AC || 5 A DC
- Maximum Switching Voltage
- 250 V AC || 250 V DC
- Measurement Error
- < 1 % over the whole range with voltage variation || 0.05 %/°C with temperature variation
- Measurement Voltage Limits
- 176-528 V AC
- Mechanical Durability
- 30000000 cycles
- Minimum Switching Current
- 10 mA 5 V DC
- Mounting Support
- 35 mm symmetrical DIN rail conforming to IEC 60715
- Net Weight
- 0.13 kg
- Nominal Output Current
- 5 A
- Operating Position
- any position without derating
- Operating Rate
- <= 360 operations/hour full load
- Output Contacts
- 2 C/O
- Overvoltage Category
- III IEC 60664-1
- Power Consumption In Va
- 0-22 VA 400 V AC 50 Hz
- Repeat Accuracy
- 0.3 % time delay || 0.5 % input and measurement circuit
- Reset Time
- 1500 ms at 480 V
- Response Time
- < 200 ms (in the event of a fault)
- Run-Up Delay At Power-Up
- 650 ms
- Safety Reliability Data
- MTTFd = 399.5 years || B10d = 360000
- Supply Frequency
- 50/60 Hz +/- 10 %
- Supply Voltage Limits
- 194-528 V AC, 3 phase
- Threshold Adjustment Voltage
- -20...-2 % in the range 380...480 V AC || 2...20 % of Un selected || -12...-2 % in the range 220 V AC || +2...+20 % in the range 220...440 V AC || +2...+10 % in the range 480 V AC
- Tightening Torque
- 0.6-1 N.m IEC 60947-1
- [Ui] Rated Insulation Voltage
- 400 V IEC 60664-1
- Utilisation Category
- AC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1
- Voltage Detection Threshold
- < 194 V
- Voltage Range
- 220...480 V phase to phase
- Width
- 35 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -20-50 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Dielectric Test Voltage
- 2 kV AC 50 Hz, 1 min
- Directives
- 89/336/EEC - electromagnetic compatibility || 73/23/EEC - low voltage directive
- Electromagnetic Compatibility
- emission standard for industrial environments conforming to IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 || immunity for industrial environments conforming to IEC 61000-6-2
- Ip Degree Of Protection
- IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)
- Non-Dissipating Shock Wave
- 4 kV
- Pollution Degree
- 3 IEC 60664-1
- Product Certifications
- GL || UL || CSA || GOST || C-tick
- Relative Humidity
- 95-95 % 55-55 °C IEC 60068-2-30
- Shock Resistance
- 15 gn 11 ms IEC 60255-21-1
- Standards
- IEC 60255-1
- Vibration Resistance
- 0.35 mm 5-57.6 Hz)IEC 60068-2-6 || 1 gn 57.6-150 Hz)IEC 60255-21-1
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1504008EN
- Environmental Disclosure
- ENVPEP1504008EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Contacts Type And Composition
- 2 C/O
- Measurement Range
- 220...480 V voltage AC
- Product Or Component Type
- 3-phase control relay
- Product Specific Application
- for 3-phase supply
- Range Of Product
- Harmony Control Relays
- Relay Monitored Parameters
- undervoltage and overvoltage in window mode || phase sequence || phase failure detection || asymmetry
- Relay Name
- RM35TF
- Relay Type
- multifunction control relay
- Switching Capacity In Va
- 1250 VA
- Time Delay Type
- adjustable 0.1...10 s, +/- 10 % of the full scale value
- [Uc] Control Circuit Voltage
- 220...480 V
