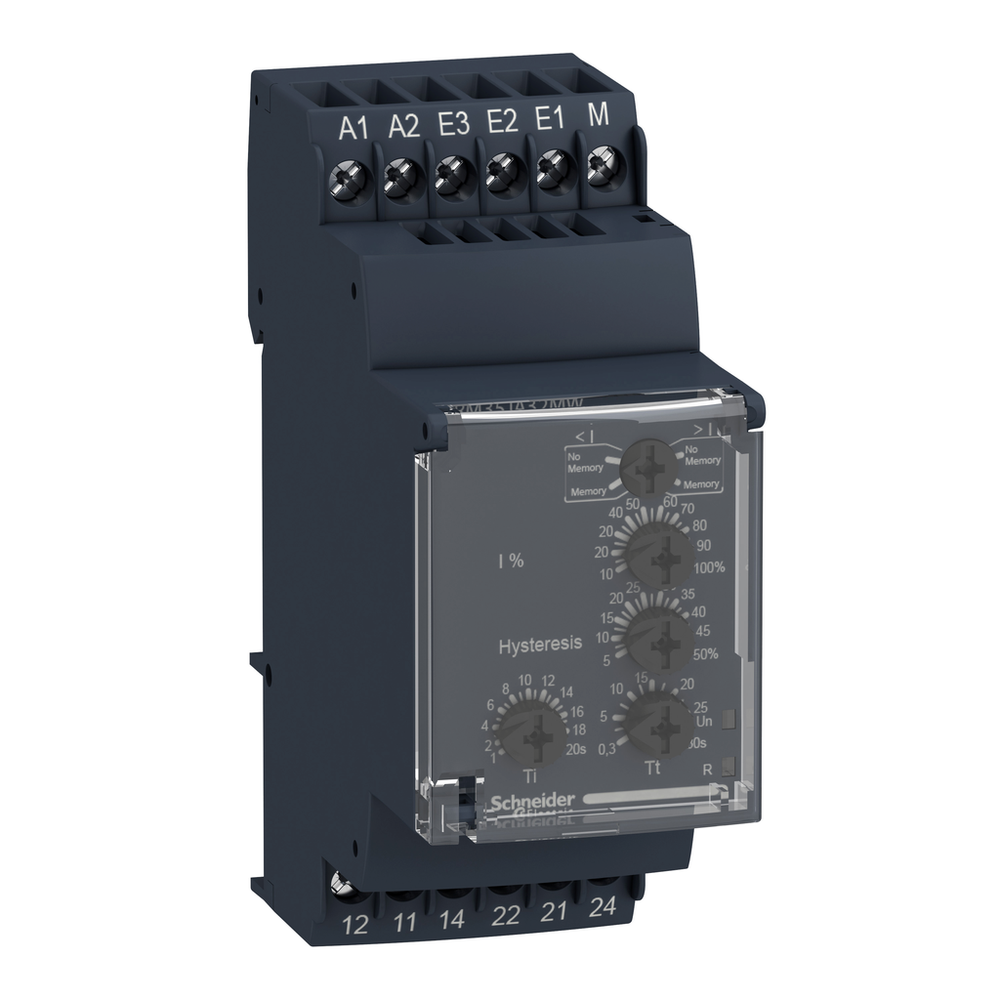

Schneider Electric RM35JA32MW
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Harmony RM35-JA relay allows monitoring of current control in single phase networks. This modular multi function single phase current control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0current control relay, Harmony Control Relays, 5A, 2CO, overcurrent or undercurrent detection, 0.15…15A, 24…240V AC DC
Schneider Electric RM35JA32MW is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
- Contacts Material
- cadmium free
- Control Circuit Frequency
- 40...70 Hz +/- 10 %
- Control Circuit Voltage Limits
- 15 % + 10 % Un
- Electrical Durability
- 100000 cycles
- Housing Material
- self-extinguishing plastic
- Hysteresis
- 5-50 % threshold setting
- Insulation Resistance
- > 500 MOhm 500 V DC between supply and relay output IEC 60255-5 || > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1 || > 1 MOhm 500 V DC between supply and measurement IEC 60255-5 || > 500 MOhm 500 V DC between supply and relay output IEC 60664-1 || > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5 || > 1 MOhm 500 V DC between supply and measurement IEC 60664-1
- Local Signalling
- for power ON LED (green) || for relay ON LED (yellow)
- Marking
- CE : EMC 89/336/EEC || CE : 73/23/EEC
- Maximum Measuring Cycle
- 30 ms measurement cycle as true rms value
- Maximum Power Consumption In W
- 0.6 W DC
- Maximum Switching Voltage
- 250 V AC/DC
- Measurement Accuracy
- +/- 10 % of the full scale value
- Measurement Error
- 0.05 %/°C with temperature variation || 1 by volt over the whole range with voltage variation
- Mechanical Durability
- 30000000 cycles
- Mounting Support
- 35 mm symmetrical DIN rail conforming to IEC 60715
- Net Weight
- 0.13 kg
- Nominal Output Current
- 5 A
- Operating Position
- any position without derating
- Operating Rate
- <= 360 operations/hour full load
- Output Contacts
- 2 C/O
- Overvoltage Category
- III IEC 60664-1
- Polarity
- no DC
- Repeat Accuracy
- +/- 0.5 % input and measurement circuit || +/- 2 % time delay
- Reset Time
- 1500 ms time delay
- Resistance Across Terminals
- 0.005 Ohm E3-M terminals || 0.015 Ohm E2-M terminals || 0.05 Ohm E1-M terminals
- Run-Up Delay At Power-Up
- 0.3 s
- Safety Reliability Data
- MTTFd = 296.8 years || B10d = 270000
- Supply Voltage Limits
- 20.4-264 V AC/DC
- Threshold Setting
- 10...100 %
- Tightening Torque
- 0.6-1 N.m IEC 60947-1
- [Ui] Rated Insulation Voltage
- 250 V IEC 60664-1
- [Us] Rated Supply Voltage
- 24...240 V AC/DC 50/60 Hz +/- 10 %
- Width
- 35 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -20-50 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Dielectric Test Voltage
- 2 kV AC 50 Hz, 1 min IEC 60255-5 || 2 kV AC 50 Hz, 1 min IEC 60664-1
- Electromagnetic Compatibility
- emission standard for industrial environments conforming to IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 || immunity for industrial environments conforming to NF EN/IEC 61000-6-2
- Immunity To Microbreaks
- 50 ms
- Ip Degree Of Protection
- IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)
- Non-Dissipating Shock Wave
- 4 kV IEC 60255-5 || 4 kV IEC 60664-1 || 4 kV IEC 61000-4-5
- Pollution Degree
- 3 IEC 60664-1
- Product Certifications
- GL || UL || GOST || C-tick || CSA
- Relative Humidity
- 95-95 % 55-55 °C IEC 60068-2-30
- Shock Resistance
- 15 gn 11 ms IEC 60255-21-1
- Standards
- IEC 60255-6
- Vibration Resistance
- 0.35 mm 5-57.6 Hz)IEC 60068-2-6 || 1 gn 57.6-150 Hz)IEC 60255-21-1
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1504008EN
- Environmental Disclosure
- ENVPEP1504008EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Contacts Type And Composition
- 2 C/O
- Maximum Power Consumption In Va
- 3.5 VA AC
- Maximum Switching Current
- 5 A AC/DC
- Measurement Range
- 0.15...1.5 A E1-M terminals || 0.5...5 A E2-M terminals || 1.5...15 A E3-M terminals || 150 mA...15 A current
- Minimum Switching Current
- 10 mA 5 V DC
- Product Or Component Type
- current control relay
- Range Of Product
- Harmony Control Relays
- Relay Monitored Parameters
- overcurrent or undercurrent detection
- Relay Name
- RM35JA
- Relay Type
- current control relay
- Switching Capacity In Va
- 1250 VA
- Time Delay Type
- adjustable 1...20 s, 0 + 10 % on energisation Ti || adjustable 0.3...30 s, 0 + 10 % on crossing the threshold Tt
- Utilisation Category
- AC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || DC-14 IEC 60947-5-1
