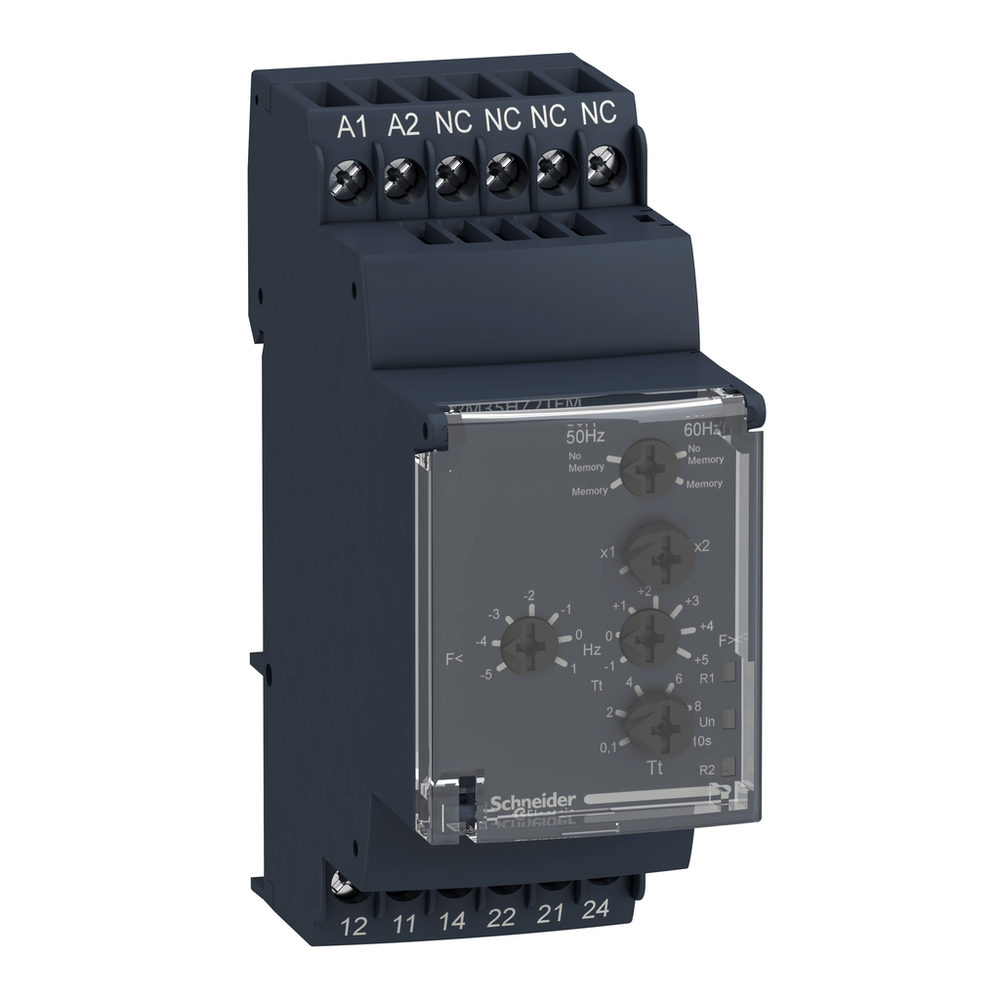

Schneider Electric RM35HZ21FM
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Harmony RM35-HZ control relay allows monitoring of frequency control. This modular control relay is ideal for monitoring of frequency variations in electrical power sources such as wind turbine and micro-power stations. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides an automatic detection of abnormal electrical values before they incur serious damage to machinery thus reducing your maintenance and downtime costs. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0 0frequency control relay, Harmony Control Relays, 5A, 1CO+1CO, 120…277V AC
Schneider Electric RM35HZ21FM is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
- Contacts Material
- cadmium free
- Control Circuit Frequency
- 40...70 Hz
- Control Circuit Voltage Limits
- 15 % + 10 % Un
- Electrical Durability
- 100000 cycles
- Housing Material
- self-extinguishing plastic
- Hysteresis
- 0.3-0.3 % fixed
- Input Frequency
- 70 Hz
- Insulation
- no galvanic insulation between supply and measurement
- Insulation Resistance
- > 500 MOhm 500 V DC between supply and relay output IEC 60255-5 || > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1 || > 1 MOhm 500 V DC between supply and measurement IEC 60255-5 || > 500 MOhm 500 V DC between supply and relay output IEC 60664-1 || > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5 || > 1 MOhm 500 V DC between supply and measurement IEC 60664-1
- Marking
- CE : 73/23/EEC || CE : EMC 89/336/EEC
- Maximum Measuring Cycle
- 200 ms measurement cycle as true rms value
- Maximum Switching Voltage
- 250 V AC/DC
- Measurement Accuracy
- +/- 10 % of the full scale value in input || +/- 10 % of the full scale value in time delay
- Measurement Error
- +/- 0.05 %/°C with temperature variation || < +/- 1 % over the whole range with voltage variation
- Mechanical Durability
- 30000000 cycles
- Mounting Support
- 35 mm symmetrical DIN rail conforming to IEC 60715
- Nominal Output Current
- 5 A
- Operating Position
- any position without derating
- Operating Rate
- <= 360 operations/hour full load
- Output Contacts
- 1 C/O + 1 C/O
- Overvoltage Category
- III IEC 60664-1
- Repeat Accuracy
- +/- 0.5 % input and measurement circuit || +/- 0.5 % time delay
- Reset Time
- 2000 ms time delay
- Run-Up Delay At Power-Up
- 0.5 s
- Status Led
- 1 LED Green power ON || 1 LED Yellow correct frequency (high R1) || 1 LED Yellow correct frequency (low R2)
- Supply Frequency
- 50/60 Hz +/- 10 %
- Supply Voltage Limits
- 102-308 V AC
- Threshold Setting
- -2...10 Hz || -10...2 Hz
- Tightening Torque
- 0.6-1 N.m IEC 60947-1
- [Ui] Rated Insulation Voltage
- 400 V IEC 60664-1
- [Us] Rated Supply Voltage
- 120...277 V AC
- Width
- 35 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -20-50 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Dielectric Test Voltage
- 2 kV AC 50 Hz
- Electromagnetic Compatibility
- emission standard for industrial environments IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments IEC 61000-6-3 || immunity for industrial environments NF EN/IEC 61000-6-2
- Immunity To Microbreaks
- 10 ms
- Ip Degree Of Protection
- IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)
- Non-Dissipating Shock Wave
- 4 kV
- Pollution Degree
- 3 IEC 60664-1
- Product Certifications
- GL || UL || CSA || C-tick || GOST
- Relative Humidity
- 95-95 % 55-55 °C IEC 60068-2-30
- Shock Resistance
- 15 gn 11 ms IEC 60255-21-1
- Standards
- IEC 60255-6 || NF EN 60255-6
- Vibration Resistance
- 0.35 mm 5-57.6 Hz)IEC 60068-2-6/IEC 60255-21-1 || 1 gn 57.6-150 Hz)IEC 60068-2-6/IEC 60255-21-1
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1504008EN
- Environmental Disclosure
- ENVPEP1504008EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Maximum Power Consumption In Va
- 6 VA AC
- Measurement Range
- 40...70 Hz frequency
- Minimum Switching Current
- 10 mA 5 V DC
- Product Or Component Type
- frequency control relay
- Range Of Product
- Harmony Control Relays
- Relay Monitored Parameters
- overfrequency and underfrequency 50 or 60 Hz
- Relay Name
- RM35HZ21FM
- Relay Type
- frequency control relays
- Switching Capacity In Va
- 1250 VA
- Time Delay Type
- adjustable 0.1...10 s, +/- 10 % on crossing the threshold
- Utilisation Category
- AC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || DC-14 IEC 60947-5-1
