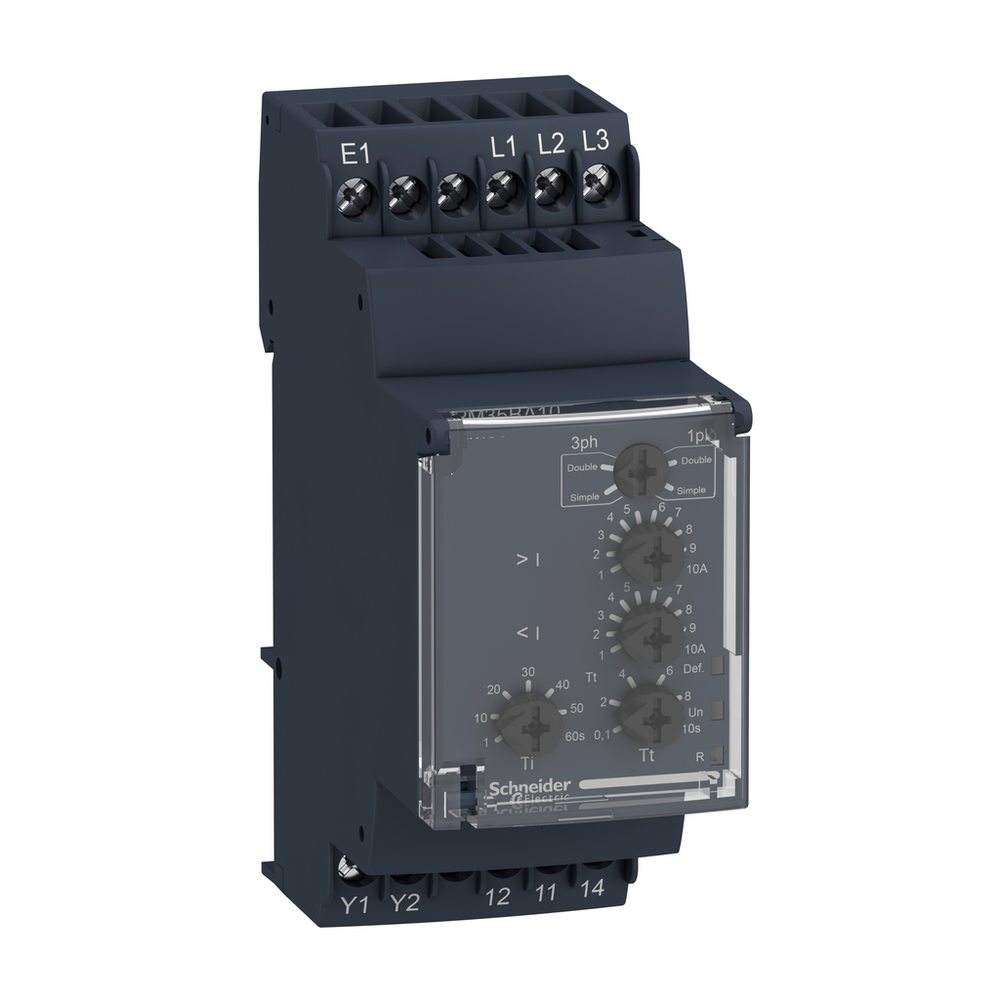

Schneider Electric RM35BA10
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Harmony RM35-BA control relay allows monitoring of pump control. This modular pump control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0pump control relay, Harmony Control Relays, 5A, 1CO, 208...480V AC
Schneider Electric RM35BA10 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
- Control Circuit Voltage Limits
- 15 % + 10 % Un
- Electrical Durability
- 100000 cycles
- Housing Material
- self-extinguishing plastic
- Hysteresis
- 5-5 % threshold
- Input Current
- 11 A permanent at 25 °C E1-L2 terminals || 50 A non repetitive < 1 s at 25 °C E1-L2 terminals
- Insulation Resistance
- > 500 MOhm 500 V DC between supply and relay output 60255-5 || > 500 MOhm 500 V DC between measurement and relay output 60664-1 || > 1 MOhm 500 V DC between supply and measurement 60255-5 || > 500 MOhm 500 V DC between supply and relay output 60664-1 || > 500 MOhm 500 V DC between measurement and relay output 60255-5 || > 1 MOhm 500 V DC between supply and measurement 60664-1
- Marking
- CE : EMC 89/336/EEC || CE : 73/23/EEC
- Maximum Measuring Cycle
- 140 ms as true rms value
- Maximum Switching Voltage
- 250 V AC/DC
- Measurement Accuracy
- +/- 10 % of the full scale value
- Measurement Error
- 1 % by volt over the whole range || +/- 0.05 %/°C
- Mechanical Durability
- 30000000 cycles
- Mounting Support
- 35 mm symmetrical DIN rail conforming to IEC 60715
- Nominal Output Current
- 5 A
- Operating Position
- any position
- Operating Rate
- <= 360 operations/hour full load
- Output Contacts
- 1 C/O
- Overvoltage Category
- III IEC 60664-1
- Repeat Accuracy
- +/- 1 % input and measurement circuit || +/- 1 % time delay
- Reset Time
- 2000 ms
- Resistance Across Terminals
- 0.01 Ohm E1-L2 terminals
- Response Time
- < 300 ms (in the event of a fault)
- Run-Up Delay At Power-Up
- 0.5 s
- Status Led
- 1 LED Green power ON || 1 LED Yellow fault || 1 LED Yellow relay ON
- Supply Frequency
- 50/60 Hz +/- 10 %
- Supply Voltage Limits
- 183-528 V AC
- Tightening Torque
- 0.6-1 N.m IEC 60947-1
- [Ui] Rated Insulation Voltage
- 400 V IEC 60664-1
- [Us] Rated Supply Voltage
- 208...480 V AC 3 phase || 230 V AC single phase
- 208...480 V AC 3 phase || 230 V AC 1 phase
- Width
- 35 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -20-50 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Dielectric Strength
- 2 kV AC 50 Hz shock wave 4 kV)
- Electromagnetic Compatibility
- emission standard for industrial environments IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments IEC 61000-6-3 || immunity for industrial environments NF EN/IEC 61000-6-2
- Immunity To Microbreaks
- 500 ms
- Ip Degree Of Protection
- IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)
- Pollution Degree
- 3 IEC 60664-1
- Product Certifications
- C-tick || CSA || GOST || UL || GL
- Relative Humidity
- 95-95 % 55-55 °C IEC 60068-2-30
- Shock Resistance
- 15 gn 11 ms IEC 60255-21-1
- Standards
- IEC 60255-6
- Vibration Resistance
- 0.35 mm 5-57.6 Hz)IEC 60068-2-6/IEC 60255-21-1 || 1 gn 57.6-150 Hz)IEC 60068-2-6/IEC 60255-21-1
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1504008EN
- Environmental Disclosure
- ENVPEP1504008EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Maximum Power Consumption In Va
- 5 VA AC
- Maximum Switching Current
- 5 A AC/DC
- Measurement Range
- 1...10 A AC
- Minimum Switching Current
- 10 mA 5 V DC
- Product Or Component Type
- pump control relay
- Product Specific Application
- for 3-phase and single-phase pump
- Range Of Product
- Harmony Control Relays
- Relay Monitored Parameters
- overcurrent and undercurrent control || phase sequence on 3-phase supply || phase failure on 3-phase supply
- Relay Name
- RM35BA
- Relay Type
- pump control relays
- Switching Capacity In Va
- 1250 VA
- Time Delay Type
- adjustable 1...60 s, +/- 10 % Ti on energisation || fixed 0.3 s reset on terminal Y2 || adjustable 0.1...10 s, +/- 10 % Tt on crossing the threshold
- Utilisation Category
- AC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1
