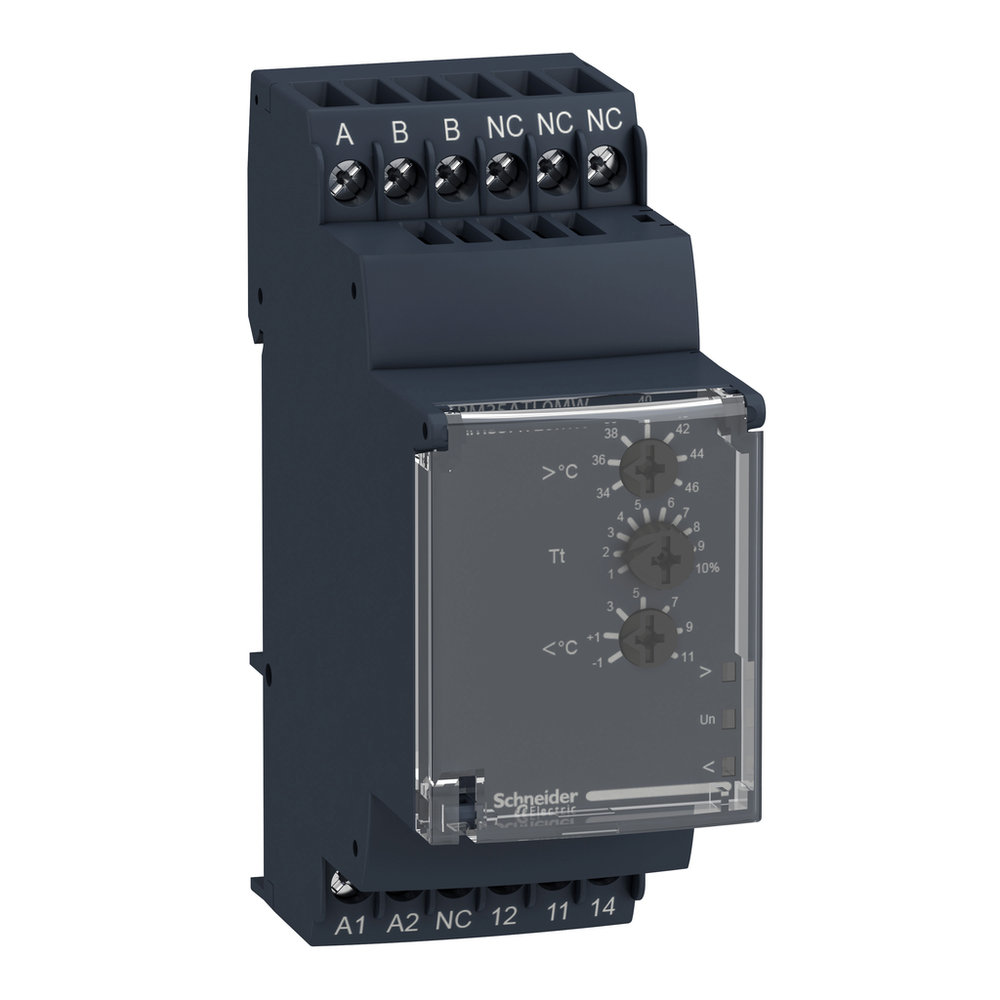

Schneider Electric RM35ATL0MW
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Harmony RM35AT control relay allows monitoring of temperature control." "This modular control relay is ideal for monitoring of electrical values and temperature variation in industrial and building control panels." "It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water." "It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device." "It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers." "It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting." "Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC." 0 0 0 0 0 0 0 0 0temperature control relay, Harmony Control Relays, 5A, 1CO, 24..240V AC DC
Schneider Electric RM35ATL0MW is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
- Contacts Material
- cadmium free
- Control Circuit Voltage Limits
- 10 % + 10 % Un DC || - 15 % + 10 % Un AC
- Electrical Durability
- 100000 cycles
- Housing Material
- self-extinguishing plastic
- Installed Device
- Pt 100 probe cable length <= 10 m
- Insulation
- galvanic insulation between supply and measurement
- Insulation Resistance
- > 500 MOhm 500 V DC between supply and relay output IEC 60255-5 || > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1 || > 1 MOhm 500 V DC between supply and measurement IEC 60255-5 || > 500 MOhm 500 V DC between supply and relay output IEC 60664-1 || > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5 || > 1 MOhm 500 V DC between supply and measurement IEC 60664-1
- Marking
- CE : EMC 89/336/EEC || CE : 73/23/EEC
- Maximum Power Consumption In W
- 0.6 W DC
- Maximum Switching Voltage
- 250 V AC/DC
- Measurement Accuracy
- +/- 2 °C
- Mechanical Durability
- 30000000 cycles
- Mounting Support
- 35 mm symmetrical DIN rail conforming to IEC 60715
- Nominal Output Current
- 5 A
- Operating Position
- any position without derating
- Operating Rate
- <= 360 operations/hour full load
- Output Contacts
- 1 C/O
- Overvoltage Category
- III IEC 60664-1
- Reset Time
- 8 s
- Resistance Across Terminals
- 1.33 kOhm temperature
- Response Time
- <= 3.5 s + Tt (in case of temperature fault) || <= 3.5 s (on disappearance of fault)
- Run-Up Delay At Power-Up
- 0.2 s
- Status Led
- 1 LED Green power ON || 1 LED Yellow correct temperature (high R1) || 1 LED Yellow correct temperature (low R2)
- Supply Frequency
- 50/60 Hz +/- 10 %
- Supply Voltage Limits
- 20.4-264 V AC || 21.6-264 V DC
- Temperature Probe Type
- Pt 100 - 3-wire
- Tightening Torque
- 0.6-1 N.m IEC 60947-1
- [Ui] Rated Insulation Voltage
- 250 V IEC 60664-1
- [Us] Rated Supply Voltage
- 24...240 V AC/DC
- Width
- 35 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -20-50 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Dielectric Test Voltage
- 2 kV AC 50 Hz, 1 min
- Electromagnetic Compatibility
- emission standard for industrial environments IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments IEC 61000-6-3 || immunity for industrial environments NF EN/IEC 61000-6-2
- Immunity To Microbreaks
- 10 ms
- Ip Degree Of Protection
- IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)
- Non-Dissipating Shock Wave
- 4 kV
- Pollution Degree
- 3 IEC 60664-1
- Product Certifications
- GOST || GL || C-tick || UL || CSA
- Shock Resistance
- 15 gn 11 ms IEC 60255-21-1
- Standards
- IEC 60255-6 || NF EN 60255-6
- Vibration Resistance
- 0.35 mm 5-57.6 Hz)IEC 60068-2-6/IEC 60255-21-1 || 1 gn 57.6-150 Hz)IEC 60068-2-6/IEC 60255-21-1
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1504008EN
- Environmental Disclosure
- ENVPEP1504008EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Maximum Power Consumption In Va
- 3.5 VA AC
- Minimum Switching Current
- 10 mA 5 V DC
- Product Or Component Type
- temperature control relay
- Product Specific Application
- for elevator machine rooms and 3-phase supplies
- Range Of Product
- Harmony Control Relays
- Relay Monitored Parameters
- undertemperature: -1...11°C || overtemperature: 34...46°C
- Relay Name
- RM35AT
- Relay Type
- temperature control relays
- Switching Capacity In Va
- 1250 VA
- Time Delay Range
- 0.1...10 s adjustable 0...10 % of the full scale value)
- Utilisation Category
- AC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || DC-14 IEC 60947-5-1
