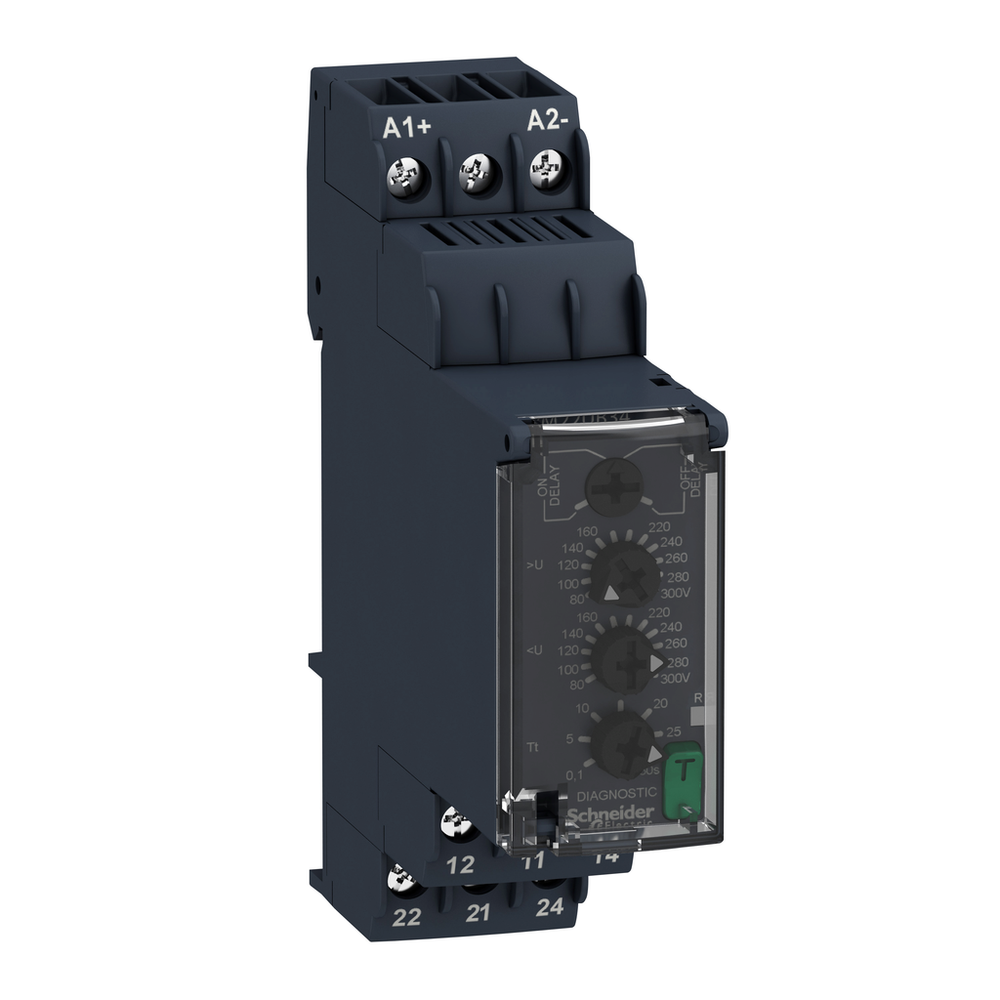

Schneider Electric RM22UB34
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Harmony RM22-UB relay allows monitoring of voltage control in single phase networks. This modular multi function single phase voltage control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a diagnostic button, sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0voltage control relay, Harmony Control Relays, 8A, 2CO, 80…300V AC DC, 110…240V AC DC
Schneider Electric RM22UB34 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Compatibility Code
- RM22
- Connections - Terminals
- screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end || screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end
- Contacts Material
- cadmium free
- Electrical Durability
- 100000 cycles
- Functionality
- overvoltage and undervoltage detection
- Housing Material
- self-extinguishing plastic
- Hysteresis
- 5-50 % adjustable threshold setting
- Immunity To Microbreaks
- 20 ms
- Insulation Resistance
- > 100 MOhm 500 V DC
- Maximum Measuring Cycle
- 250 ms measurement cycle as true rms value
- Maximum Power Consumption In W
- 2 W DC
- Maximum Switching Voltage
- 250 V AC
- Measurement Error
- < 1 % over the whole range with voltage variation || 0.2 %/°C with temperature variation
- Mechanical Durability
- 10000000 cycles
- Mounting Support
- 35 mm DIN rail conforming to IEC 60715
- Net Weight
- 0.09 kg
- Nominal Output Current
- 8 A
- Output Contacts
- 2 C/O
- Overvoltage Category
- III IEC 60664-1
- Repeat Accuracy
- +/- 0.5 % input and measurement circuit || +/- 2 % time delay
- Reset Time
- 1500 ms at maximum voltage
- Response Time
- <= 500 ms
- Run-Up Delay At Power-Up
- 600 ms
- Safety Reliability Data
- MTTFd = 433.7 years || B10d = 400000
- Supply Voltage Limits
- 60-280 V AC
- Tightening Torque
- 0.6-1 N.m IEC 60947-1
- [Us] Rated Supply Voltage
- 110...240 V AC/DC 50/60 Hz
- Width
- 22.5 mm
Environment
- Ambient Air Temperature For Operation
- -20-50 °C 60 Hz || -20-60 °C 50 Hz
- Ambient Air Temperature For Storage
- -40-70 °C
- Dielectric Test Voltage
- 2.5 kV AC 50 Hz, 1 min IEC 60255-27
- Electromagnetic Compatibility
- immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1 || immunity for industrial environments conforming to IEC 61000-6-2 || emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 || emission standard for industrial environments conforming to IEC 61000-6-4 || electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 || electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3 || electrical fast transient/burst immunity test - test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4 || electrical fast transient/burst immunity test - test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4 || surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5 || surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5 || conducted and radiated emissions class B group 1 conforming to CISPR 11 || conducted and radiated emissions class B conforming to CISPR 22
- Ip Degree Of Protection
- IP20 IEC 60529 terminals) || IP40 IEC 60529 housing) || IP50 IEC 60529 front panel)
- Pollution Degree
- 3 IEC 60664-1
- Product Certifications
- CCC || CE || CSA || EAC || UL || GL || RCM
- Relative Humidity
- 93-97 % 25-55 °C IEC 60068-2-30
- Shock Resistance
- 15 gn 11 ms) not in operation IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27
- Standards
- IEC 60255-1
- Vibration Resistance
- 0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6 || 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6 || 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6 || 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1504008EN
- Environmental Disclosure
- ENVPEP1504008EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Contacts Type And Composition
- 2 C/O
- Maximum Switching Current
- 8 A AC
- Measurement Range
- 80...300 V voltage AC/DC 50/60 Hz
- Minimum Switching Current
- 10 mA 5 V DC
- Phase
- 1 phase
- Power Consumption In Va
- 5-5 VA AC
- Product Or Component Type
- voltage control relay
- Range Of Product
- Harmony Control Relays
- Relay Monitored Parameters
- overvoltage and undervoltage detection
- Relay Name
- RM22UA
- Relay Type
- voltage control relay
- Supply Circuit Type
- AC/DC
- Switching Capacity In Va
- 2000 VA
- Time Delay Type
- adjustable 0.1...30 s, +/- 10 % of the full scale value on crossing the threshold Tt
- Utilisation Category
- AC-15 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || AC-1 IEC 60947-4-1 || DC-1 IEC 60947-4-1
