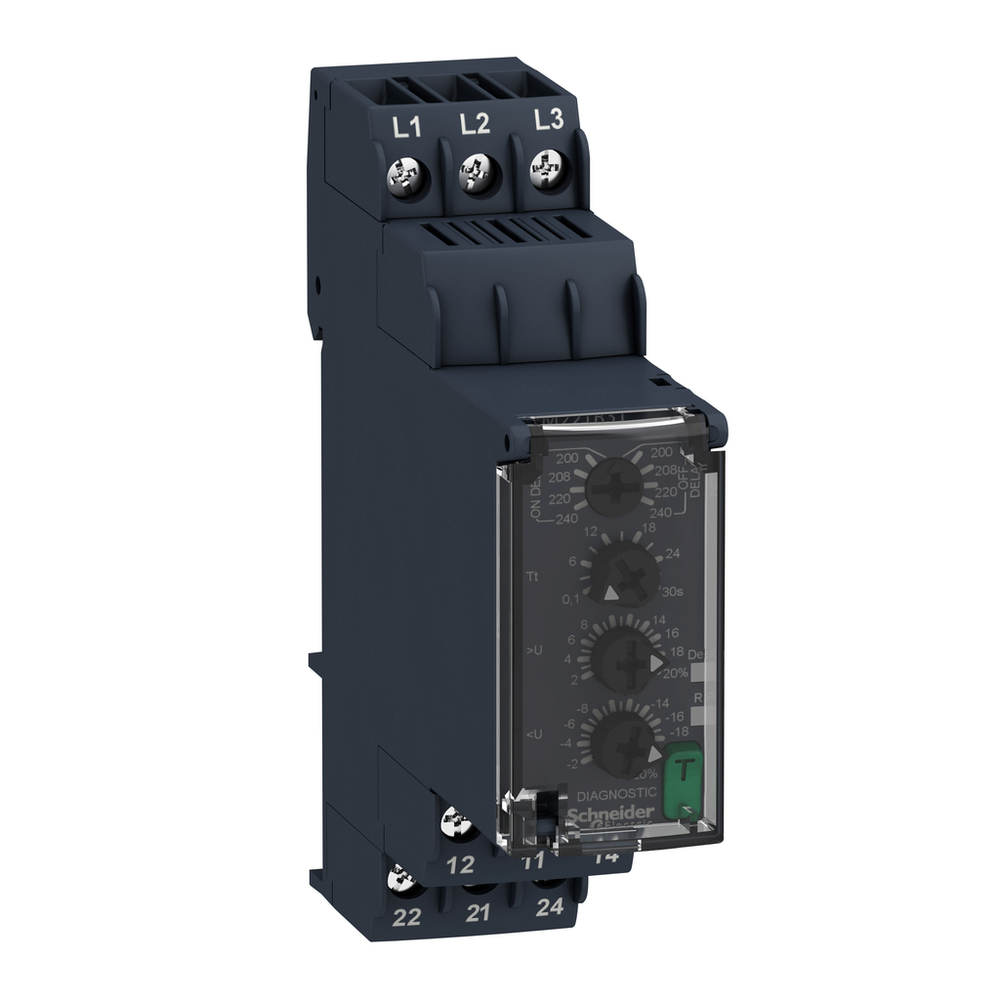

Schneider Electric RM22TR31

Complementary

• Connections - Terminals
  • screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end || screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end
• Contacts Material
  • cadmium free
• Control Circuit Voltage Limits
  • 20 % + 20 % Un
• Electrical Durability
  • 100000 cycles
• Housing Material
  • self-extinguishing plastic
• Hysteresis
  • 2-2 % fixed selectable
• Insulation Resistance
  • > 100 MOhm 500 V DC IEC 60255-27
• Maximum Measuring Cycle
  • 150 ms measurement cycle as true rms value
• Maximum Switching Current
  • 8 A AC
• Maximum Switching Voltage
  • 250 V AC
• Measurement Error
  • < 1 % over the whole range with voltage variation || < 0.05 %/°C with temperature variation
• Mechanical Durability
  • 10000000 cycles
• Minimum Switching Current
  • 10 mA 5 V DC
• Mounting Position
  • any position
• Mounting Support
  • 35 mm DIN rail conforming to IEC 60715
• Net Weight
  • 0.09 kg
• Output Contacts
  • 2 C/O
• Overvoltage Category
  • III IEC 60664-1 || III UL 508
• Power Consumption In Va
  • 10-10 VA 240 V AC 60 Hz
• Repeat Accuracy
  • +/- 0.5 % input and measurement circuit || +/- 3 % time delay
• Reset Time
  • 1500 ms at maximum voltage
• Response Time
  • <= 300 ms
• Run-Up Delay At Power-Up
  • 650 ms
• Safety Reliability Data
  • MTTFd = 388.1 years || B10d = 350000
• Setting Accuracy Of The Switching Threshold
  • +/- 10 % of the full scale
• Setting Accuracy Of Time Delay
  • 10 P
• Status Led
  • LED (Yellow) relay ON || LED (Green) power ON
• Supply Frequency
  • 50...60 Hz +/- 10 %
• Supply Voltage Limits
  • 160-288 V AC
• Switching Threshold Drift
  • <= 0.05 % per degree centigrade depending permissible ambient air temperature || <= 1 % within the supply voltage range
• Threshold Adjustment Voltage
  • 2...20 % of Un selected
• Tightening Torque
  • 0.6-1 N.m IEC 60947-1
• Time Delay Drift
  • <= 0.05 % per degree centigrade depending permissible ambient air temperature || <= 1 % within the supply voltage range
• [Us] Rated Supply Voltage
  • 200...240 V AC
• Utilisation Category
  • AC-15 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || AC-1 IEC 60947-4-1 || DC-1 IEC 60947-4-1
• Voltage Detection Threshold
  • < 100 V AC
• Voltage Range
  • 200...240 V phase to phase
• Width
  • 22.5 mm

Environment

• Ambient Air Temperature For Operation
  • -20-50 °C 60 Hz || -20-60 °C 50 Hz AC/DC
• Ambient Air Temperature For Storage
  • -40-70 °C
• Dielectric Test Voltage
  • 2.5 kV AC 50 Hz, 1 min IEC 60255-27
• Electromagnetic Compatibility
  • immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1 || immunity for industrial environments conforming to IEC 61000-6-2 || emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 || emission standard for industrial environments conforming to IEC 61000-6-4 || electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 || electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3 || electrical fast transient/burst immunity test - test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4 || electrical fast transient/burst immunity test - test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4 || surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5 || surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5 || conducted and radiated emissions class B group 1 conforming to CISPR 11 || conducted and radiated emissions class B conforming to CISPR 22
• Immunity To Microbreaks
  • 10 ms
• Ip Degree Of Protection
  • IP20 IEC 60529 terminals) || IP40 IEC 60529 housing) || IP50 IEC 60529 front panel)
• Pollution Degree
  • 3 IEC 60664-1 || 3 UL 508
• Product Certifications
  • CSA || CCC || EAC || RCM || CE || GL || UL
• Relative Humidity
  • 93-97 % 25-55 °C IEC 60068-2-30
• Shock Resistance
  • 15 gn 11 ms) not in operation IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27
• Standards
  • IEC 60255-1
• Vibration Resistance
  • 0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6 || 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6 || 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6 || 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • X
• Circularity Profile
  • ENVEOLI1504008EN
• Environmental Disclosure
  • ENVPEP1504008EN
• Eu Rohs Directive
  • Pro-active compliance (Product out of EU RoHS legal scope)
• Mercury Free
  • Yes
• Reach Regulation
  • Reference contains Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Sustainable Offer Status
  • Green Premium product

Specifications

• Contacts Type And Composition
  • 2 C/O
• Measurement Range
  • 200...240 V voltage AC
• Phase
  • 3 phase
• Product Or Component Type
  • 3-phase control relay
• Range Of Product
  • Harmony Control Relays
• Relay Monitored Parameters
  • phase sequence || phase failure detection || overvoltage and undervoltage detection
• Relay Name
  • RM22TR
• Relay Type
  • control relay
• Switching Capacity In Va
  • 2000 VA
• Time Delay Type
  • adjustable 0.1...30 s, +/- 10 % of the full scale value on crossing the threshold Tt
