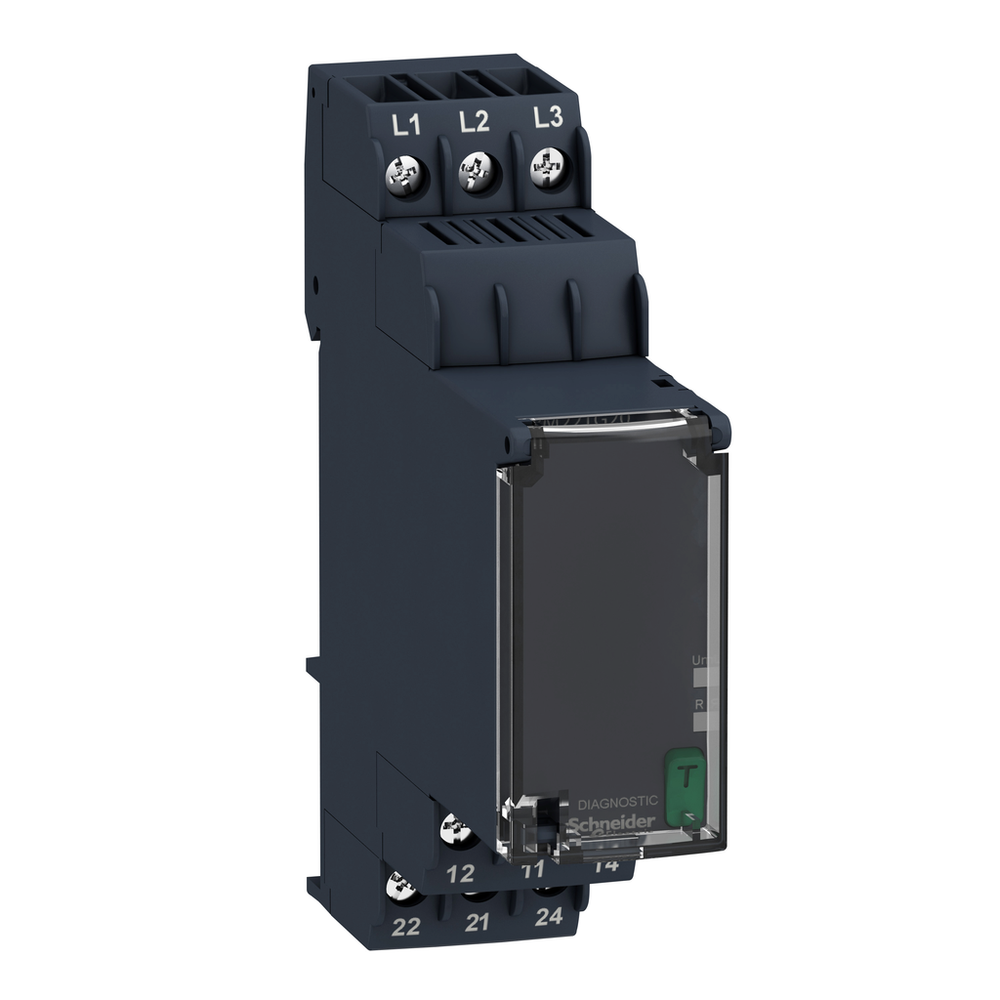

Schneider Electric RM22TG20
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Harmony RM22TG control relay allows monitoring of power supply circuits in 3-phase networks. This modular 3-phase control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0Harmony, Modular 3-phase supply control relay, 8A, 2 CO, 183…528VAC
Schneider Electric RM22TG20 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end || screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end
- Contacts Material
- cadmium free
- Control Circuit Voltage Limits
- 183...528 V AC
- Electrical Durability
- 100000 cycles
- Housing Material
- self-extinguishing plastic
- Insulation Resistance
- > 100 MOhm 500 V DC IEC 60255-27
- Maximum Switching Current
- 8 A AC
- Maximum Switching Voltage
- 250 V AC
- Mechanical Durability
- 10000000 cycles
- Minimum Switching Current
- 10 mA 5 V DC
- Mounting Position
- any position
- Mounting Support
- 35 mm DIN rail conforming to IEC 60715
- Net Weight
- 0.09 kg
- Output Contacts
- 2 C/O
- Overvoltage Category
- III IEC 60664-1 || III UL 508
- Power Consumption In Va
- 15-15 VA 480 V AC 60 Hz
- Reset Time
- 1500 ms at maximum voltage
- Response Time
- <= 200 ms
- Run-Up Delay At Power-Up
- 650 ms
- Safety Reliability Data
- MTTFd = 924.6 years || B10d = 850000
- Status Led
- LED (Yellow) relay ON || LED (Green) power ON
- Supply Frequency
- 50...60 Hz +/- 10 %
- Supply Voltage Limits
- 183-528 V AC
- Tightening Torque
- 0.6-1 N.m IEC 60947-1
- [Us] Rated Supply Voltage
- 208...480 V AC
- Utilisation Category
- AC-15 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || AC-1 IEC 60947-4-1 || DC-1 IEC 60947-4-1
- Voltage Detection Threshold
- < 100 V AC
- Width
- 22.5 mm
Environment
- Ambient Air Temperature For Operation
- -20-50 °C 60 Hz || -20-60 °C 50 Hz AC/DC
- Ambient Air Temperature For Storage
- -40-70 °C
- Dielectric Test Voltage
- 2.5 kV AC 50 Hz, 1 min IEC 60255-27
- Electromagnetic Compatibility
- immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1 || immunity for industrial environments conforming to IEC 61000-6-2 || emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 || emission standard for industrial environments conforming to IEC 61000-6-4 || electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 || electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3 || electrical fast transient/burst immunity test - test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4 || electrical fast transient/burst immunity test - test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4 || surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5 || surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5 || conducted and radiated emissions class B group 1 conforming to CISPR 11 || conducted and radiated emissions class B conforming to CISPR 22
- Immunity To Microbreaks
- 10 ms
- Ip Degree Of Protection
- IP20 IEC 60529 terminals) || IP40 IEC 60529 housing) || IP50 IEC 60529 front panel)
- Pollution Degree
- 3 IEC 60664-1 || 3 UL 508
- Product Certifications
- CE || EAC || RCM || GL || CSA || UL || CCC
- Relative Humidity
- 93-97 % 25-55 °C IEC 60068-2-30
- Shock Resistance
- 15 gn 11 ms) not in operation IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27
- Standards
- IEC 60255-1
- Vibration Resistance
- 0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6 || 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6 || 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6 || 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1504008EN
- Environmental Disclosure
- ENVPEP1504008EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Contacts Type And Composition
- 2 C/O
- Measurement Range
- 183...528 V voltage AC
- Phase
- 3 phase
- Product Or Component Type
- 3-phase control relay
- Range Of Product
- Harmony Control Relays
- Relay Monitored Parameters
- phase sequence || phase failure detection (2 or more phase cut)
- Relay Name
- RM22TG
- Relay Type
- control relay
- Switching Capacity In Va
- 2000 VA
- Time Delay Type
- without
