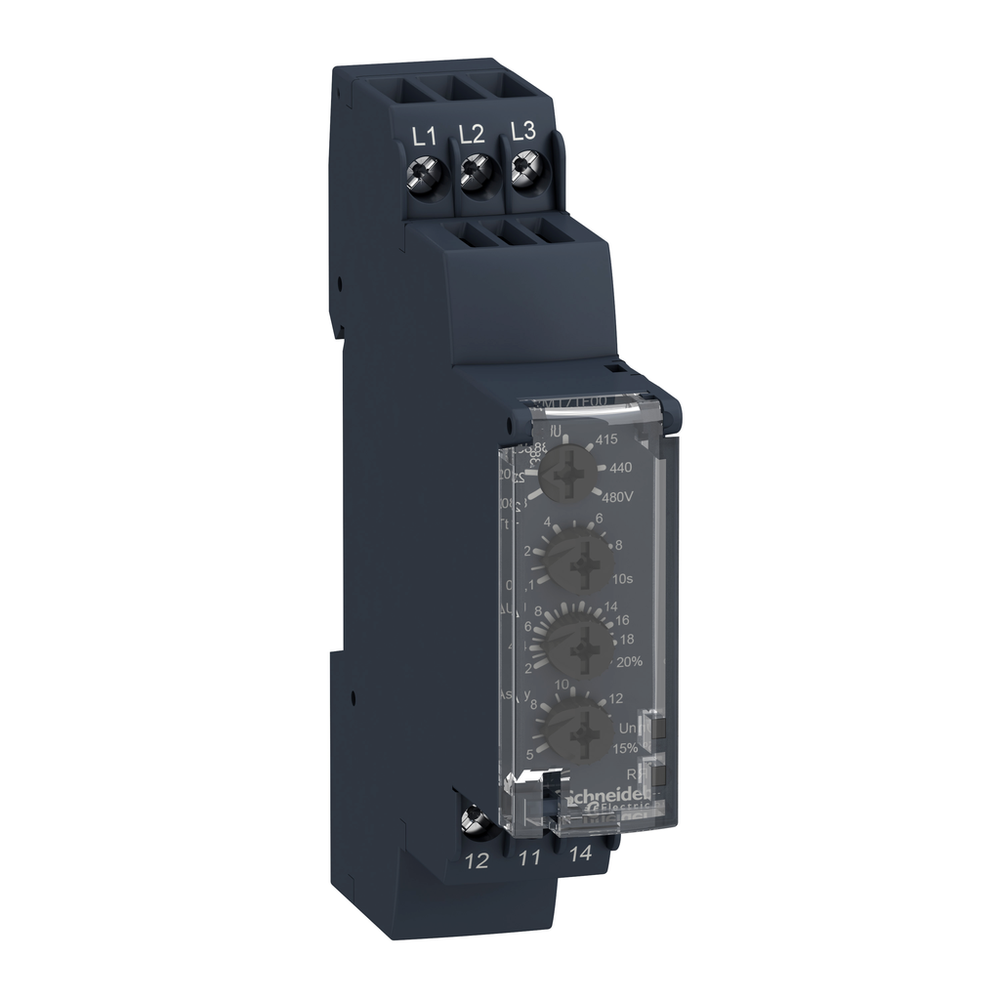

Schneider Electric RM17UAS14
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Harmony RM17-U control relay allows monitoring of voltage control." "This modular control relay is ideal for monitoring of electrical values and voltage variation in industrial and building control panels." "It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water." "It has one of market slimmest form-factors with 17.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device." "It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers." "It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting." "Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC." 0 0 0 0 0 0 0 0 0voltage control relay, Harmony Control Relays, 5A, 1CO, 9…15V DC
Schneider Electric RM17UAS14 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Compatibility Code
- RM17
- Connections - Terminals
- screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...2 x 2.5 mm² AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
- Electrical Durability
- 100000 cycles
- Housing Material
- self-extinguishing plastic
- Hysteresis
- 5-20 % threshold setting
- Immunity To Microbreaks
- 20 ms 12 V
- Insulation Resistance
- > 500 MOhm 500 V DC IEC 60255-5 || > 500 MOhm 500 V DC IEC 60664-1
- Local Signalling
- for power ON LED (green) || for relay ON LED (yellow)
- Maximum Power Consumption In W
- 1 W DC
- Maximum Switching Voltage
- 250 V AC/DC
- Measurement Accuracy
- +/- 10 % of the full scale value
- Measurement Error
- < 1 % over the whole range with voltage variation || 0.2 %/°C with temperature variation
- Mechanical Durability
- 30000000 cycles
- Mounting Support
- 35 mm symmetrical DIN rail conforming to IEC 60715
- Net Weight
- 0.08 kg
- Nominal Output Current
- 5 A
- Operating Position
- any position without derating
- Operating Rate
- <= 360 operations/hour full load
- Output Contacts
- 1 C/O
- Overvoltage Category
- III IEC 60664-1
- Polarity
- non reversible polarity on DC supply
- Quality Labels
- CE
- Repeat Accuracy
- +/- 0.5 % input and measurement circuit || +/- 1 % time delay
- Reset Time
- 1500 ms time delay
- Run-Up Delay At Power-Up
- 1000 ms DC
- Supply Voltage Limits
- 7-20 V DC
- Tightening Torque
- 0.6-1 N.m IEC 60947-1
- [Ui] Rated Insulation Voltage
- 250 V IEC 60664-1 || 400 V IEC 60664-1
- [Us] Rated Supply Voltage
- 12 V DC +/- 10 %
- Width
- 17.5 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -20-50 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Dielectric Test Voltage
- 2 kV AC 50 Hz, 1 min IEC 60255-5 || 2 kV AC 50 Hz, 1 min IEC 60664-1
- Directives
- 73/23/EEC - low voltage directive || 89/336/EEC - electromagnetic compatibility
- Electromagnetic Compatibility
- emission standard for industrial environments conforming to IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 || immunity for industrial environments conforming to NF EN/IEC 61000-6-2
- Ip Degree Of Protection
- IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)
- Non-Dissipating Shock Wave
- 4 kV IEC 60255-5 || 4 kV IEC 60664-1 || 4 kV IEC 61000-4-5
- Pollution Degree
- 3 IEC 60664-1
- Product Certifications
- CSA || C-tick || GL || UL || GOST
- Relative Humidity
- 95-95 % 55-55 °C IEC 60068-2-30
- Shock Resistance
- 5 gn IEC 60068-2-27
- Standards
- IEC 60255-6
- Vibration Resistance
- 0.35 mm 5-57.6 Hz)IEC 60068-2-6 || 1 gn 57.6-150 Hz)IEC 60255-21-1
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1504008EN
- Environmental Disclosure
- ENVPEP1504008EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Contacts Type And Composition
- 1 C/O
- Maximum Switching Current
- 5 A AC/DC
- Measurement Range
- 9...15 V voltage DC
- Minimum Switching Current
- 10 mA 5 V DC
- Product Or Component Type
- voltage control relay
- Product Specific Application
- for single-phase and DC supply
- Range Of Product
- Harmony Control Relays
- Relay Monitored Parameters
- overvoltage or undervoltage detection || self-powered
- Relay Name
- RM17UAS
- Relay Type
- voltage control relay
- Switching Capacity In Va
- 1250 VA
- Time Delay Type
- adjustable 0.1...10 s, 0 + 10 % on crossing the threshold
- Utilisation Category
- AC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || DC-14 IEC 60947-5-1
