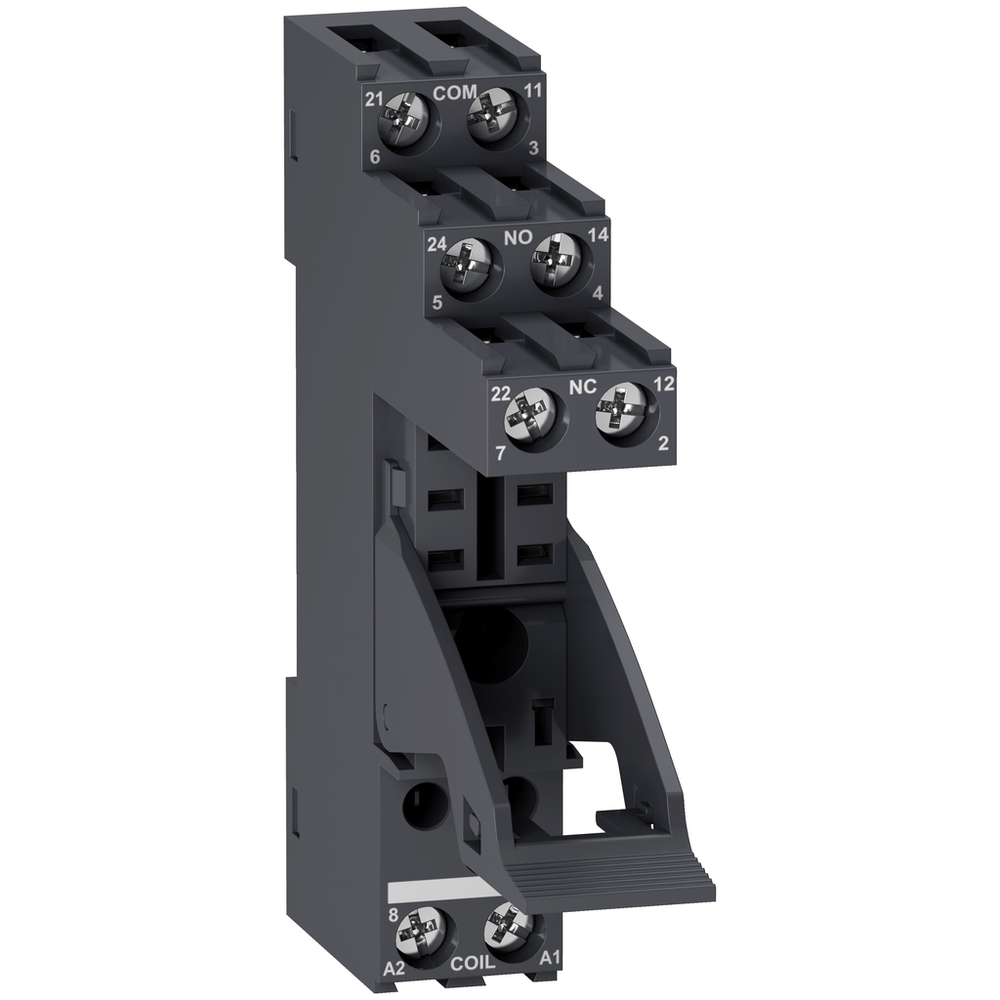

Schneider Electric RGZE1S48M
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Harmony RGZ timing relay socket has separate contact terminals." "It enables quick and easy plug-in installation of relays without the need for tools." "It is compatible with all 2 C/O DPDT RXG relays." "Simple relay retention via clamp allows quick replacement of relays and minimizes machine downtime." 0 0 0 0 0 0 0 0 0 0 0 0Socket with clamp, Harmony, for RXG2 relays, 5A, screw connectors, separate contact
Schneider Electric RGZE1S48M is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end || screw terminals, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end || screw terminals, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end || screw terminals, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end
- Dielectric Strength
- 5 kV between coil and contact with reinforced insulation || 2.5 kV between contacts with basic insulation || 3 kV between poles with basic insulation || 3 kV between terminals and DIN rail with basic insulation
- Line Rated Current
- 5 A
- Product Compatibility
- plug-in relay RXG 2 C/O
- Screw Type
- M3
- [Ue] Rated Operational Voltage
- 250 V IEC || 300 V UL
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV between coil and contact with reinforced insulation || 4 kV between contacts with basic insulation || 4 kV between poles with basic insulation || 4 kV between terminals and DIN rail with basic insulation
- [Ui] Rated Insulation Voltage
- 250 V
Environment
- Ambient Air Temperature For Operation
- -40-70 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Ip Degree Of Protection
- IP20
- Overvoltage Category
- III
- Pollution Degree
- 3
- Product Certifications
- EAC || CE || CSA || UL || DNV-GL
- Relative Humidity
- 10-85 %
- Standards
- CSA C22.2 No 14 || IEC 61984 || UL 508
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP1406006EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Contact Terminal Arrangement
- separate
- Product Or Component Type
- socket
- Range Of Product
- Harmony Electromechanical Relays
