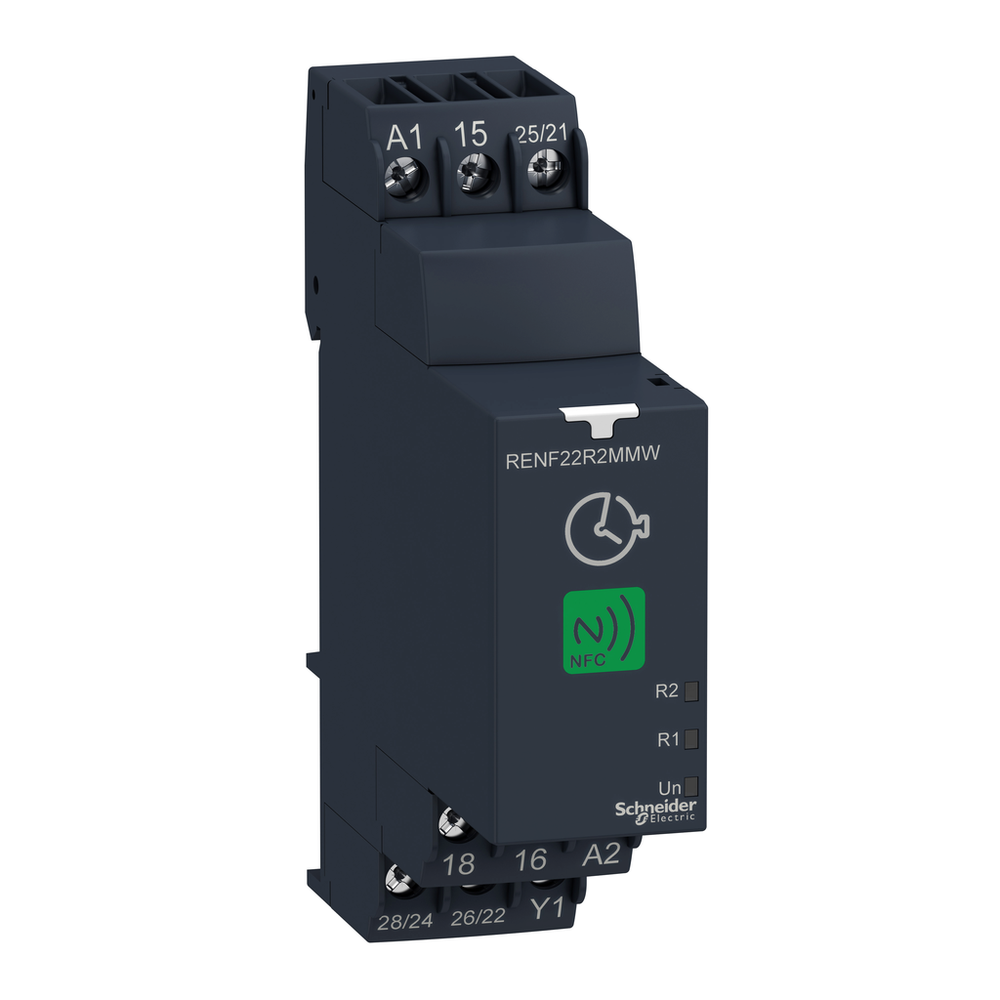

Schneider Electric RENF22R2MMW

Complementary

• Connections - Terminals
  • screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
• Contacts Type And Composition
  • 2 C/O timed contact, cadmium free || 1 C/O timed and instantaneous contact, cadmium free
• Creepage Distance
  • 4 kV/3 IEC 60664-1
• Discrete Output Type
  • relay
• Electrical Durability
  • 100000 cycles for resistive load, 8 A at 250 V, AC
• Function Available
  • A- Power on-delay relay-2 C/O || Ac- On-delay and off-delay relay w/ control signal-2 C/O || Ad- Pulse delayed relay w/ control signal-2 C/O || Ah- Pulse delayed relay (single cycle) w/ control signal-2 C/O || Ak- Asymmetrical on-delay and off -delay relay w/ control signal-2 C/O || At- Power on-delay relay w/ pause/summation (Y1)-2 C/O || B- Single interval relay w/ control signal-2 C/O || Bw- Double interval relay w/ control signal-2 C/O || C- Off-delay relay w/ control signal-2 C/O || D- Symmetrical flashing relay (starting pulse-off)-2 C/O || Di- Symmetrical flashing relay (starting pulse-on)-2 C/O || Dt- Symmetrical flashing relay (starting pulse-off) w/ pause/summation (Y1)-2 C/O || Dit- Symmetrical flashing relay (starting pulse-on) w/ pause/summation (Y1)-2 C/O || H- Interval relay-2 C/O || Ht- Interval relay w/ pause/summation (Y1)-2 C/O || Li- Asymmetrical flashing relay (starting pulse-on)-2 C/O || Lt- Asymmetrical fl ashing relay (starting pulse-off) w/ pause/summation (Y1)-2 C/O || Lit- Asymmetrical flashing relay (starting pulse-on) w/ pause/summation (Y1)-2 C/O || N- Safe-guard relay-2 C/O || O- Delayed Safe-guard relay-2 C/O || P- Pulse delayed relay w/ fixed pulse length-2 C/O || Pt- Pulse delayed relay w/ fixed pulse length and pause/summation-2 C/O || Qt- Star-delta relay (2 CO outputs w/ split common)-2 C/O || Qtt- Star-delta relay (2 CO outputs w/ split common) w/ pause/summation (Y1)-2 C/O || TI- Bistable relay w/ control signal on-2 C/O || Tt- Retriggerable bistable relay w/ control signal on-2 C/O || W- Interval relay w/ control signal off-2 C/O || L- Asymmetrical flashing relay (starting pulse-off)-2 C/O
• Housing Material
  • self-extinguishing
• Input Voltage
  • <= 2.4 V
• Insulation Resistance
  • 100 MOhm 500 V DC IEC 60664-1
• Local Signalling
  • Un, green LED steady)power ON || R1, amber LED steady)relay energised || R2, amber LED steady)relay energised || pairing, green LED steady)communication status || Un, green LED fast blinking)diagnosis mode || R1, amber LED blinking)timing in progress || R2, amber LED blinking)timing in progress
• Maximum Delay Response
  • 100 ms
• Maximum Operating Frequency
  • 13.56 MHz
• Maximum Switching Current
  • 8 A
• Maximum Switching Voltage
  • 250 V
• Mechanical Durability
  • 10000000 cycles
• Minimum Pulse Duration
  • 100 ms with load in parallel || 60 ms no-load
• Minimum Switching Current
  • 10 mA 5 V
• Mounting Position
  • any position
• Mounting Support
  • 35 mm DIN rail conforming to IEC 60715
• Net Weight
  • 0.0904 kg
• Nominal Output Current
  • 8 A
• Nominal Power
  • 0.0002 mW
• Operating Distance
  • 10 mm
• Overvoltage Category
  • III IEC 60664-1
• Power Consumption In Va
  • 3-3 VA 240 V AC
• Power Consumption In W
  • 1.5 W 240 V DC || 0.6 W 24 V DC
• Product Compatibility
  • NFC enabled mobile device
• Repeat Accuracy
  • +/- 0.2 % 10 s...999 h || +/- 0.5 % 100 ms...10 s
• Reset Time
  • 120 ms on de-energisation
• Response Time
  • 2 s
• Safety Reliability Data
  • MTTFd = 227.5 years 100 % duty cycle continuous operating condition at 30 °C
• Setting Accuracy Of Time Delay
  • +/- 1 % 1...999 h 25 °C || +/- 2 % 1 h 25 °C || +/- 20 ms 100 ms...10 s 25 °C
• Supply Frequency
  • 50...60 Hz +/- 5 %
• Switching Capacity In Va
  • 2000 VA
• Temperature Drift
  • +/- 0.05 %/°C
• Tightening Torque
  • 0.6-1 N.m IEC 60947-1 || 5.3-8.8 lbf.in IEC 60947-1
• Time Delay Range
  • 0.1 s...999 h
• Time Delay Type
  • power on-delay || on-delay and off-delay || pulse delay || asymmetrical on-delay and off-delay || interval || off-delay || symmetrical flashing || safe-guard || star-delta || asymmetrical flashing || bistable
• [Uimp] Rated Impulse Withstand Voltage
  • 5 kV 1.2/50 µs IEC 60664-1
• [Us] Rated Supply Voltage
  • 24...240 V AC/DC
• Voltage Drift
  • +/- 0.2 %/V
• Voltage Range
  • 0.85...1.1 Un
• Width
  • 22.5 mm

Environment

• Ambient Air Temperature For Operation
  • -20-60 °C
• Ambient Air Temperature For Storage
  • -40-70 °C
• Dielectric Strength
  • 2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply with basic insulation || basic insulation
• Directives
  • 2014/35/EU - low voltage directive || 2014/53/EU - radio equipment directive || 2014/30/EU - electromagnetic compatibility
• Electromagnetic Compatibility
  • electrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 || electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 || fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4 || fast transients immunity test - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4 || surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5 || surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5 || radiated radio-frequency electromagnetic field immunity test - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6 || electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3 || immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11 || immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11 || radiated emission class B conforming to EN 55022 || conducted emission class A conforming to EN 55022 || electromagnetic field immunity test - test level: 3 V/m level 2 (1.4 GHz...2 GHz) conforming to IEC 61000-4-3 || electromagnetic field immunity test - test level: 1 V/m level 1 (2...2.7 GHz) conforming to IEC 61000-4-3
• Immunity To Microbreaks
  • 10 ms
• Ip Degree Of Protection
  • housing IP40 IEC 60529 || front face IP40 IEC 60529 || terminals IP20 IEC 60529
• Pollution Degree
  • 3 IEC 60664-1
• Product Certifications
  • CE || CSA || KC || UL || CCC || EAC || DNV-GL
• Relative Humidity
  • 95-95 % 25-55 °C
• Shock Resistance
  • 15 gn not operating 11 ms IEC 60068-2-27 || 5 gn in operation 11 ms IEC 60068-2-27
• Standards
  • IEC 61000-6-1 || IEC 61000-6-2 || IEC 61000-6-4 || EN 61812-1 || IEC 61000-6-3
• Vibration Resistance
  • 20 m/s² 10-150 Hz)IEC 60068-2-6

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • X
• Circularity Profile
  • ENVEOLI1401008EN
• Environmental Disclosure
  • ENVPEP1401008EN
• Eu Rohs Directive
  • Pro-active compliance (Product out of EU RoHS legal scope)
• Mercury Free
  • Yes
• Reach Regulation
  • Reference contains Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Sustainable Offer Status
  • Green Premium product

Specifications

• Device Short Name
  • RENF22
• Operating System
  • Android
• Product Or Component Type
  • multifunction relay
• Range Of Product
  • Harmony Timer Relays
• Software Designation
  • Zelio NFC downloadable from Google Play store)
• Software Version
  • V4.4 and above
