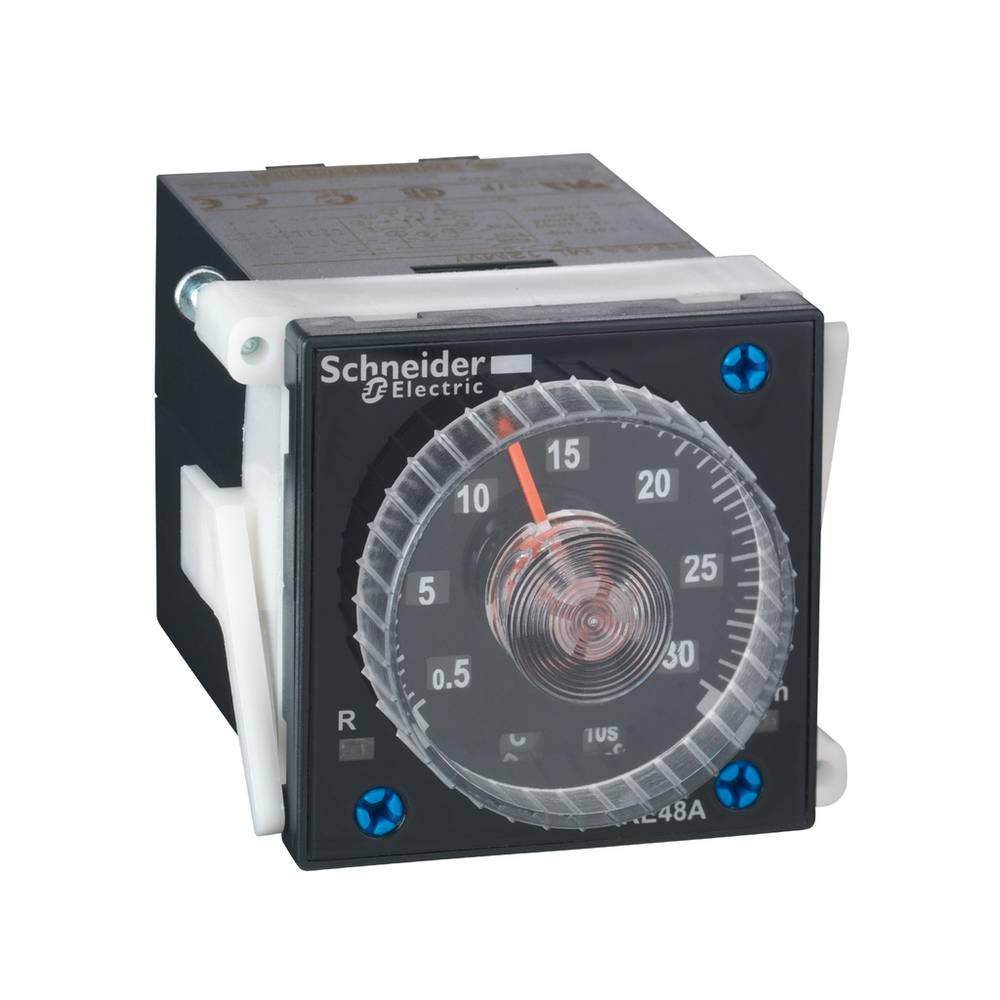

Schneider Electric RE48AML12MW
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Harmony RE48 timing relay can be set between 0.2 seconds and 300 hours, has an output rating of 5A, is 48mm wide and can be supplied with 24V to 240V AC. It is a plug-in device, meaning it is quick and easy to install with the need for tools. It also offers a sealable cover, simple and precise settings with rotary trimmers. It is designed for both panel mooting or socket plug in, this gives more flexibility in designing installations and stocking spares. Multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. Status display with 2 LEDs, visually inspect the status of you system without specialized tools. 0 0 0 0 0 0 0 0 0 0 0 0 0multifunction relay, Harmony Timer Relays, 5A, 2CO, 0.02s...300h, time delay, 24...240V AC DC
Schneider Electric RE48AML12MW is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Breaking Capacity
- 1250 VA
- Control Type
- selector switch front panel
- Electrical Durability
- 100000 cycles
- Housing Material
- self-extinguishing
- Local Signalling
- for output relay state 1 LED (yellow) || for flashing: relay energised timing in progress LED indicator (green) || for on steady: relay energised, no timing in progress LED indicator (green)
- Marking
- CE
- Maximum Switching Current
- 5 A
- Maximum Switching Voltage
- 250 V AC/DC
- Mechanical Durability
- 30000000 cycles
- Minimum Pulse Duration
- 20 ms
- Minimum Switching Current
- 100 mA
- Mounting Support
- base mounted: socket || panel mounted: system supplied with the product
- Net Weight
- 0.14 kg
- On-Load Factor
- 100 %
- Output Voltage
- 240 V 5 A AC-12 || 30 V 2 A DC-13 || 240 V 1.5 A AC-15
- Pick Up Duration
- 55 ms
- Power Consumption In Va
- 1.1 VA 24 V || 4.8 VA 240 V
- Power Consumption In W
- 0.5 W 24 V || 1.7 W 240 V
- Product Front Plate Size
- 48 x 48 mm
- Repeat Accuracy
- +/- 0.2 % of the maximum setting value IEC 61812-1
- Reset Time
- 25 ms on de-energisation
- Setting Accuracy Of Time Delay
- +/- 5 % of full scale 25 °C IEC 61812-1
- Surge Withstand
- 1 kV differential mode IEC 61000-4-5 level 3 || 2 kV common mode IEC 61000-4-5 level 3
- Temperature Drift
- +/- 0.02 %/°C of the maximum setting value IEC 61812-1
- Voltage Drift
- +/- 0.2 %/V of the maximum setting value 48...240 V || +/- 1 %/V of the maximum setting value 24...48 V
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -20-50 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Dielectric Strength
- 1 kV 1 mA/1 minute IEC 61812-1
- Disturbance Radiated/Conducted
- class B 0.15...30 MHz EN 55022 (EN 55011 group 1)
- Humidity Drift
- +/- 0.05 %/%RH of the maximum setting value IEC 61812-1
- Immunity To Microbreaks
- 10 ms
- Immunity To Radioelectric Fields
- 10 V 0.15...80 MHz)IEC 61000-4-6 level 3
- Immunity To Voltage Dips
- 30 % / 10 ms IEC 61000-4-11 || 60 % / 100 ms IEC 61000-4-11 || 95 % / 5 s IEC 61000-4-11
- Ip Degree Of Protection
- IP40 IEC 60529 housing) || IP50 IEC 60529 front face)
- Product Certifications
- UL || cULus || CSA || C-tick
- Protection Against Electric Shocks
- 4 kV class III IEC 60664-1 || 4 kV class III IEC 61812-1
- Relative Humidity
- 93-93 % without condensation IEC 60068-2-3
- Resistance To Electromagnetic Fields
- 10 V/m 26 MHz to 1 GHz IEC 61000-4-3 level 3
- Resistance To Electrostatic Discharge
- 6 kV in contact IEC 61000-4-2 level 3 || 8 kV in air IEC 61000-4-2 level 3
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4 level 4 capacitive connecting clip) || 4 kV IEC 61000-4-4 level 4 direct)
- Standards
- IEC 61812-1 || EN 50081-1/2 || 93/68/EEC || 89/336/EEC || EN 50082-1/2 || IEC 60669-2-3 || 73/23/EEC
- Vibration Resistance
- 0.35 mm 10-55 Hz)IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1512002EN
- Environmental Disclosure
- ENVPEP1512002EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Component Name
- RE48A
- Contacts Type And Composition
- 2 C/O timed contacts, AgNi (cadmium free)
- Discrete Output Type
- relay
- Electrical Connection
- plug-in sub-base 11
- Line Rated Current
- 5 A
- Product Or Component Type
- multifunction relay
- Range Of Product
- Harmony Timer Relays
- Time Delay Range
- 0.5...30 s || 5...300 s || 0.2...12 min || 0.5...30 h || 2...120 s || 0.05...3 s || 0.2...12 s || 0.02...1.2 s || 2...120 min || 5...300 min || 0.5...30 min || 5...300 h || 2...120 h || 0.2...12 h
- Time Delay Type
- power on-delay || interval || off-delay || symmetrical flashing
- [Us] Rated Supply Voltage
- 24...240 V AC/DC 50/60 Hz
- Voltage Range
- 0.85...1.1 Us AC || 0.9...1.1 Us DC
