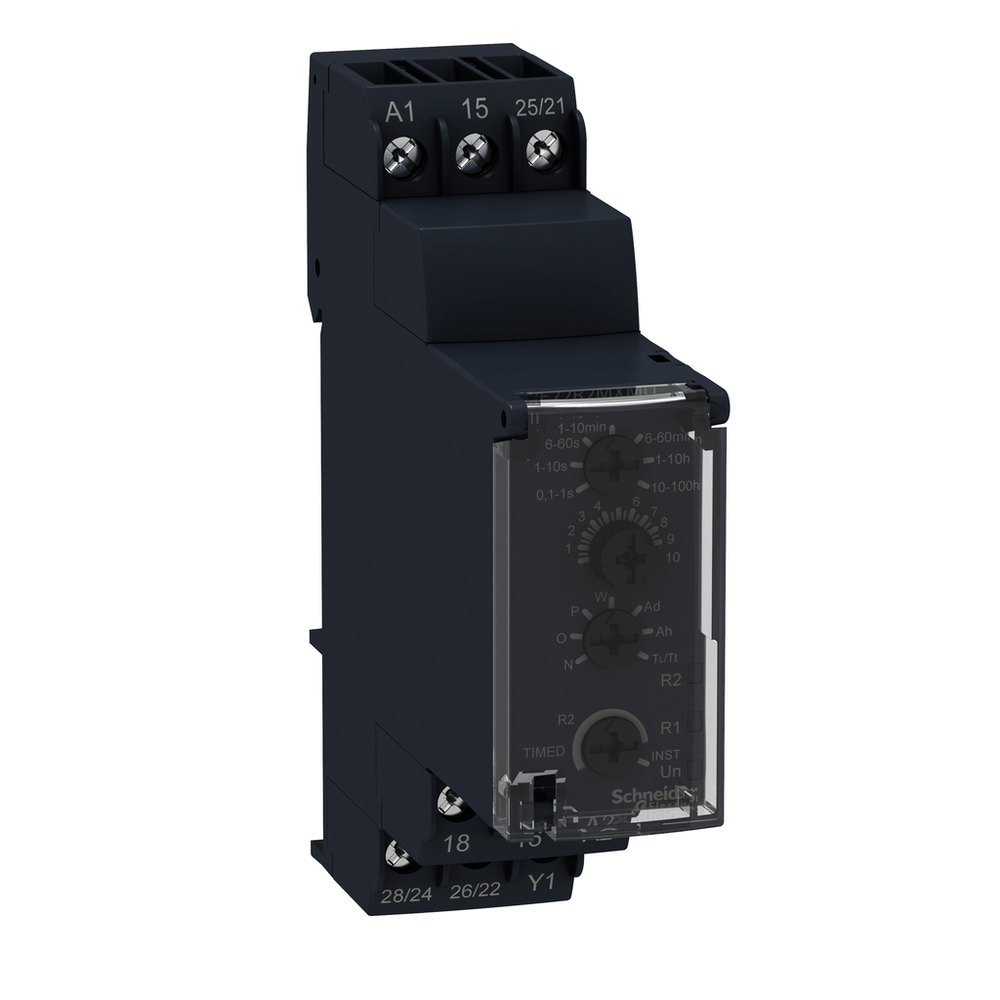

Schneider Electric RE22R2MXMU
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Harmony RE22 modular multi function timer can be set between 0.1 seconds and 100 hours." "It provides multi functions and it is mountable on DIN rail." "This modular multi function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers." "It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device." "It also offers a sealable cover, simple and precise settings with rotary trimmers." "Selectable timing range offers a one stop solution for your power management system." "multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC." 0 0 0 0 0 0 0 0 0multifunction relay, Harmony Timer Relays, 8A, 2CO, 0.1s…100h, bistable, 24V DC or 24...240V AC DC
Schneider Electric RE22R2MXMU is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Breaking Capacity
- 2000 VA
- Connections - Terminals
- screw terminals, 2 x 1.5 mm² with cable end || screw terminals, 2 x 2.5 mm² without cable end
- Contacts Type And Composition
- 1 C/O timed contact || 1 C/O timed or instantaneous contact
- Control Type
- rotary knob front panel
- Electrical Durability
- 100000 cycles for resistive load, 8 A at 250 V, AC
- Housing Material
- self-extinguishing
- Immunity To Microbreaks
- 10 ms
- Insulation Resistance
- 100 MOhm 500 V DC IEC 60664-1
- Maximum Delay Response
- 100 ms
- Maximum Switching Current
- 8 mA
- Maximum Switching Voltage
- 250 V
- Mechanical Durability
- 10000000 cycles
- Minimum Pulse Duration
- 30 ms || 100 ms under load
- Minimum Switching Current
- 10 mA 5 V
- Mounting Position
- any position in relation to normal vertical mounting plane
- Mounting Support
- 35 mm DIN rail conforming to IEC 60715
- Net Weight
- 0.09 kg
- Power Consumption In Va
- 50-50 VA 240 V AC
- Power Consumption In W
- 0.7 W 24 V DC
- Repeat Accuracy
- +/- 0.5 % IEC 61812-1
- Reset Time
- 120 ms on de-energisation
- Safety Reliability Data
- B10d = 170000 || MTTFd = 182.6 years
- Setting Accuracy Of Time Delay
- +/- 10 % of full scale 25 °C IEC 61812-1
- Status Led
- Green LED flashing)timing in progress || Green LED steady)power ON || Yellow LEDrelay energised
- Supply Frequency
- 50...60 Hz +/- 5 %
- Temperature Drift
- +/- 0.05 %/°C
- Tightening Torque
- 0.6-1 N.m IEC 60947-1
- Time Delay Range
- 0.1...1 s || 1...10 h || 1...10 s || 6...60 min || 10...100 h || 6...60 s || 1...10 min
- Time Delay Type
- pulse delay || safe-guard || bistable || interval
- [Uimp] Rated Impulse Withstand Voltage
- 5 kV 1.2-50 µs IEC 60664-1 || 5 kV IEC 61812-1
- [Us] Rated Supply Voltage
- 24...240 V AC || 24 V DC
- Voltage Drift
- +/- 0.2 %/V
- Voltage Range
- 0.85...1.1 Us
- Width
- 22.5 mm
Environment
- Ambient Air Temperature For Operation
- -20-60 °C
- Ambient Air Temperature For Storage
- -30-60 °C
- Dielectric Strength
- 2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1
- Directives
- 2006/95/EC - low voltage directive || 2004/108/EC - electromagnetic compatibility
- Electromagnetic Compatibility
- electrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 || electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 || fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4 || fast transients immunity test - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4 || surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5 || surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5 || radiated radio-frequency electromagnetic field immunity test - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6 || electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3 || immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11 || immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11
- Ip Degree Of Protection
- housing IP40 IEC 60529 || front face IP50 IEC 60529 || terminal block IP20 IEC 60529
- Product Certifications
- CSA || CCC || GL || cULus || EAC || CE || RCM
- Relative Humidity
- 93-93 %, without condensation IEC 60068-2-30
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
- Standards
- IEC 61812-1 || IEC 61000-6-1 || IEC 61000-6-3 || IEC 61000-6-4 || IEC 61000-6-2
- Vibration Resistance
- 20 m/s² 10-150 Hz)IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1401008EN
- Environmental Disclosure
- ENVPEP1401008EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Device Short Name
- RE22
- Discrete Output Type
- relay
- Nominal Output Current
- 8 A
- Product Or Component Type
- multifunction relay
- Range Of Product
- Harmony Timer Relays
