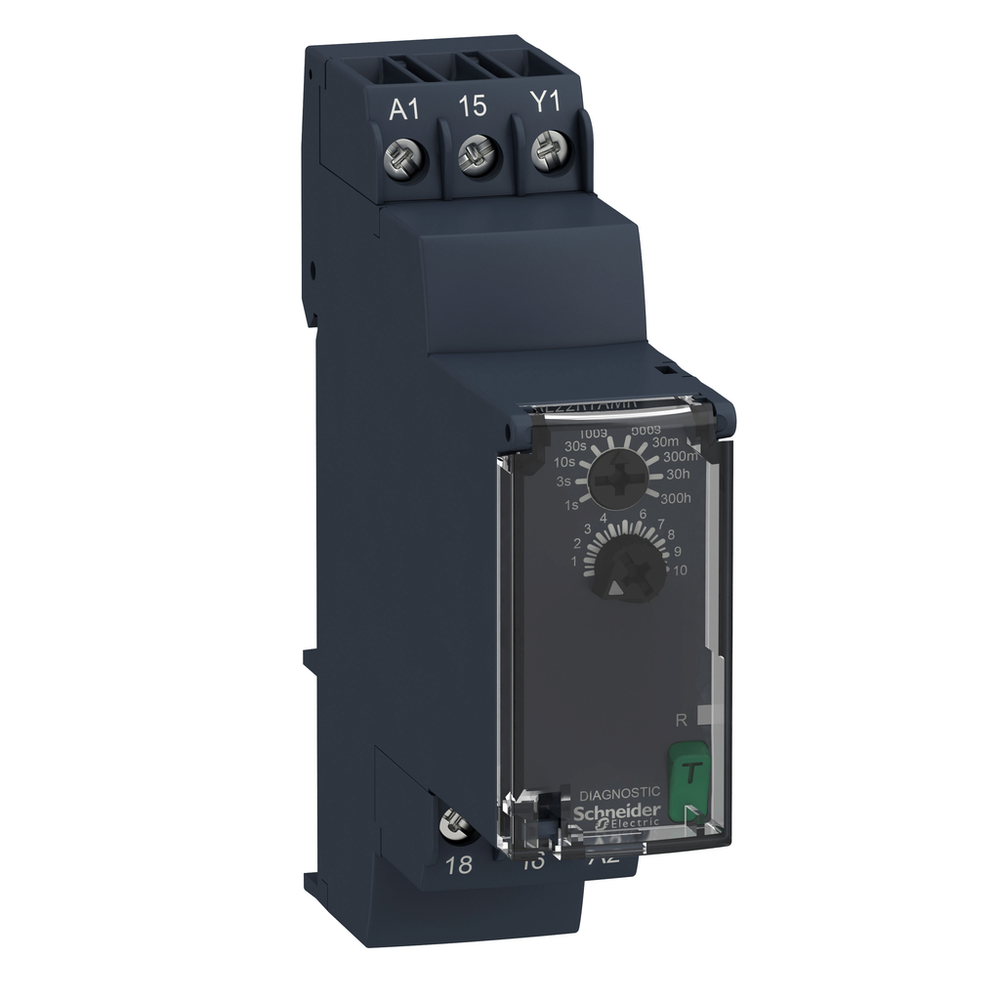

Schneider Electric RE22R1AMR
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Harmony RE22 modular dual function timer can be set between 0.05 seconds and 300 hours, has an output rating of 8 amperes and it is 22.5 millimeters wide. It provides function A and function Aw and it is mountable on DIN rail. This modular dual function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Selectable timing range offers a one stop solution for your power management system. Dual function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0dual function relay, Harmony Timer Relays, A, 1 CO, 0.05s…300h, power on delay, 24...240V AC DC
Schneider Electric RE22R1AMR is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
- Contacts Type And Composition
- 1 C/O timed contact, cadmium free
- Control Type
- rotary knob || diagnostic button
- Creepage Distance
- 4 kV/3 IEC 60664-1
- Electrical Durability
- 100000 cycles, 8 A at 250 V, AC-1 || 100000 cycles, 2 A at 24 V, DC-1
- Housing Material
- self-extinguishing
- Immunity To Microbreaks
- 10 ms
- Input Voltage
- <= 2.4 V
- Insulation Resistance
- 100 MOhm 500 V DC IEC 60664-1
- Maximum Delay Response
- 100 ms
- Maximum Switching Current
- 8 A
- Maximum Switching Voltage
- 250 V AC
- Mechanical Durability
- 10000000 cycles
- Minimum Pulse Duration
- 100 ms with load in parallel || 30 ms
- Minimum Switching Current
- 10 mA 5 V DC
- Mounting Position
- any position
- Mounting Support
- 35 mm DIN rail conforming to IEC 60715
- Net Weight
- 0.1 kg
- Overvoltage Category
- III IEC 60664-1
- Power Consumption In Va
- 3-3 VA 240 V AC
- Power Consumption In W
- 1.5 W 240 V DC
- Repeat Accuracy
- +/- 0.5 % IEC 61812-1
- Reset Time
- 120 ms on de-energisation
- Safety Reliability Data
- MTTFd = 308.2 years || B10d = 280000
- Setting Accuracy Of Time Delay
- +/- 10 % of full scale 25 °C IEC 61812-1
- Status Led
- Green LED backlight steady)dial pointer indication || Yellow LED steady)output relay energised || Yellow LED fast flashing)timing in progress and output relay de-energised || Yellow LED slow flashing)timing in progress and output relay energised
- Supply Frequency
- 50...60 Hz +/- 5 %
- Switching Capacity In Va
- 2000 VA
- Temperature Drift
- +/- 0.05 %/°C
- Tightening Torque
- 0.6-1 N.m IEC 60947-1
- Time Delay Range
- 3...30 s || 30...300 s || 10...100 s || 0.05...1 s || 1...10 s || 30...300 h || 30...300 min || 0.3...3 s || 3...30 h || 3...30 min
- Time Delay Type
- power on-delay
- [Uimp] Rated Impulse Withstand Voltage
- 5 kV 1.2-50 µs IEC 60664-1
- [Us] Rated Supply Voltage
- 24...240 V AC/DC 50/60 Hz
- Voltage Drift
- +/- 0.2 %/V
- Voltage Range
- 0.85...1.1 Us
- Width
- 22.5 mm
Environment
- Ambient Air Temperature For Operation
- -20-60 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Dielectric Strength
- 2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply basic insulation IEC 61812-1
- Directives
- 2006/95/EC - low voltage directive || 2004/108/EC - electromagnetic compatibility
- Electromagnetic Compatibility
- fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4 || surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5 || surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5 || electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 || electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3 || conducted RF disturbances - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6 || fast transient bursts - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4 || immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11 || immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11
- Ip Degree Of Protection
- housing IP40 IEC 60529 || front face IP50 IEC 60529 || terminals IP20 IEC 60529
- Pollution Degree
- 3 IEC 60664-1
- Product Certifications
- CE || UL || GL || CCC || EAC || RCM || CSA
- Relative Humidity
- 95-95 % 25-55 °C
- Shock Resistance
- 15 gn not operating 11 ms IEC 60068-2-27 || 5 gn in operation 11 ms IEC 60068-2-27
- Standards
- UL 508 || IEC 61812-1
- Vibration Resistance
- 20 m/s² 10-150 Hz)IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1401008EN
- Environmental Disclosure
- ENVPEP1401008EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Device Short Name
- RE22
- Discrete Output Type
- relay
- Nominal Output Current
- 8 A
- Product Or Component Type
- dual function relay
- Range Of Product
- Harmony Timer Relays
