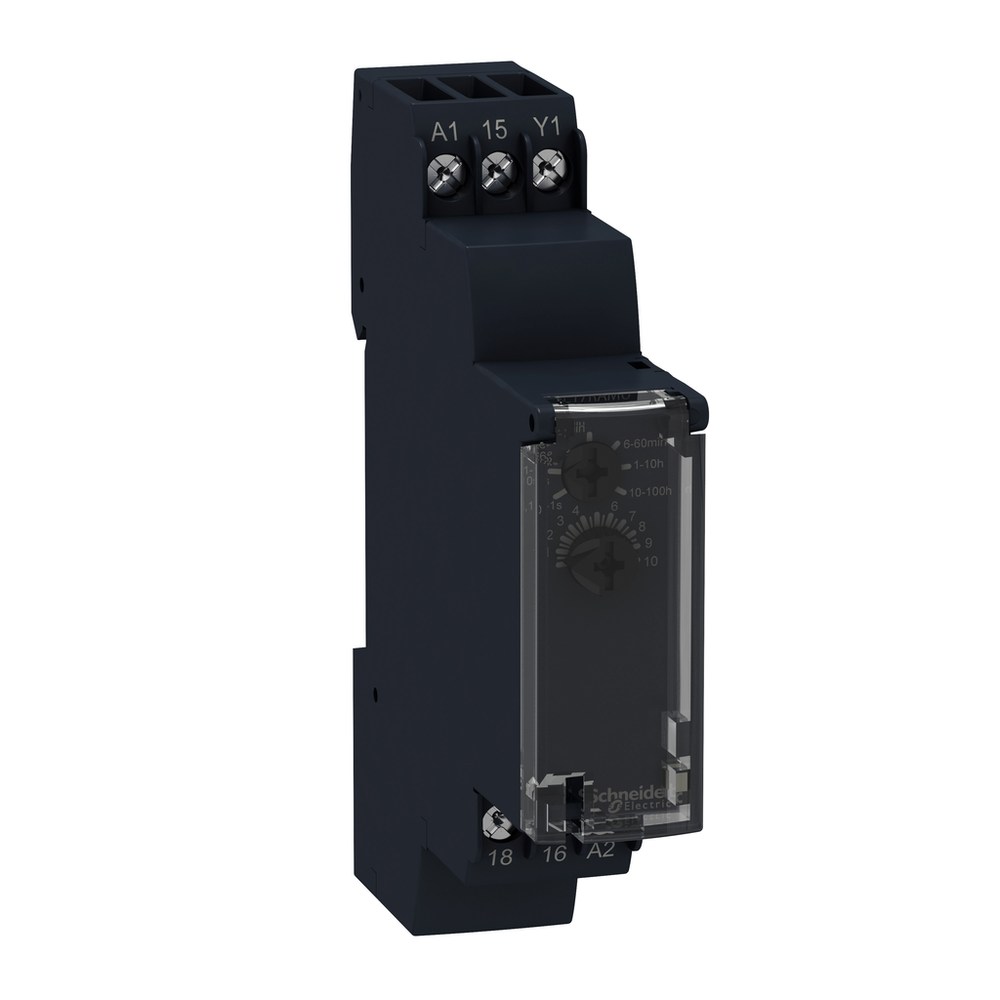

Schneider Electric RE17LCBM
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Harmony RE17L timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 0.7A, is 17.5mm wide and can be supplied with 24V to 240V AC. It also has a solid state output. It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0 0 0single function relay, Harmony Timer Relays, 0.7A, 1s..100h, off delay, solid state output, 24 to 240V AC
Schneider Electric RE17LCBM is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Breaking Capacity
- 0.5 A AC UL || 0.7 A AC 20 °C
- Compatibility Code
- RE17
- Connections - Terminals
- screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
- Control Type
- selector switch front panel
- Creepage Distance
- 4 kV/3 IEC 60664-1
- Dielectric Strength
- 2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1
- Electrical Durability
- 100000000 cycles
- Functionality
- off-delay timing
- Housing Material
- self-extinguishing
- Impulse Duration
- 0.05 s typical
- Input Voltage
- 7 V
- Insulation Resistance
- 100 MOhm 500 V DC IEC 60664-1
- Marking
- CE
- Maximum Delay Response
- 100 ms
- Maximum Leakage Current
- 5 mA
- Maximum Output Current
- 20 A
- Maximum Switching Voltage
- 250 V AC
- Maximum Voltage Drop
- <4 V 3-wire || <8 V 2-wire
- Minimum Switching Current
- 10 mA
- Mounting Position
- any position in relation to normal vertical mounting plane
- Mounting Support
- 35 mm DIN rail conforming to IEC 60715
- Net Weight
- 0.068 kg
- On-Load Factor
- 100 %
- Operating Rate In Hz
- 10 Hz
- Power Consumption In Va
- 0-3 VA 240 V AC
- Repeat Accuracy
- +/- 0.5 % IEC 61812-1
- Reset Time
- 350 ms on de-energisation typical
- Safety Reliability Data
- MTTFd = 353.8 years || B10d = 320000
- Setting Accuracy Of Time Delay
- +/- 10 % of full scale 25 °C IEC 61812-1
- Supply Frequency
- 50...60 Hz +/- 5 %
- Temperature Drift
- +/- 0.05 %/°C
- Tightening Torque
- 0.6-1 N.m IEC 60947-1
- Time Delay Type
- C
- [Uimp] Rated Impulse Withstand Voltage
- 5 kV 1.2/50 µs
- [Us] Rated Supply Voltage
- 24...240 V AC 50/60 Hz
- Voltage Drift
- +/- 0.2 %/V
- Voltage Range
- 0.85...1.1 Us
Environment
- Ambient Air Temperature For Operation
- -20-60 °C
- Ambient Air Temperature For Storage
- -30-60 °C
- Derating Factor
- 5 mA/°C
- Electromagnetic Compatibility
- electrostatic discharge immunity test 6 kV in contact) level 3 IEC 61000-4-2 || electrostatic discharge immunity test 8 kV in air) level 3 IEC 61000-4-2 || susceptibility to electromagnetic fields 10 V/m 80 MHz to 1 GHz) level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test 1 kV capacitive connecting clip) level 3 IEC 61000-4-4 || electrical fast transient/burst immunity test 2 kV direct) level 3 IEC 61000-4-4 || 1.2/50 µs shock waves immunity test 1 kV differential mode) level 3 IEC 61000-4-5 || 1.2/50 µs shock waves immunity test 2 kV common mode) level 3 IEC 61000-4-5 || conducted RF disturbances 10 V 0.15...80 MHz) level 3 IEC 61000-4-6 || voltage dips and interruptions immunity test 0 % 1 cycle) IEC 61000-4-11 || voltage dips and interruptions immunity test 70 % 25/30 cycles) IEC 61000-4-11 || conducted and radiated emissionsclass B EN 55022
- Immunity To Microbreaks
- 20 ms
- Ip Degree Of Protection
- IP20 IEC 60529 terminal block) || IP40 IEC 60529 housing) || IP50 IEC 60529 front panel)
- Product Certifications
- CSA || GL || cULus
- Relative Humidity
- 93-93 % without condensation IEC 60068-2-30
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
- Standards
- 2004/108/EC || IEC 61000-6-3 || 2006/95/EC || IEC 61000-6-2 || IEC 61812-1 || IEC 61000-6-4 || IEC 61000-6-1
- Vibration Resistance
- 20 m/s² 10-150 Hz)IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI121113EN
- Environmental Disclosure
- ENVPEP121117EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Component Name
- RE17L
- Discrete Output Type
- solid state
- Nominal Output Current
- 0.7 A
- Product Or Component Type
- single function relay
- Range Of Product
- Harmony Timer Relays
- Time Delay Range
- 10...100 h || 6...60 s || 6...60 min || 1...10 h || 1...10 s || 1...10 min || 0.1...1 s
- Time Delay Type
- off-delay
- Width
- 17.5 mm
