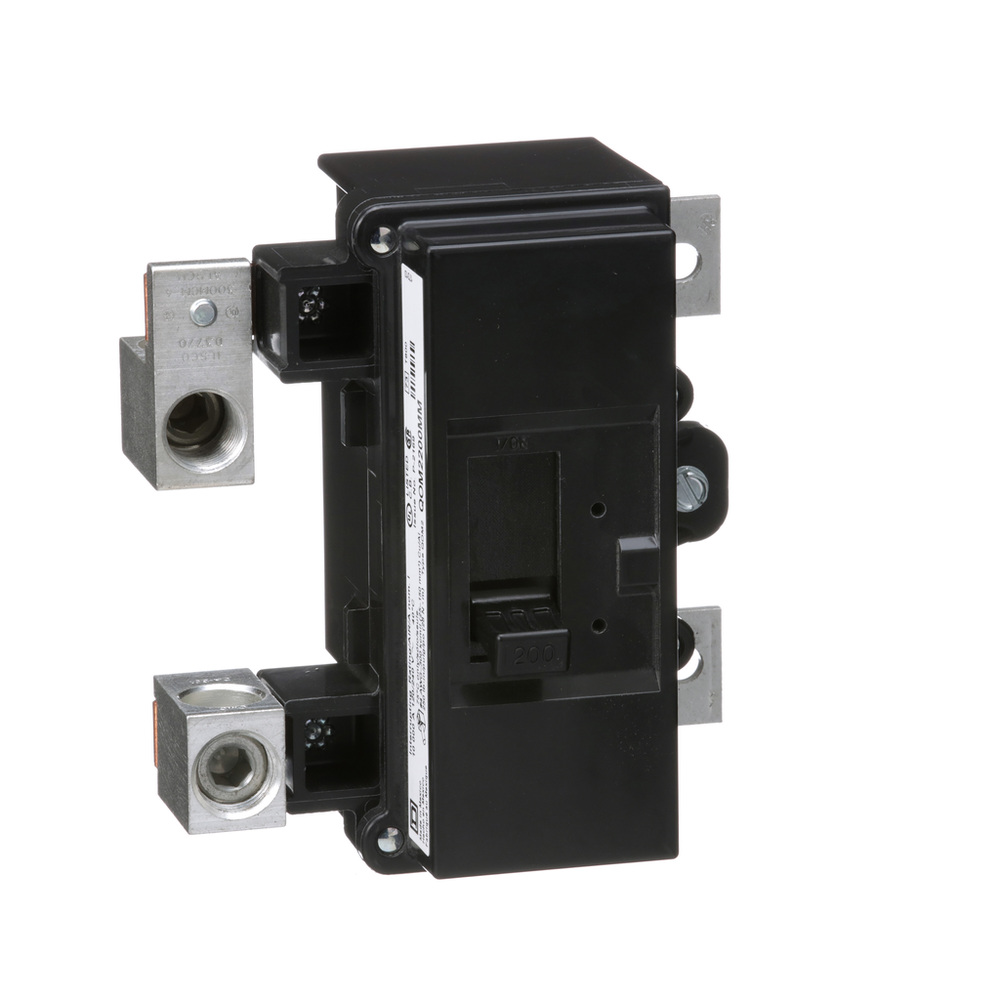

Schneider Electric QOM2200MM
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO main breaker is rated at 200A at 120/240VAC. This unit provides 10kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO breakers use a compact 3/4 inch width design for small system footprint. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555Main breaker, QO, 200A, 2 pole, 120/240VAC, 10kA, bolt on mount, for metering devices
Schneider Electric QOM2200MM is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Awg Gauge
- AWG 4...300 kcmil copper or aluminium
- Breaking Capacity
- 10 kA 120/240 V AC 50/60 Hz
- Depth
- 91 mm
- Height
- 142 mm
- Load Center Type
- main breaker
- Net Weight
- 1.175 kg
- Phase
- 1 phase
- Product Destination
- QO load center
- Tightening Torque
- 6-6 N.m 4-65 mm² (AWG 12...AWG 2/0)
- Width
- 129 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 40 °C
- Product Certifications
- UL Listed || CSA
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
Specifications
- Circuit Breaker Application
- primary main breaker
- Device Short Name
- QOM2
- Electrical Connection
- lugs
- Line Rated Current
- 200 A
- Mounting Mode
- bolt-on
- Poles Description
- 2P
- Product Or Component Type
- circuit breaker
- Range Of Product
- QO
- [Ue] Rated Operational Voltage
- 120/240 V AC
