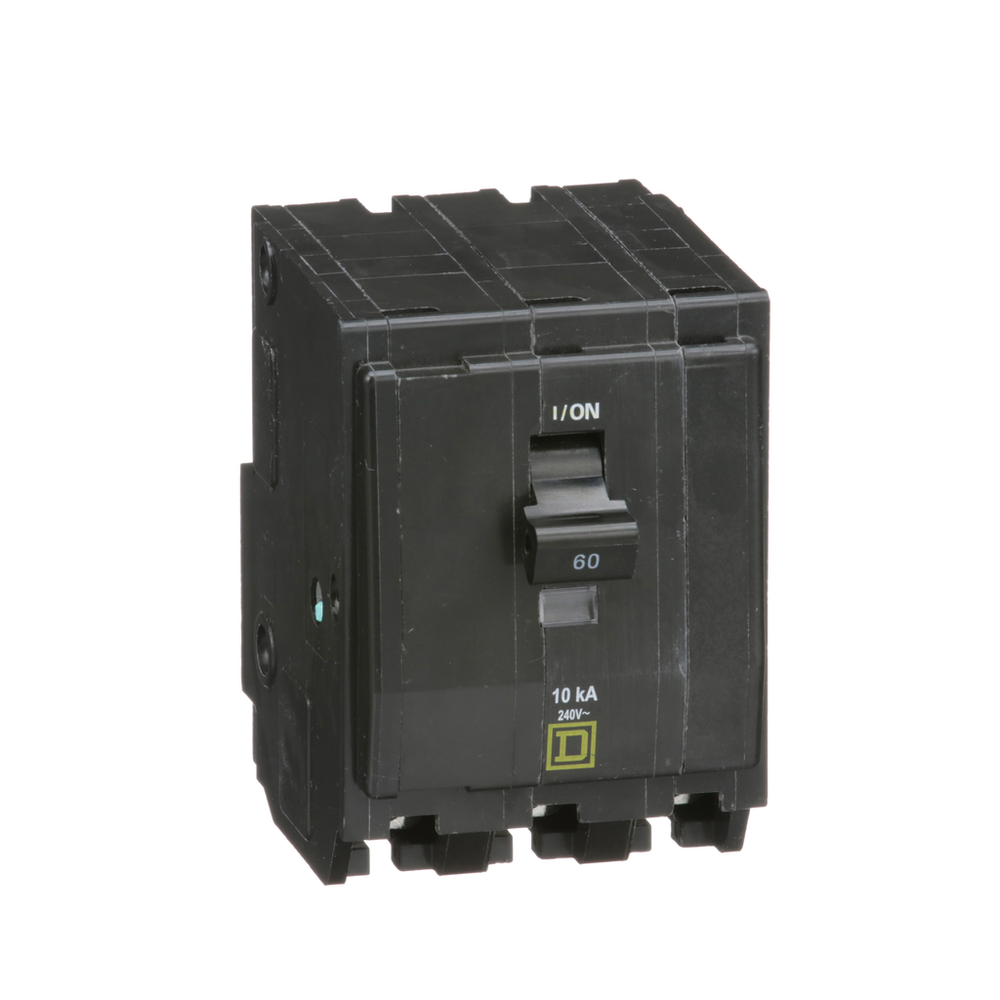

Schneider Electric QO360
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 60A at 120/240VAC. This unit provides 10kA breaking capacity and is plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.Mini circuit breaker, QO, 60A, 3 pole, 120/240VAC, 10kA, plug in mount
Schneider Electric QO360 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Awg Gauge
- AWG 8...AWG 2 copper or aluminium
- Breaking Capacity
- 10 kA 120/240 V AC 50/60 Hz || 10 kA 240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
- Depth
- 74 mm
- Height
- 79 mm
- Net Weight
- 0.386 kg
- Number Of Spaces Required
- 3
- Tightening Torque
- 5-5 N.m
- Width
- 57 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 40 °C
- Product Certifications
- UL Listed || CSA
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive
- Compliant
- Halogen Content Performance
- Halogen free product
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Circuit Breaker Application
- HACR rated
- Circuit Breaker Type
- standard
- Electrical Connection
- box lugs
- Line Rated Current
- 60 A
- Mounting Mode
- plug-in
- Poles Description
- 3P
- Product Or Component Type
- miniature circuit-breaker
- Range Of Product
- QO
- [Ue] Rated Operational Voltage
- 120/240 V AC || 240 V AC || 120 V AC
