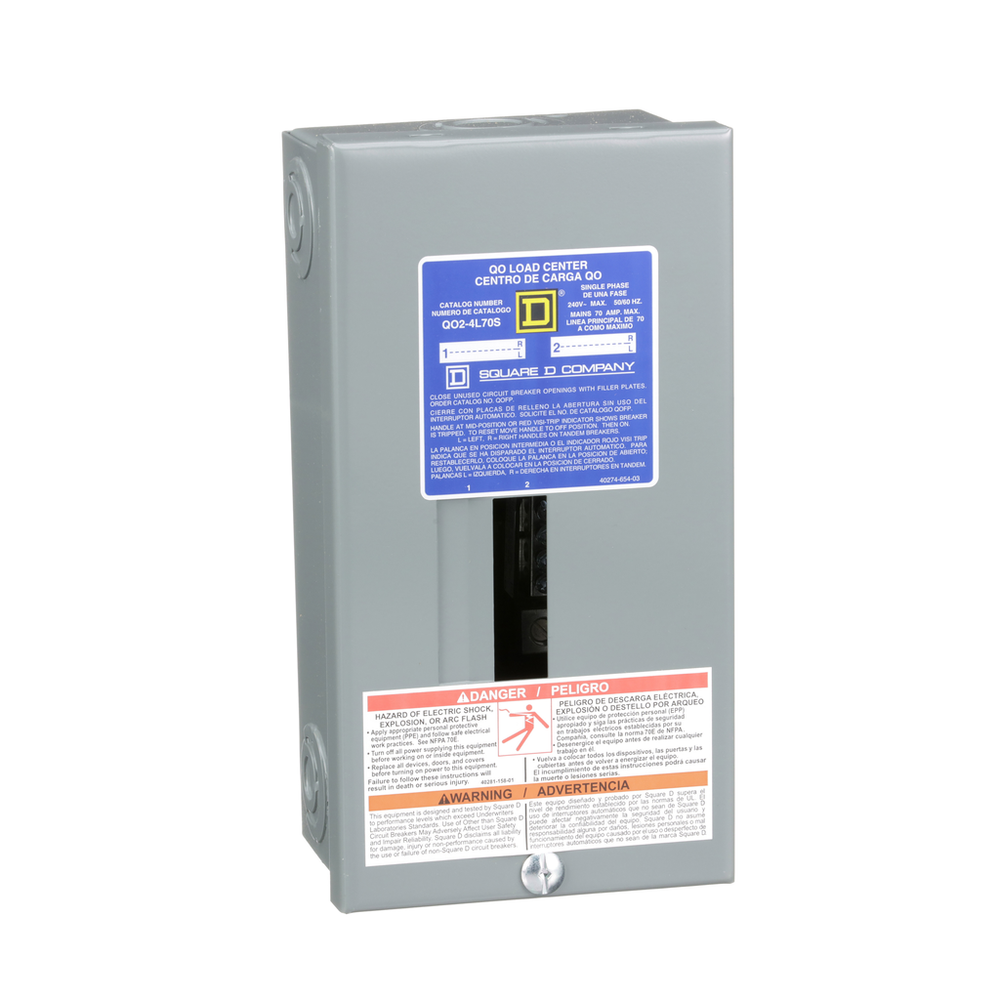

Schneider Electric QO24L70S
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 2 spaces and 4 circuits. This system provides 70A fixed main lugs in a NEMA 1 enclosure. It also includes a surface cover, and is UL rated. QO load center is UL Listed.Load center, QO, 1 phase, 2 spaces, 4 circuits, 70A fixed main lugs, NEMA1, surface cover, UL
Schneider Electric QO24L70S is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Awg Gauge
- AWG 12...AWG 3 aluminium || AWG 14...AWG 4 copper
- Box Number
- 2
- Device Composition
- grounding bar (ordered separately)
- Electrical Connection
- lugs
- Enclosure Material
- welded sheet steel
- Height
- 236 mm
- Line Rated Current
- 70 A
- Load Center Type
- Fixed Mains (lugs)
- Material
- tin plated aluminium busbar
- Number Of Circuits
- 4
- Number Of Spaces
- 2
- Number Of Tandem Circuit Breakers
- 2
- Phase
- 1 phase
- Short-Circuit Current
- 65 kA
- Surface Finish
- baked enamel Gray
- Tightening Torque
- main lugs 35 lb.in, AWG 14...AWG 10, aluminium/copper || main lugs 45 lb.in, AWG 3, aluminium/copper || main lugs 40 lb.in, AWG 8...AWG 4, aluminium/copper || main lugs 35 lb.in, AWG 12...AWG10, aluminium/copper
- [Ue] Rated Operational Voltage
- 120/240 V AC
- Width
- 122 mm
- Wiring Configuration
- 3-wire
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -5 °C || 40 °C
- Nema Degree Of Protection
- NEMA 1 indoor
- Product Certifications
- UL Listed
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Environmental Disclosure
- ENVPEP2212002
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Cover Type
- surface cover
- Product Or Component Type
- Load Center
- Range Of Product
- QO
