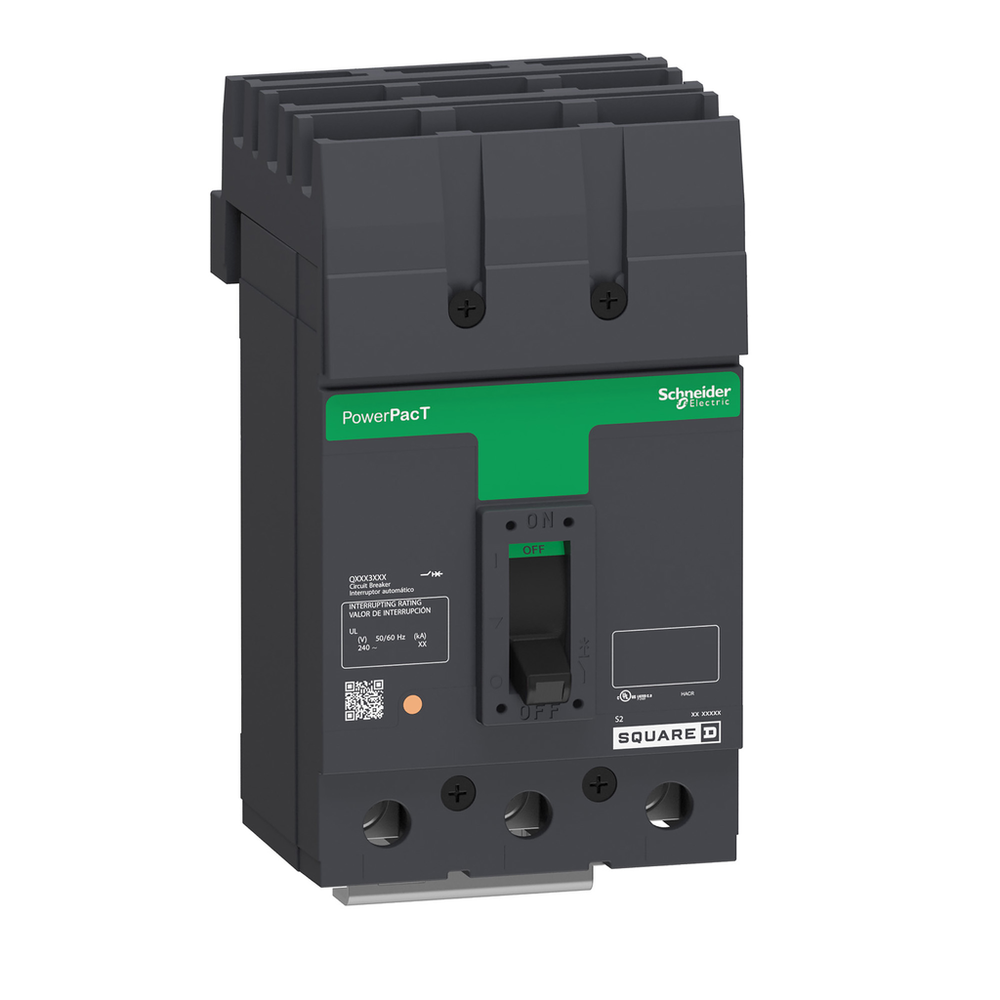

Schneider Electric QGA32200
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT Q, 200A, 3 pole, circuit breaker has an interrupting rating of 65kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.Circuit breaker, PowerPacT Q, 200A, 3 pole, 240VAC, 65kA, I-Line, thermal magnetic, 80%, ABC
Schneider Electric QGA32200 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Breaking Capacity
- 65 kA 120/208 V AC 50/60 Hz UL || 65 kA 240 V AC 50/60 Hz UL
- Breaking Capacity Code
- G
- Circuit Breaker Application
- HACR rated
- Continuous Current Rating
- 80 %
- Control Type
- operating handle
- Depth
- 3.93 in
- Electrical Connection
- I-Line connection, line || lugs, load
- Height
- 6.47 in
- Line Rated Current
- 200-200 A
- 200 A
- Local Signalling
- 1 trip indicator green)
- Magnetic Hold Current
- 1200 A
- Magnetic Tripping Current
- 2400-2400 A
- Mechanical Durability
- 1000 cycles loaded || 5000 cycles no load
- Mounting Height
- 4.5 in
- Mounting Mode
- I-Line bracket)
- Mounting Support
- bracket
- Network Frequency
- 50/60 Hz
- Phase Connection
- ABC
- Poles Description
- 3P
- Tightening Torque
- 28-28 N.m 25-150 mm² (AWG 4...300 kcmil)
- Trip Unit Technology
- thermal-magnetic
- [Ue] Rated Operational Voltage
- 240 V AC 50/60 Hz UL
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV UL
- Utilisation Category
- category A
- Width
- 4.5 in
- Wire Stripping Length
- 22 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 40-70 °C
- Product Certifications
- UL || CSA || NOM
- Standards
- UL || CSA || NEMA || NOM-003-SCFI-2000
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP1406032EN
- Eu Rohs Directive
- Compliant
- Halogen Content Performance
- Halogen free product
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Device Application
- distribution
- Product Name
- PowerPact Q
- Product Or Component Type
- circuit breaker
- Range
- PowerPact
