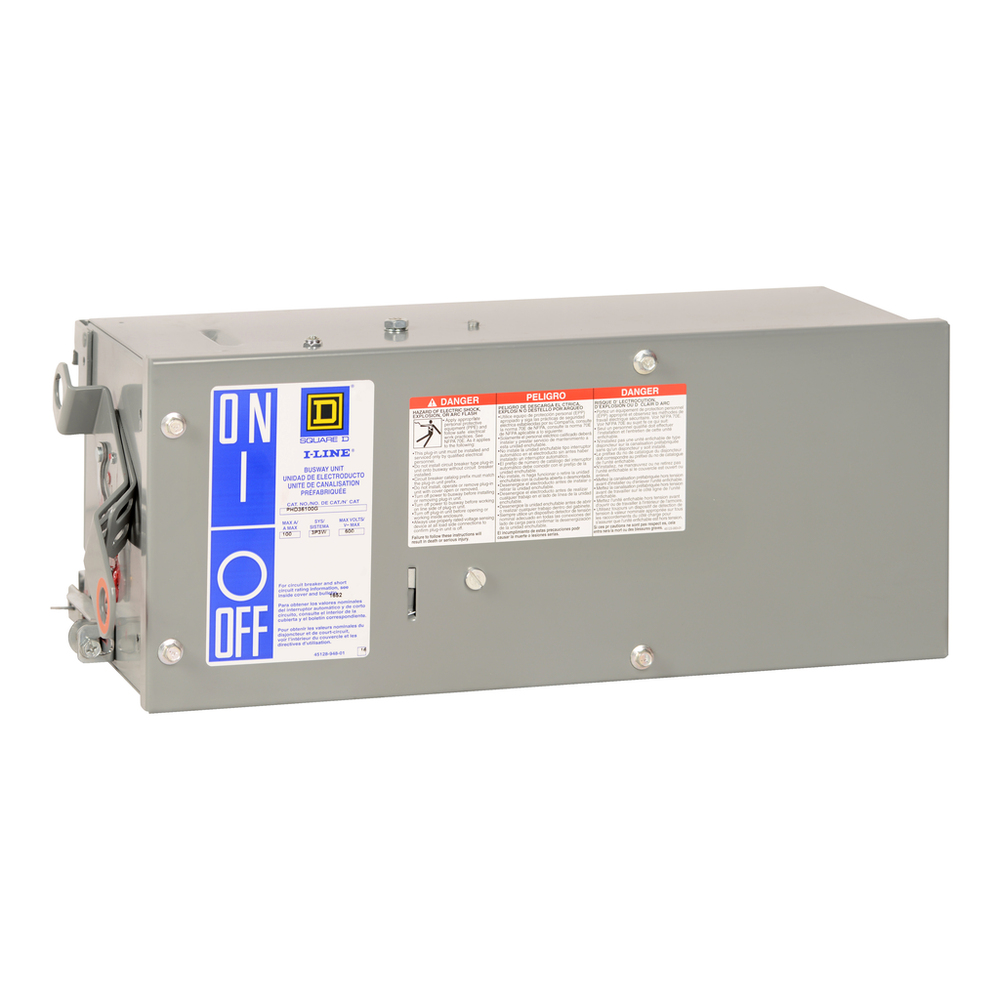

Schneider Electric PHD36100GN
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
I-Line™ Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths and fittings. I-Line plug-in busway has options from 225A to 600A with aluminum or copper conductors. I-Line busway is constructed with three pole and four pole full neutral configurations for system voltages to 600 volts. This busway system is rated to allow 100% of the current to flow continuously. This I-Line plug in unit is for 100A, 600VAC, 3 phase, 4 wire H frame circuit breakers. This circuit breaker has a D interrupting trip rating. This unit includes a ground and neutral. I-Line busway is UL listed and CSA certified.Plug-in unit, I-Line Busway, H-frame, 100A, 3 phase, 4 wire, 600VAC, 14kA, ground, neutral
Schneider Electric PHD36100GN is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Breaking Capacity Code
- D
- Busbar Description
- ground
- Disconnector Device Type
- thermal magnetic circuit breaker 100 A 14 kA 600 V || thermal magnetic circuit breaker 100 A 18 kA 480 V || thermal magnetic circuit breaker 100 A 25 kA 240 V
- Fuse Type
- H
- Level Or Class
- class 5600
- Phase
- 3 phase
- [Ue] Rated Operational Voltage
- 600 V AC 50/60 Hz || 277/480 V AC 50/60 Hz
- Wiring Configuration
- 4-wire
Contractual warranty
- Warranty
- 18 months
Environment
- Product Certifications
- CSA || UL
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP1410002EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Module Type
- H-Frame
- Product Or Component Type
- plug-in unit
- Range Of Product
- I-Line
