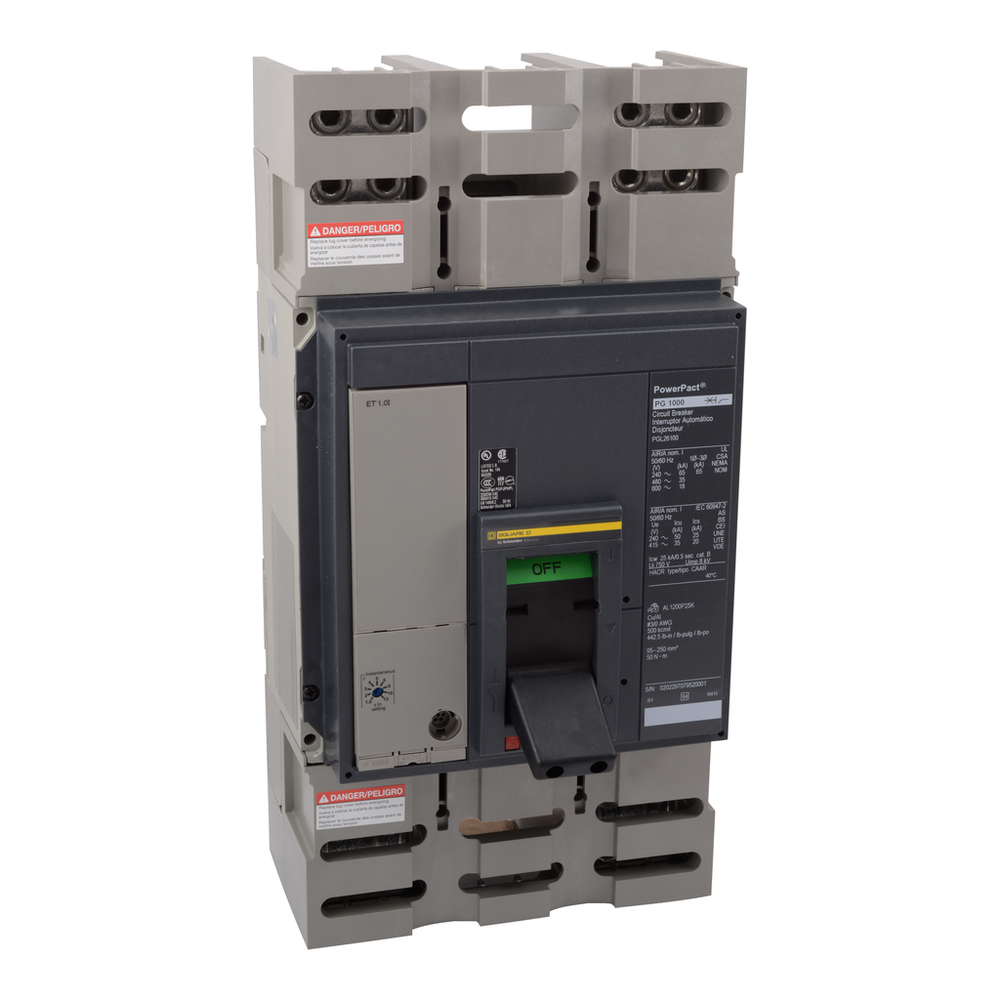

Schneider Electric PGL36120U64AE1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
PowerPacT P-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Power with a 6.0P trip unit and an LSIG function with Modbus communications. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has lugs on both the line and load sides. This PowerPacT P, 1200A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.Circuit breaker, PowerPacT P, 1200A, 3 pole, 600VAC, 18kA, lugs, Micrologic 6.0P, 80%, modbus
Schneider Electric PGL36120U64AE1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Accessory / Separate Part Type
- Modbus connecting cable
- Awg Gauge
- 4 x AWG 3/0...500 kcmil aluminium/copper
- Breaking Capacity
- AIR 65 kA 240 V AC 50/60 Hz UL 489 || AIR 35 kA 480 V AC 50/60 Hz UL 489 || AIR 18 kA 600 V AC 50/60 Hz UL 489 || Icu 50 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 35 kA 380/415 V AC 50/60 Hz IEC 60947-2
- Breaking Capacity Code
- G
- Circuit Breaker Application
- HACR rated
- Communication Interface
- Modbus
- Continuous Current Rating
- 80 %
- Control Type
- toggle
- Depth
- 8.05 in
- Electrical Connection
- lugs, load || lugs, line
- Height
- 16.16 in
- [Ics] Rated Service Breaking Capacity
- 25 kA 240 V AC 50/60 Hz IEC 60947-2 || 20 kA 380/415 V AC 50/60 Hz IEC 60947-2
- Line Rated Current
- 1200-1200 A
- Local Signalling
- 1 trip indicator green)
- Long Time Pick-Up Adjustment Range
- 0.4...1 x Ir
- Net Weight
- 32 lb(US)
- Network Frequency
- 50/60 Hz
- Number Of Slots
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Poles Description
- 3P
- Quantity Per Set
- 1
- Terminal Identifier
- AL1200P25K
- Tightening Torque
- 50-50 N.m 95-240 mm² (4 x AWG 3/0...500 kcmil) || 1.0-1.3 N.m
- Trip Unit Name
- MicroLogic 6.0 P
- Trip Unit Technology
- electronic, power, MicroLogic 6.0 P, LSI
- [Ue] Rated Operational Voltage
- 600 V AC 50/60 Hz UL 489
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
- [Ui] Rated Insulation Voltage
- 750 V IEC 60947-2
- Width
- 8.27 in
- Wire Stripping Length
- 30 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -2-70 °C
- Ambient Air Temperature For Storage
- -50-85 °C
- Ip Degree Of Protection
- front cover IP40
- Operating Altitude
- < 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
- Pollution Degree
- 3 IEC 60947-1
- Product Certifications
- UL || CSA || NOM
- Quality Labels
- CE
- Standards
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI2206033EN
- Environmental Disclosure
- ENVPEP2206033EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Device Application
- distribution
- Product Name
- PowerPact P
- Product Or Component Type
- circuit breaker
- Range
- PowerPact
