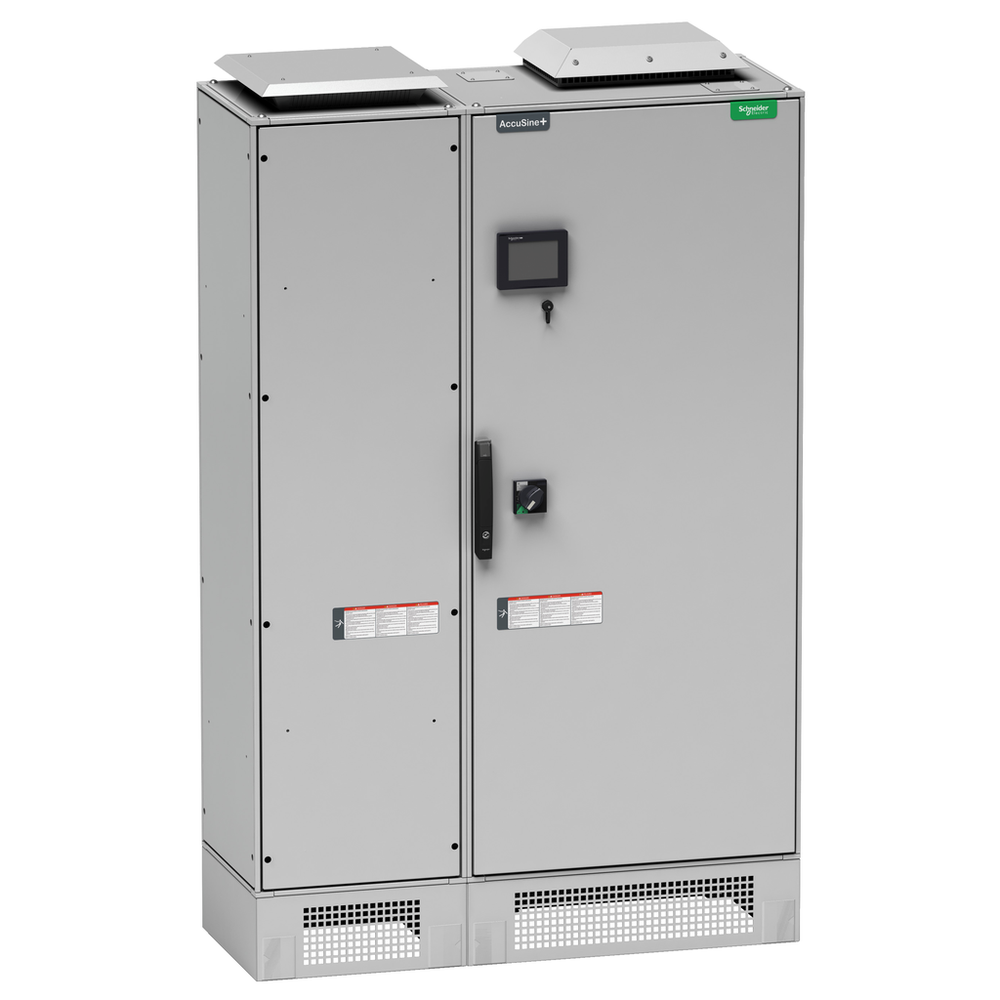

Schneider Electric PCSP047D6N2
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This hardware is an active power correction solution, from AccuSine familly, to help stabilize electrical networks by providing harmonic mitigation and power factor correction, and load balancing. It is specifically designed for harsh electrical conditions, for heavy industrial applications including mission critical environments. This version is UL Type 2, and can be connected on Low Voltage networks rated 480 Volt to 600 Volt. It is specified for a standard Root Mean Square output current rating of 47 Amps. The enclosure is floor standing, allow cable entry from top or bottom and is delivered in RAL7035 light grey. This active power filter achieves above standards performance THDi less or equal to 3%, is certified to CE, UL, IBC 2015 AC156, EAC, RCM. And is designed to IEC 62477-1, IEC 61000-6-2, IEC 61000-6-4, IEC 61439-1, UL508 and IEEE 519-2014. Up to 10 units of different ratings can be paralleled, to achieve a maximum compensation of 3000A per CT set. Frame exterior dimensions are 1300 millimetres in width, 500 millimetres in depth, 2100 millimetres in height and product weight 461 kg.Active harmonic filter 47 amp 500-600 VAC N2 Enclosure
Schneider Electric PCSP047D6N2 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Accessibility For Operation
- front
- Breaking Capacity
- 100 kA
- Control Type
- door-interlocked with rotary handle
- Electromagnetic Compatibility
- conducted EMC, class A EN 61000-6-4
- Enclosure Mounting
- floor-standing
- Function Available
- rear plenum with forced ventilation for high heat flow
- Input Frequency
- 50/60 Hz +/- 3 Hz auto sensing
- Location Of Connection
- top or bottom
- Maximum Permissible Voltage
- 1.1 x Un
- Mounting Location
- indoor
- Network Rated Voltage
- 500-600 V AC
- Neutral Protection Setting
- not provided
- Nominal Output Current
- 47 A
- Operating Mode
- mains current balancing || harmonic cancellation || power factor correction
- Poles Description
- 3P
- Protection Type
- circuit breaker protection
- Reactive Power Rating
- 49 kvar 600 V AC 50/60 Hz
- Wiring Mode
- 3 or 4 wires
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 0-40 °C || 0-50 °C maximum with current derating of 2 % per °C
- Ambient Air Temperature For Storage
- -20-60 °C
- Color
- Light gray RAL 7035)
- Degree Of Protection
- UL type 2
- Depth
- 500 mm
- Environmental Characteristic
- operating 3C2 IEC 60721-3-3 || operating 3S2 IEC 60721-3-3 || storage 3C3 IEC 60721-3-3 || storage 3S3 IEC 60721-3-3
- Height
- 2100 mm
- Impregnation Material
- conformal coated
- Net Weight
- 395 kg
- Operating Altitude
- <= 3280.84 ft (1000 m) 1 % per 100 m
- Product Certifications
- RCM || ABS || CE || cULus
- Relative Humidity
- 0-95 %
- Standards
- EN 61000-6-4 || CSA C22.2 No 14 || UL 60947-1 || UL 508 || EN 60439-1 || CSA C22.2 No 60947-1-07
- Width
- 1300 mm
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Product Name
- AccuSine PCS+
- Product Or Component Type
- active harmonic filter
- Range Of Product
- AccuSine
