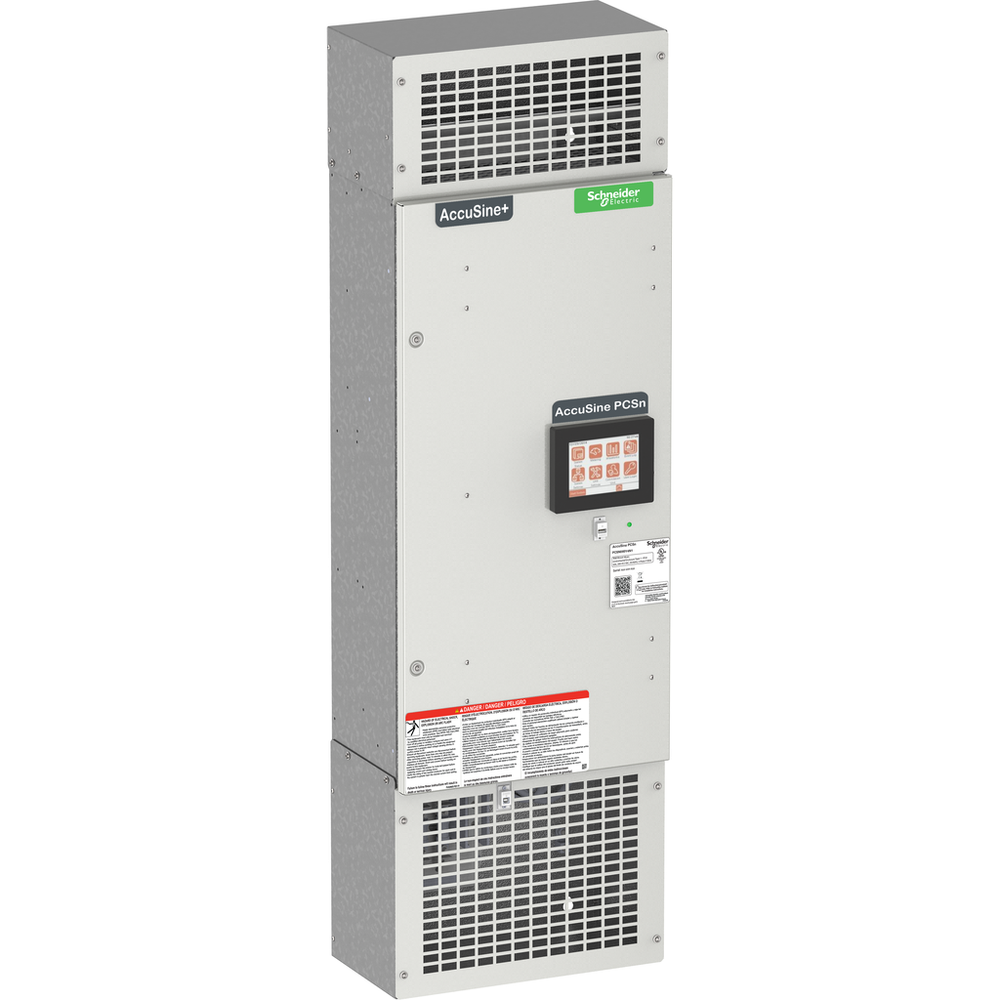

Schneider Electric PCSN060Y4N1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This hardware is an active power correction solution, from AccuSine familly, to help stabilize electrical networks by providing harmonic mitigation and power factor correction, and load balancing. In addition to 3-phase mitigation, it has the ability to compensate for neutral harmonic currents. This version is UL Type 1, and can be connected on Low Voltage networks rated 208 Volt to 415 Volt. It is specified for a standard Root Mean Square output current rating of 60 Amps, 180 Amps neutral. The enclosure is wall mounted, allow cable entry from bottom and is delivered in RAL7035 light grey. This active power filter achieves above standards performance THDi less or equal to 3%, is certified to CE, IBC 2015, EAC, RCM. And is designed to IEC 62477-1, IEC 61000-6-2, IEC 61000-6-4 Class A, IEC 61439-1 and IEEE 519-2014. Up to 12 units in parallel per set of CT; any size unit combination possible (subject to network characteristics). Master capable. Frame exterior dimensions are 440 millimetres in width, 265 millimetres in depth, 960 millimetres in height and product weight 75 kg.PCSN active harmonic filter 60 amp 208-415 VAC - wall-mounted, UL Type 1
Schneider Electric PCSN060Y4N1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Accessibility For Operation
- front
- Electromagnetic Compatibility
- electromagnetic emission, class A EN 61000-6-4 || electromagnetic immunity EN 61000-6-2
- Function Available
- rear plenum with forced ventilation for high heat flow
- Input Frequency
- 50/60 Hz
- Location Of Connection
- bottom
- Maximum Permissible Voltage
- 1.1 x Un
- Mounting Location
- indoor
- Mounting Mode
- wall-mounted
- Network Rated Voltage
- 208-415 V AC
- Nominal Output Current
- 60 A
- Operating Mode
- phase harmonic correction || neutral harmonic correction || mains current balancing || power factor correction
- Poles Description
- 3P + N || 3P
- Protection Type
- without protection
- Reactive Power Rating
- 21.6 kvar 208 V AC 50/60 Hz
- Wiring Mode
- 3 or 4 wires
Environment
- Ambient Air Temperature For Operation
- 0-40 °C || 0-50 °C maximum with current derating of 2 % per °C above 40 °C
- Ambient Air Temperature For Storage
- -20-60 °C
- Color
- Light gray RAL 7035)
- Degree Of Protection
- UL type 1
- Depth
- 10.4 in
- Environmental Characteristic
- operating 3C2 IEC 60721-3-3 || operating 3S2 IEC 60721-3-3 || storage 3C3 IEC 60721-3-3 || storage 3S3 IEC 60721-3-3
- Height
- 56.7 in
- Impregnation Material
- conformal coated
- Net Weight
- 196 lb(US)
- Operating Altitude
- <= 3280.84 ft (1000 m) 1 % per 100 m || 0...4800 m
- Product Certifications
- cULus
- Relative Humidity
- 0-95 % non-condensing
- Standards
- IEC 62477-1 || IEC 61439-1 || EN 61000-6-2 || EN 61000-6-4 || ISO 9001 || IEEE 519-2014 || UL 508
- Width
- 17.5 in
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI1811005EN
- Environmental Disclosure
- ENVPEP1811005EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Product Name
- AccuSine PCSn
- Product Or Component Type
- active harmonic filter
- Range Of Product
- AccuSine
