Description

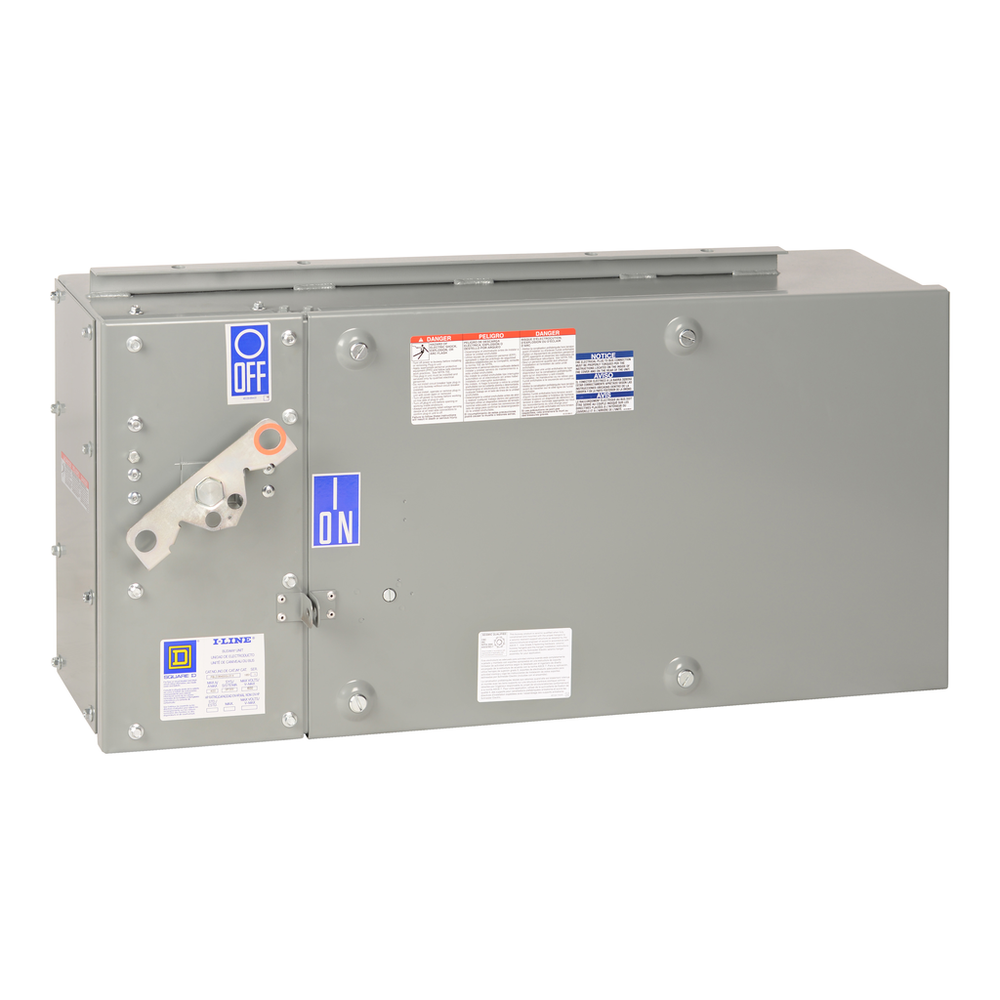

Busway I-Line Breaker Plug-in Unit, 400A, L-Frame, Micrologic 3.3, 14kA-600V, 4W
Schneider Electric PBLD36400GNU31X is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Awg Gauge
- AWG 2/0...500 kcmil 2 phase || AWG 1/0...600 kcmil 2 neutral || AWG 6...300 kcmil 1 ground
- Breaking Capacity
- 25 kA 240 V AC || 18 kA 480 V AC || 14 kA 600 V AC
- Depth
- 367 mm
- Height
- 442 mm
- [Ics] Rated Service Short-Circuit Breaking Capacity
- 80 %
- Line Rated Current
- 400-400 A
- Mounting Mode
- plug-in
- Phase
- 3 phase
- Poles Description
- 3P
- Protection Type
- circuit breaker
- [Ue] Rated Operational Voltage
- 600 V AC
- Width
- 926 mm
- Wiring Configuration
- 4-wire (integral ground bus)
Environment
- Product Certifications
- UL listed file E22182 || CSA C22.2 No 27
- Standards
- UL 857
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Environmental Disclosure
- ENVPEP1410002EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Circuit Breaker Type
- L-Frame
- Product Or Component Type
- plug-in unit
- Range Of Product
- I-Line
- Trip Unit Technology
- electronic, standard, MicroLogic 3.3, LI
