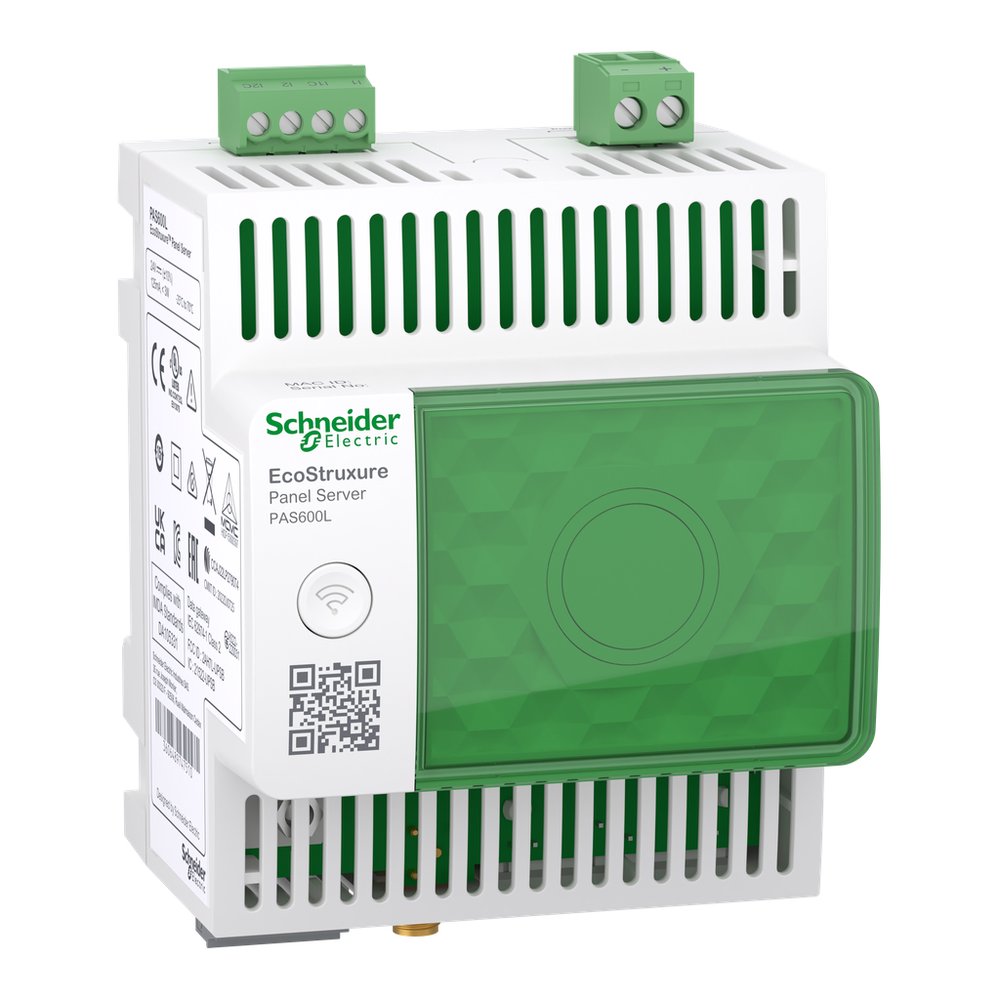

Schneider Electric PAS600L
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
EcoStruxure Panel Server is a gateway, providing connection of wired or unwired smart IoT devices to edge control software or cloud application. Connect wireless devices from Schneider Electric such as PowerTag Energy, PowerLogic HeatTag, Power Tag Ambiant, Power Tag control and others. Connect most of Modbus/RS485 and Modbus/TCP devices from the market including PowerMeters and Protection devices from Schenider Electric. User friendly web-pages offer first-lelvel of monitoring of measurements of all the conected devices including log of all alarms. Simple troubleshooting or the sytem through embedded web-pages with advanced diagnostic informations and logs . Easy commissioning through embedded web-pages or with EcoStruxure Power Commissionig that will offer commissioning reports and advanced features. Product dimensions are as follows: width 71,8 millimetres, depth 70,2 millimetres and height 85 millimetres. 24VDC Power Supply 3W Max. -25°C to +70°C Operating temperature. 5-95% relative humidity. Major certifications including CE, UL/CSA, IEC61010, UL61010, IEC61974-1, Marine certification, IEC61443-4-2, RCM, EAC and UKCA. The gateway can be DIN rail mounted in a modular enclosure. It has IP20 connectors, IM40 front face nose and IP30 on others faces. Two 10/100 Base-T ethernet RJ45 connectors. Modbus RS485 open-style connector. One connector for external Wi-Fi/Bluetooth antenna. Connector for two Digital Inputs for dry contact or WAGES. Direct cellular connection through external LTE router connected through Ethernet or Wi-Fi. Perfect fit for EcoStruxure Edge Software such as Power Monitoring Expert, Power Operations and EcoStruxure Building Operations. Designed for EcoStruxure Cloud Applications such as Facility Expert, Asset Advisor and Resource Advisor.EcoStruxure Panel Server - universal wireless, concentrator modbus gateway 24 VDC
Schneider Electric PAS600L is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Commissioning Interface
- EcoStruxure Power Commission Mobile || web page
- Communication Network Type
- Ethernet, 10/100BASE-T || Wi-Fi 2.4 GHz || wireless, IEEE 802.15.4 || Modbus RTU, Modbus RTU master even/odd or none 1.2...115.2 kbit/s
- Communication Port Protocol
- Modbus TCP || DHCP || HTTPS || NTP/SNTP || IPv4 || IPv6 || TCP/IP
- Communication Port Support
- 2 RJ45 ETHERNET || screw terminal block RS485
- Communication Service
- Device Profile for Web Services (DPWS) || Modbus TCP client || Modbus TCP server || SNTP client || DHCP client || DHCP server
- Connections - Terminals
- discrete I/O screw terminal block top) 0.14-1.5 mm² || power supply screw terminal block top) 1.5-2.5 mm² || communication screw terminal block bottom) 0.14-1.5 mm²
- Connector Type
- RP-SMA antenna
- Depth
- 70.2 mm
- Function Available
- embedded web page for configuration and upgrade || diagnosis capabilities || diagnostic report || diagnostics on communication || energy management || with integrated web server || firmware update || backup/restore configuration || configurable event || CSV export
- Height
- 85 mm
- Memory Capacity
- 512 MB NAND
- Mounting Mode
- clip-on
- Mounting Support
- DIN rail
- Number Of Inputs
- 2-2 dry-contact/pulse
- Number Of Slave
- 64 Modbus RTU || 40 IEEE 802.15.4
- Product Certifications
- CE || cULus || RCM || UKCA || FCC || IC
- Product Specific Application
- Wireless Schneider Electric devices ecosystem
- Range Compatibility
- EcoStruxure (Facility Expert) || EcoStruxure (Building Operation) || EcoStruxure (Power Operation) || EcoStruxure (Power Monitoring Expert) || EcoStruxure (Asset Advisor)
- Realtime Clock
- with RTC-battery set || without any user calibration
- Standards
- IEC 61010 || IEC 61010-1 || IEC 61010-2-201 || UL 61010 || UL 61010-1 || UL 61010-2-201 || CSA C22.2 No 61010-1-12 || CSA C22.2 No 61010-2-201 || IEC 62974-1 || IEC 62443-4-1 || IEC 61326-1 || EN 301-489-1 || EN 301-489-17 || EN 55032 || CISPR 11 || EN 300-328 || IEEE 802.15.4 || IEEE 802.11b/g/n
- Tightening Torque
- discrete I/O 0.25-0.25 N.m || power supply 0.6-0.6 N.m || communication 0.25-0.25 N.m
- Time Synchronisation Protocol
- NTP || SNTP
- Topology
- separate Ethernet network || switched Ethernet network
- Web Services
- HTTPS server
- Width
- 72 mm
- Wire Stripping Length
- power supply: 7 mm || communication: 7 mm || discrete I/O: 7 mm
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Ip Degree Of Protection
- IP40 front face) || IP20 casing)
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Pollution Degree
- 3
- Relative Humidity
- 5-95 %
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Benzene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2008001_V2
- Environmental Disclosure
- ENVPEP2008001_V2
- Eu Rohs Directive
- Compliant
- Halogen Content Performance
- Halogen free plastic parts & cables product
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Communication Gateway
- Ethernet TCP/IP to wireless devices || Ethernet/serial
- Device Application
- gateway
- Device Short Name
- PAS600L
- Product Name
- Panel Server Universal
- Product Or Component Type
- gateway
- Range
- EcoStruxure
- [Us] Rated Supply Voltage
- 24 V DC
