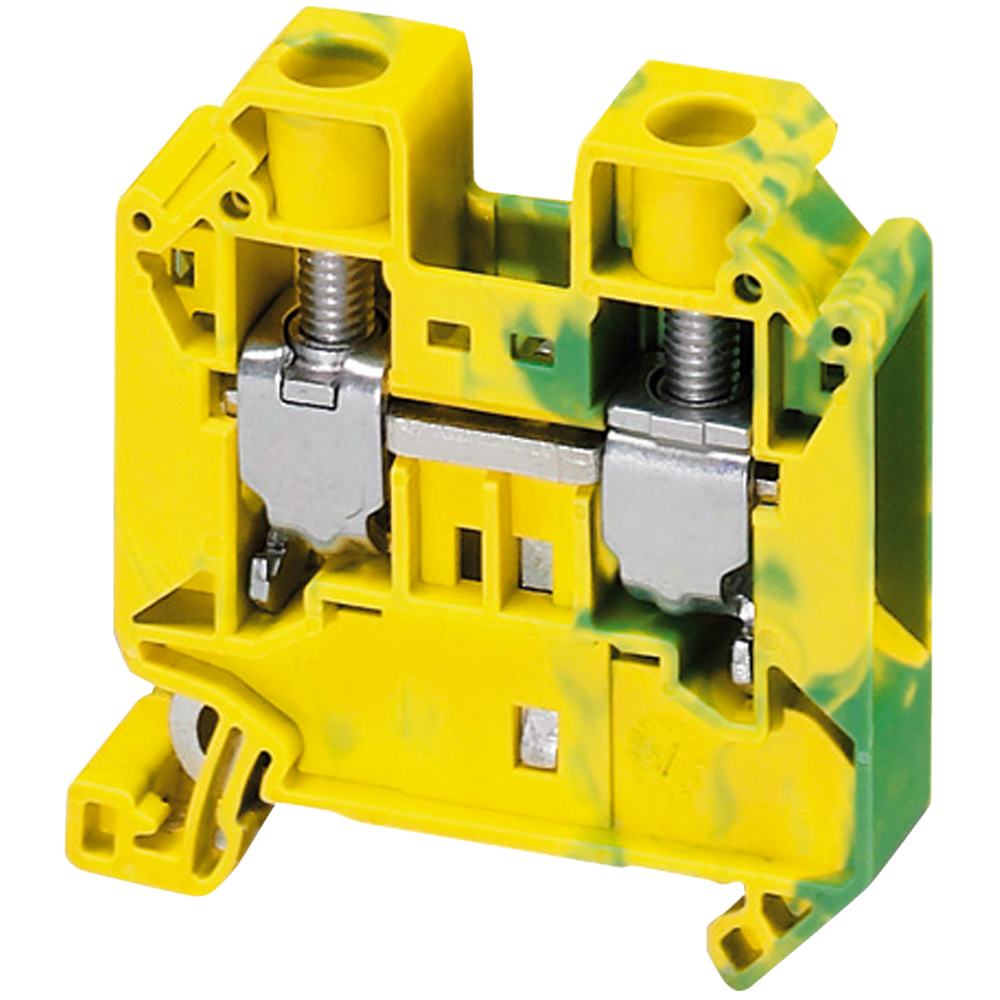

Schneider Electric NSYTRV162PE
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Linergy TR is terminal block for Linergy. It belongs to linergy earth terminal block with 16 mm² nominal cross section. It has green-yellow surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).SCREW TERMINAL, PROTECTIVE EARTH, 2 POINTS, 16MM², GREEN-YELLOW
Schneider Electric NSYTRV162PE is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Cable Cross Section
- 1.5-25 mm², solid || 1-16 mm², flexible with cable end || 1.5-25 mm², flexible without cable end
- Connection Position
- sideways
- Connections - Terminals
- 1 x screw terminal upstream || 1 x screw terminal downstream
- Creep Resistance
- 500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
- Dielectric Constant
- 3.7 at 1 MHz
- Dielectric Loss
- 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
- Flame Retardance
- V0 0.8 mm UL 94
- Height
- 55 mm
- Line Rated Current
- 101-101 A EN/IEC 60947-7-1
- Material
- polyamide 6/6 insulating case
- Net Weight
- 46.85 g
- Number Of Measurement Input
- 2
- Number Of Terminals
- 2
- Product Compatibility
- Spacial enclosures
- Range Compatibility
- Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
- Resistivity
- 10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
- Surface Resistance
- 1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
- Tightening Torque
- 2.5-3 N.m
- Tool Type
- connection screwdriver || disconnection screwdriver
- Width
- 12.2 mm
- Wire Stripping Length
- 14 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
- Dielectric Strength
- 1000 V IEC 60243-1
- Product Certifications
- ATEX || GL || DNV || VDE || cURus || LR || IEC-Ex || EAC || CSA
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP1304019EN
- Eu Rohs Directive
- Compliant
- Halogen Content Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Color
- green-yellow
- Device Short Name
- TRV
- Length
- 55.5 mm
- Mounting Mode
- clip-on
- Nominal Cross Section
- 16 mm²
- Product Name
- Linergy TR
- Product Or Component Type
- terminal block
- Quantity Per Set
- set of 50
- Range
- Linergy
- Terminal Block Level
- 1
- Terminal Block Type
- protective earth
