Description

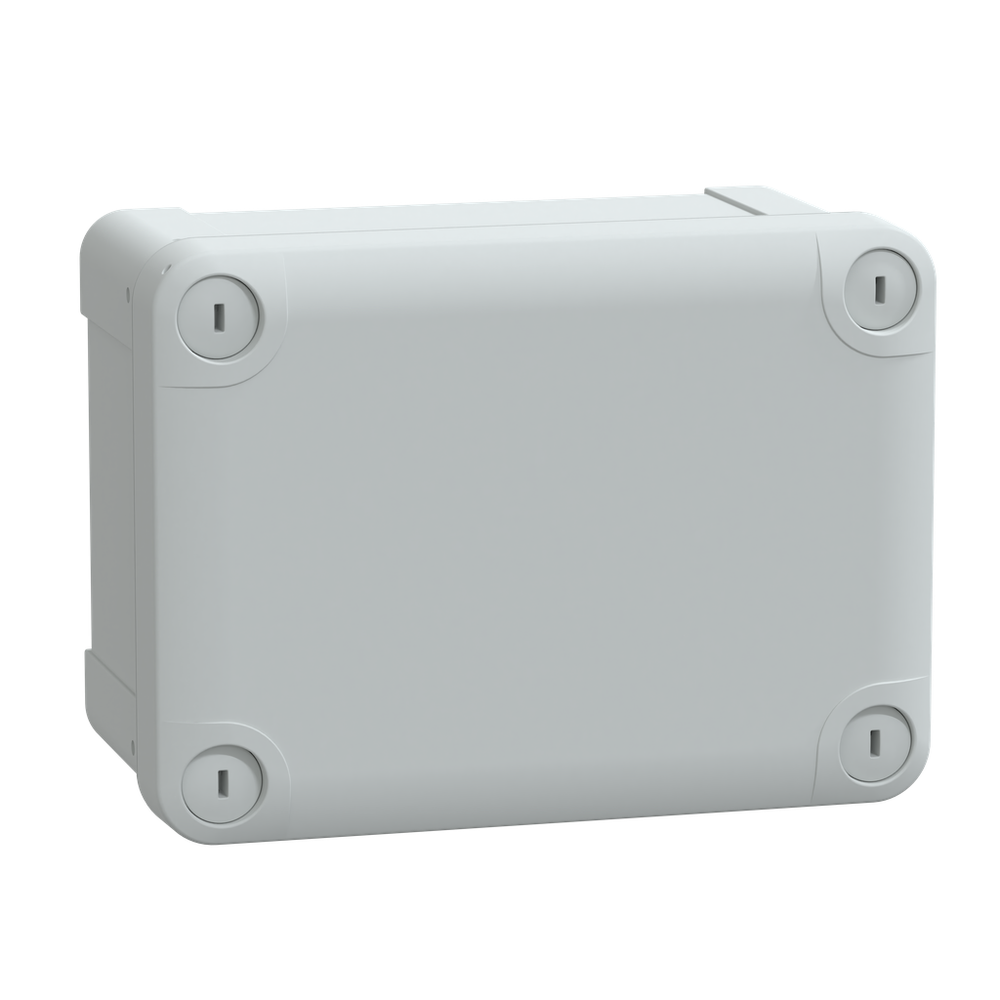

Thalassa TBS industrial ABS box with opaque cover H20. Int is 150 x 105 x 80 mm. Ext is 164 x 121 x 87 mm. Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).ABS box IP66 IK07 RAL7035 Int.H150W105D80 Ext.H164W121D87 Opaque cover H20
Schneider Electric NSYTBS16128 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Ambient Air Temperature For Operation
- -25-60 °C
- Ambient Air Temperature For Storage
- -15-40 °C
- Color
- Gray RAL 7035)
- Electrical Insulation Class
- class II
- Fire Resistance
- 650 °C IEC 60695-2-11
- Ik Degree Of Protection
- IK07 IEC 62262
- Ip Degree Of Protection
- IP66 conforming to NEMA 4.4X
- Material
- ABS (acrylonitrile butadiene-styrene)
- Net Weight
- 0.32 kg
- Product Certifications
- TÜV
- Standards
- IEC 62208
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP2012015EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
Specifications
- Body Type
- one piece moulded
- Cover Fixing
- plastic screws
- Depth
- 87 mm
- Device Application
- multi-purpose
- Device Composition
- 1 body || 1 cover || 4 cover screw
- Enclosure Mounting
- wall mounted
- Height
- 164 mm
- Internal Depth
- 80 mm
- Internal Height
- 150 mm
- Internal Width
- 105 mm
- Lock Type
- captive screw flat outside sealed area
- Product Name
- Thalassa TBS
- Product Or Component Type
- industrial box
- Quantity Per Set
- set of 2
- Range
- Thalassa
- Removable Parts
- cover by captive screws
- Type Of Front Cover
- low plain cover
- Width
- 121 mm
