Description

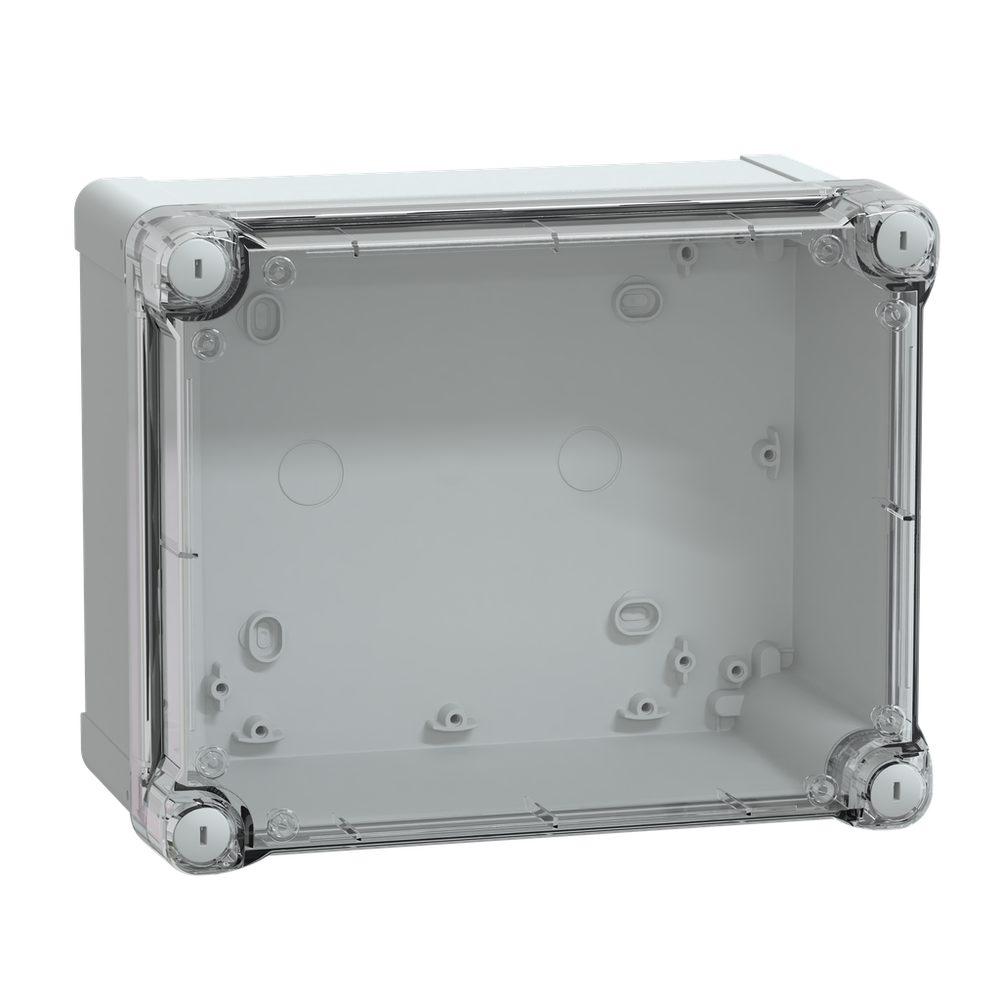

PC box IP66 IK08 RAL7035 Int.H225W175D120 Ext.H241W194D127 Transp.cover H40
Schneider Electric NSYTBP241912HT is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Color
- Gray RAL 7035) || Transparent
- Electrical Insulation Class
- class II
- Material
- polycarbonate
- Mounting Location
- outdoor (with canopy or shelter and anticondensation valve)
- Net Weight
- 0.82 kg
- Product Certifications
- TÜV || UL
- Standards
- UL 508 A || IEC 62208
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-80 °C
- Ambient Air Temperature For Storage
- -15-60 °C
- Fire Resistance
- 960 °C
- Ik Degree Of Protection
- IK08 IEC 62262
- Ip Degree Of Protection
- IP66 conforming to NEMA 4.4X
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Circularity Profile
- ENVEOLI2012016EN
- Environmental Disclosure
- ENVPEP2012016EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
Specifications
- Body Type
- one piece moulded
- Cover Fixing
- plastic screws
- Depth
- 127 mm
- Device Application
- multi-purpose
- Device Composition
- 1 body || 1 cover || 4 cover screw
- Enclosure Mounting
- wall mounted
- Height
- 241 mm
- Internal Depth
- 120 mm
- Internal Height
- 225 mm
- Internal Width
- 175 mm
- Lock Type
- captive screw flat outside sealed area
- Product Name
- Thalassa TBP
- Product Or Component Type
- industrial box
- Range
- Thalassa
- Removable Parts
- cover by captive screws
- Type Of Front Cover
- high transparent cover
- Width
- 194 mm
