Schneider Electric NSYTBP1397T
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

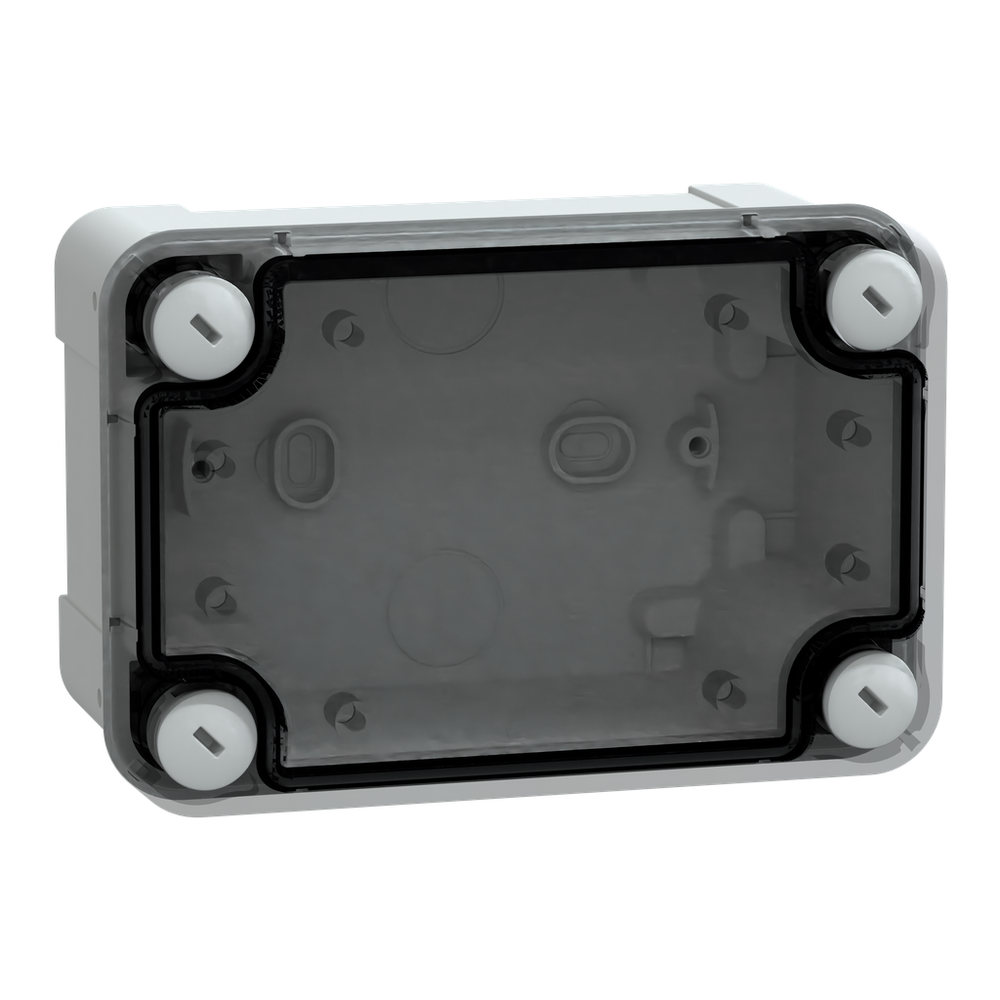

Thalassa TBP industrial PC box with transparent PC cover H20. Int is 125 x 80 x 65 mm. Ext is 138 x 93 x 72 mm. Wall mounted enclosure. Low transparent cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV, UL. UL 508 A Standard. Fire resistance 960°. Polycarbonate made. IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II. Set of 5. Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).PC box IP66 IK08 RAL7035 Int.H125W80D65 Ext.H138W93D72 Transp.cover H20
Schneider Electric NSYTBP1397T is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Color
- Gray RAL 7035) || Transparent
- Electrical Insulation Class
- class II
- Material
- polycarbonate
- Mounting Location
- outdoor (with canopy or shelter and anticondensation valve)
- Net Weight
- 0.23 kg
- Product Certifications
- TÜV || UL
- Standards
- IEC 62208 || UL 508 A
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-80 °C
- Ambient Air Temperature For Storage
- -15-60 °C
- Fire Resistance
- 960 °C
- Ik Degree Of Protection
- IK08 IEC 62262
- Ip Degree Of Protection
- IP66 conforming to NEMA 4.4X
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Circularity Profile
- ENVEOLI2012016EN
- Environmental Disclosure
- ENVPEP2012016EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
Specifications
- Body Type
- one piece moulded
- Cover Fixing
- plastic screws
- Depth
- 72 mm
- Device Application
- multi-purpose
- Device Composition
- 1 body || 1 cover || 4 cover screw
- Enclosure Mounting
- wall mounted
- Height
- 138 mm
- Internal Depth
- 65 mm
- Internal Height
- 125 mm
- Internal Width
- 80 mm
- Lock Type
- captive screw flat outside sealed area
- Product Name
- Thalassa TBP
- Product Or Component Type
- industrial box
- Quantity Per Set
- set of 2
- Range
- Thalassa
- Removable Parts
- cover by captive screws
- Type Of Front Cover
- low transparent cover
- Width
- 93 mm
