Schneider Electric NSYSPF10100
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

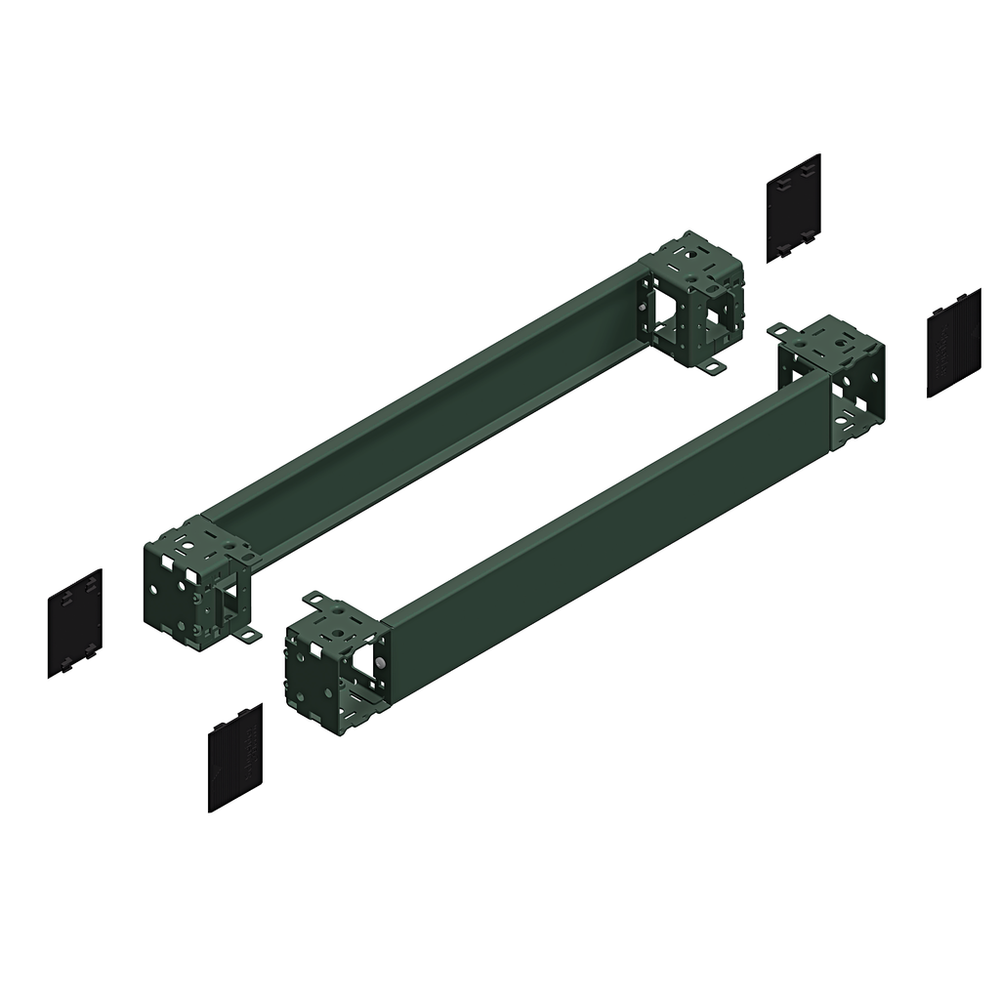

Front plinth for Spacial CRN, S3D, SF, SM, SD. 99 x 1000 mm. Multi-purpose enclosure accessory. Plinth side panels mounting support. Permanent permissible load 1300kg. Fixing mode by fixing element. Epoxy-polyester powder surface finish. Grey RAL 7022. IP30 complete plinth, IK10.Front & rear plinth, PanelSeT SFN, Spacial SF, Spacial SM, for electrical enclosure W1000mm, plinth H100mm
Schneider Electric NSYSPF10100 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Color
- Gray RAL 7022)
- Fixing Mode
- by fixing element - on structure
- Height
- 100 mm
- Permanent Permissible Load
- 1300 kg
- Surface Finish
- epoxy-polyester powder
- Width
- nominal 1000 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ik Degree Of Protection
- IK10
- Ip Degree Of Protection
- IP30 complete plinth)
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP110923EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Accessory / Separate Part Category
- enclosure accessory
- Device Application
- multi-purpose
- Device Composition
- fixing elements || 4 corner cover || 1 front panel || 1 rear panel || 4 corner
- Mounting Support
- plinth side panels
- Product Or Component Type
- plinth front
- Range
- Spacial
- Range Compatibility
- Spacial (Spacial SF) || Spacial (Spacial SM) || Spacial (Spacial SD) || Spacial (Spacial S3D) || Spacial (Spacial CRN)
