Description

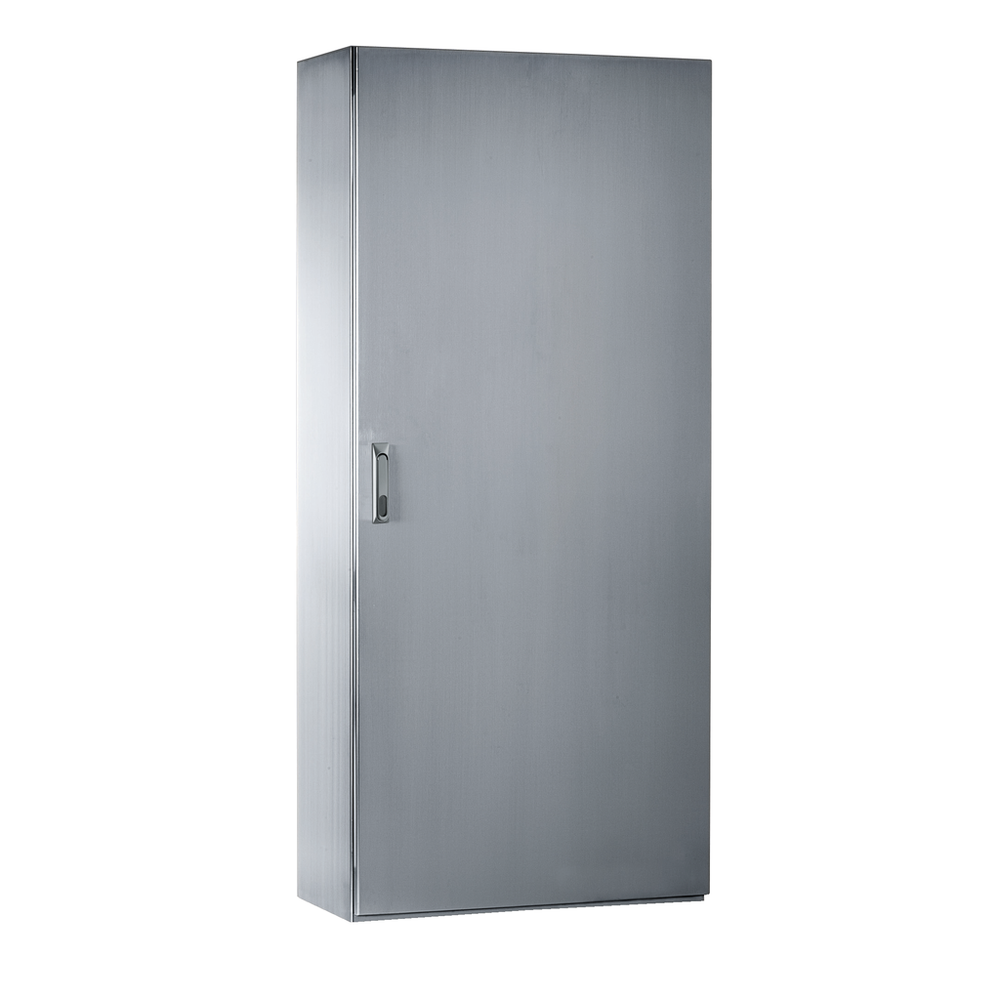

SMX 304L stainless monobloc enclosure, H1800xW600xD400mm, Scotch Brite® finish.
Schneider Electric NSYSMX18640 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Accessibility For Operation
- front
- Body Type
- single piece body folded and welded
- Door Opening Side
- reversible 120 °)
- Door Type
- Solid
- Lock Type
- 3 points lock, handle with 5 mm double-bar insert
- Material
- body and door stainless steel 304L || handle zamak || hinge stainless steel
- Mounting Plate Description
- without mounting plate
- Net Weight
- 85 kg
- Number Of Doors
- front face 1
- Removable Parts
- door by hinges || mounting plate bracket by screws || cable gland plate by clips
- Surface Finish
- enclosure Scotch-Brite® brushed || handle painted
- Type Of Gland Plate
- plain
Contractual warranty
- Warranty
- 18 months
Environment
- Environmental Characteristic
- corrosive || specific hygiene
- Ik Degree Of Protection
- IK10 IEC 62262
- Ip Degree Of Protection
- IP66 IEC 60529
- Product Certifications
- CAN/CSA 22 || UL 508
- Standards
- IEC 62208
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP2107011EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Device Application
- multi-purpose
- Device Composition
- 1 body || 1 cable gland plate || 1 locking system with handle door || 4 mounting plate bracket || 1 door
- Enclosure Nominal Depth
- 400 mm
- Enclosure Nominal Height
- 1800 mm
- Enclosure Nominal Width
- 600 mm
- Installation Accessory Type
- floor-standing
- Product Name
- Spacial SMX
- Product Or Component Type
- compact enclosure
- Range
- Spacial
