Schneider Electric NSYSM18650
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

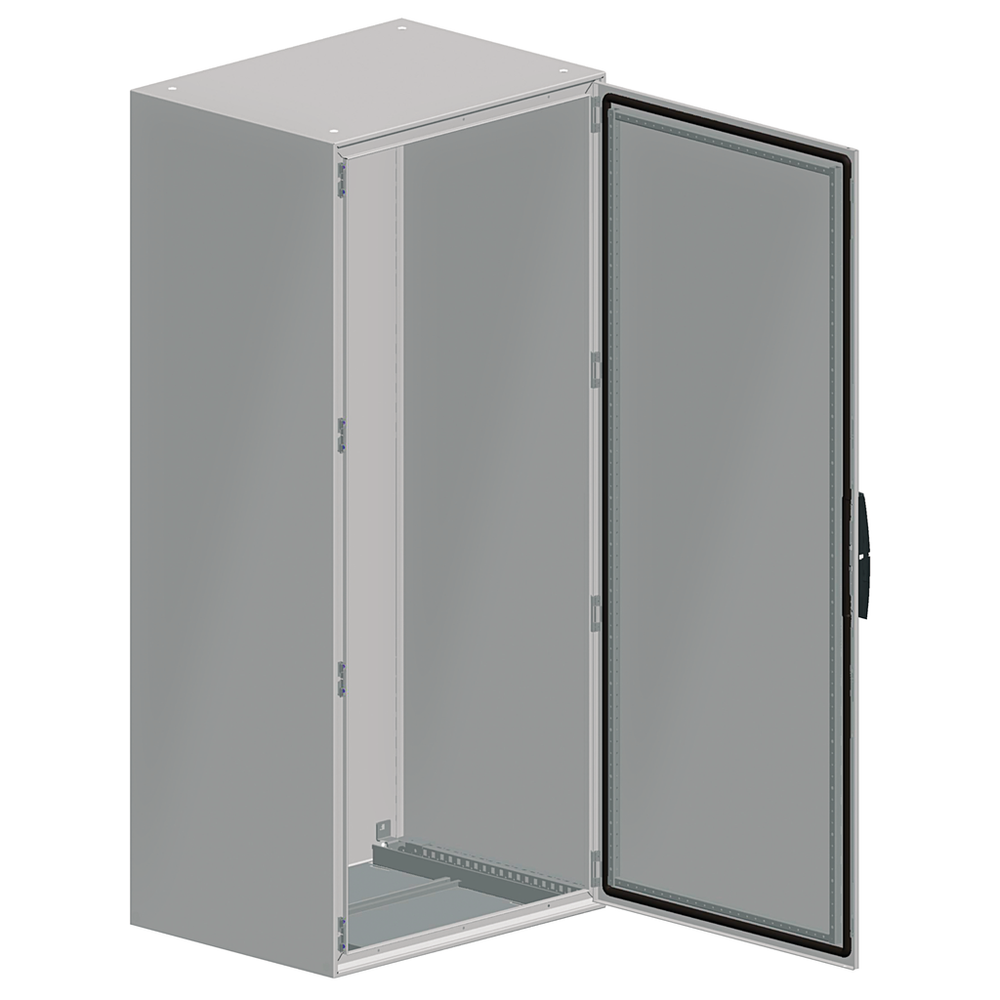

Spacial SM monobloc compact steel enclosure with plain front door. 1800 x 600 x 500 mm. Back panel welded, without mounting plate. 4 point door locking system with handle DB 5mm. Steel made. Protection IP 55, IK10, Grey RAL 7035. 4 mounting plate support brackets and 2 parts cable gland plate included.Spacial SM compact enclosure without mounting plate - 1800x600x500 mm
Schneider Electric NSYSM18650 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Accessibility For Operation
- front
- Body Type
- front part forming a rigid frame with welded corners || single piece body with welded rear panel
- Cable Entry
- 1 entry
- Color
- enclosure Gray RAL 7035) || handle Black RAL 9005)
- Door Opening Side
- reversible 120 °)
- Door Type
- Solid
- Lock Type
- 4 points lock, handle with 5 mm double bar insert
- Material
- body sheet steel || door sheet steel || hinge zamak
- Mounting Plate Description
- without mounting plate
- Net Weight
- 85 kg
- Number Of Doors
- front 1
- Surface Finish
- epoxy-polyester powder
- Type Of Gland Plate
- standard
Contractual warranty
- Warranty
- 18 months
Environment
- Ik Degree Of Protection
- IK10 IEC 62262
- Ip Degree Of Protection
- IP55 IEC 60529
- Product Certifications
- DNV || UL || BV
- Standards
- IEC 62208
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP110923EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Device Application
- multi-purpose
- Device Composition
- 1 body || 1 cable gland plate || 1 locking system with handle door || 4 mounting plate bracket || 1 door
- Enclosure Nominal Depth
- 500 mm
- Enclosure Nominal Height
- 1800 mm
- Enclosure Nominal Width
- 600 mm
- Installation Accessory Type
- floor-standing
- Product Name
- Spacial SM
- Product Or Component Type
- compact enclosure
- Range
- Spacial
- Removable Parts
- door by screws hinge || mounting plate bracket by screws
