Schneider Electric NSYSF20680M
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

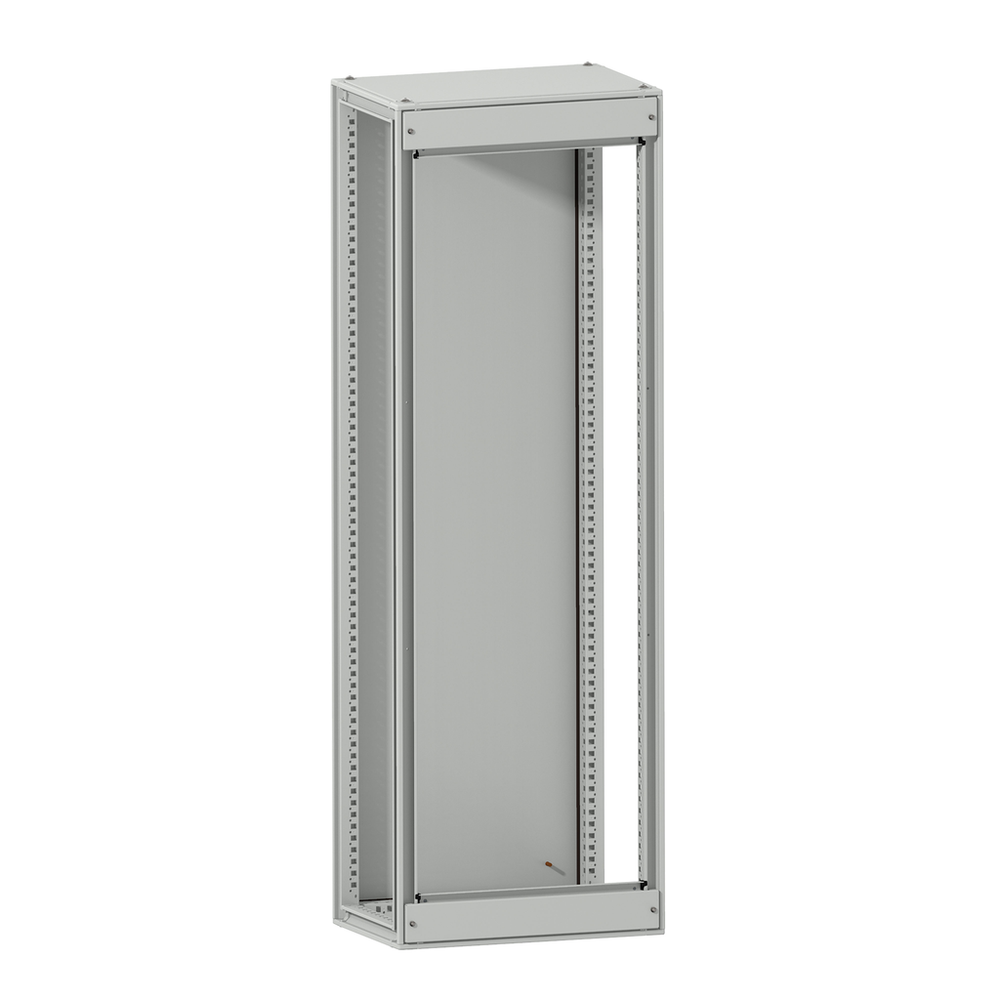

Spacial SF compartmentalised enclosure - assembled - 2000x600x800 mm
Schneider Electric NSYSF20680M is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Accessibility For Operation
- sides of enclosure || front || rear
- Color
- Gray RAL 7035)
- Material
- frame galvanised steel || uprights galvanised steel || panels sheet steel || hinge zamak
- Mounting Plate Description
- without mounting plate
- Removable Parts
- rear panel by screws || roof by screws
- Structure Type
- panels and doors built into the structure || formed from a single section || vertical uprights joined with top and bottom frames || perforated structure with a pitch of 25 mm
- Surface Finish
- epoxy-polyester powder
- Type Of Gland Plate
- without gland plate
Contractual warranty
- Warranty
- 18 months
Environment
- Standards
- IEC 62208
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP110923EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Device Application
- compartmentalised application
- Device Composition
- 1 structure || 1 rear panel || 1 roof || 2 intermediate crossbars || 2 panels for modularity top and bottom
- Enclosure Mounting
- floor-standing
- Enclosure Nominal Depth
- 800 mm
- Enclosure Nominal Height
- 2000 mm
- Enclosure Nominal Width
- 600 mm
- Product Name
- Spacial SFM
- Product Or Component Type
- suitable enclosure
- Product Specific Application
- reduce the destructive effects of a short-circuit || insulating the control of a device
- Range
- Spacial
