Schneider Electric NSYSF201040
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

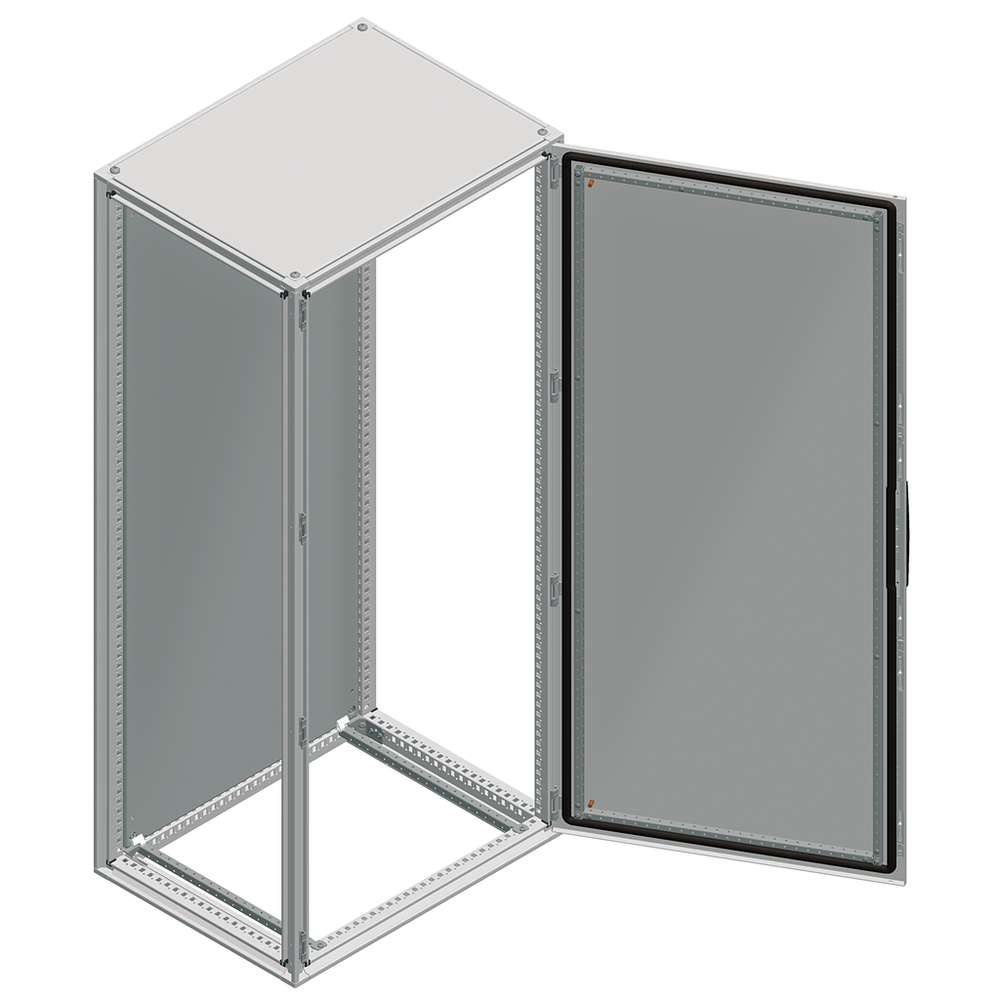

Spacial SF suitable steel enclosure with plain front door. 2000 x 1000 x 400 mm. Assembled. Screw fixed rear panel. Without mounting plate. 4-point closure system with handle and 5 mm double bar lock insert. Galvanised steel for frame and uprights. Protection IP 55, IK10, Grey RAL 7035. 4 mounting plate support brackets included.Spacial SF enclosure without mounting plate - assembled - 2000x1000x400 mm
Schneider Electric NSYSF201040 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Accessibility For Operation
- sides of enclosure || rear || front
- Color
- enclosure Gray RAL 7035) || handle Black RAL 9005)
- Door Opening Side
- reversible 120 °)
- Door Type
- Solid front
- Lock Type
- 4 points lock, handle with 5 mm double bar insert front door
- Material
- frame galvanised steel || uprights galvanised steel || door sheet steel || panels sheet steel || hinge zamak || handle polyamide 6 with 30 % fibre glass
- Mounting Plate Description
- without mounting plate
- Net Weight
- 121.9 kg
- Number Of Doors
- front 1
- Removable Parts
- door by screws hinge || rear panel by screws || roof by screws || mounting plate bracket by screws || sliding rail by screws
- Structure Type
- formed from a single section || perforated structure with a pitch of 25 mm || vertical uprights joined with top and bottom frames || panels and doors built into the structure
- Surface Finish
- epoxy-polyester powder
- Type Of Gland Plate
- without gland plate
Contractual warranty
- Warranty
- 18 months
Environment
- Ik Degree Of Protection
- IK10 IEC 62262
- Ip Degree Of Protection
- IP55 IEC 60529
- Nema Degree Of Protection
- NEMA 3R/12
- Standards
- IEC 62208
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP110923EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Device Application
- multi-purpose
- Device Composition
- 2 sliding rails || 4 mounting plate bracket || 1 structure || 1 door || 1 locking system with handle door || 1 rear panel || 1 roof
- Enclosure Mounting
- floor-standing
- Enclosure Nominal Depth
- 400 mm
- Enclosure Nominal Height
- 2000 mm
- Enclosure Nominal Width
- 1000 mm
- Product Name
- Spacial SF
- Product Or Component Type
- suitable enclosure
- Range
- Spacial
