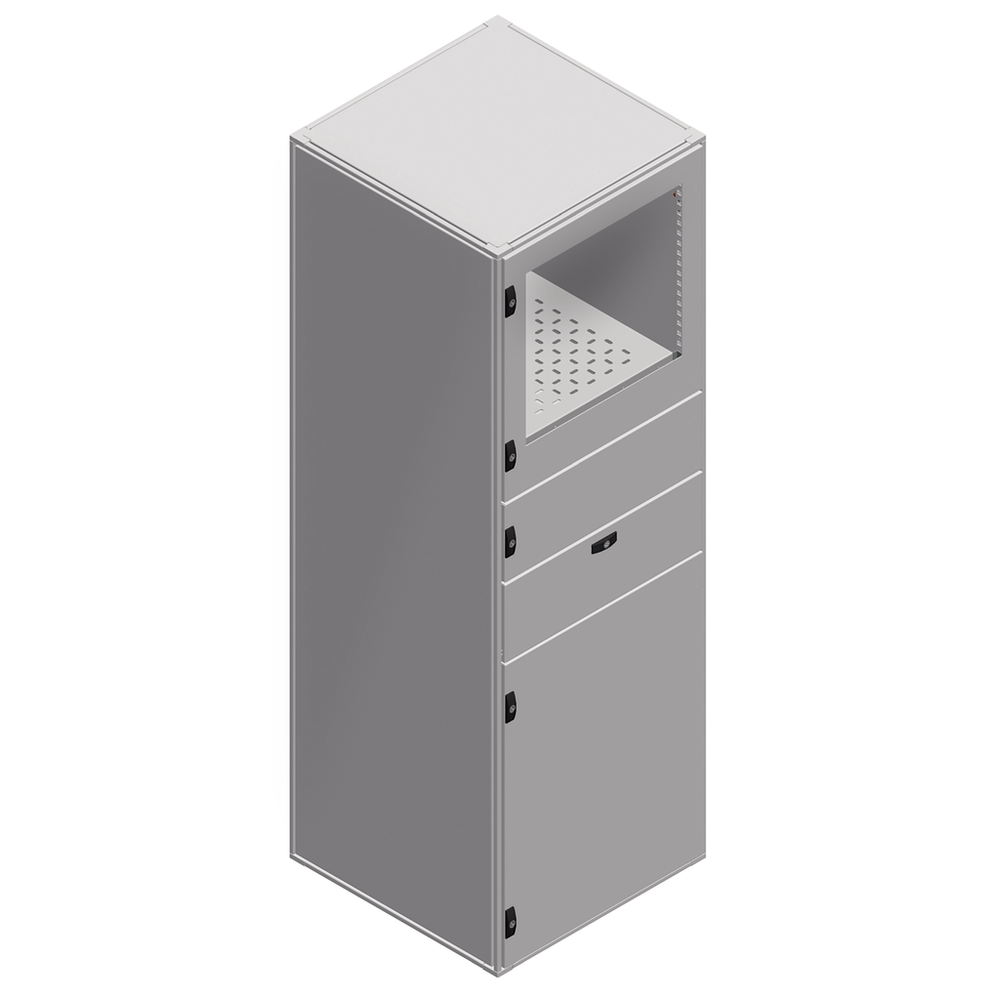

Schneider Electric NSYSF18660PC
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Spacial SF PC rack enclosure assembled without mounting plate. 1800 x 600 x 600 mm. For protecting computer equipment. Doors is Plain partial front, Glazed partial front, plain rear. 3 compartments. Escutcheon lock, 3 mm double bar on front partial doors. Galvanised steel for frame and uprights, sheet steel for door and panels. Grey RAL 7035. IP55, IK10, IK08 (for glazed dor).Spacial SF PC rack enclosure - assembled - 1800x600x600 mm
Schneider Electric NSYSF18660PC is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Accessibility For Operation
- sides of enclosure || rear || front
- Cable Entry
- 1 entry
- Color
- enclosure Gray RAL 7035) || handle Black RAL 9005)
- Door Opening Side
- reversible 120 °)
- Door Type
- plain partial front || glazed partial front || Solid rear || hinged plain partial front
- Lock Type
- flat escutcheon lock, 5 mm double bar rear door || escutcheon lock, 3 mm double bar front partial doors
- Material
- frame galvanised steel || uprights galvanised steel || door sheet steel || panels sheet steel || hinge zamak || escutcheon polyamide 6 with 30 % fibre glass
- Mounting Plate Description
- without mounting plate
- Number Of Compartiments
- 4
- Number Of Doors
- front 4 || rear 1
- Removable Parts
- roof by screws internally || side panel by screws internally || door by screws hinge
- Structure Type
- panels and doors built into the structure || formed from a single section || perforated structure with a pitch of 25 mm || vertical uprights joined with top and bottom frames
- Surface Finish
- epoxy-polyester powder
- Type Of Gland Plate
- standard
Contractual warranty
- Warranty
- 18 months
Environment
- Ik Degree Of Protection
- IK08 IEC 62262 of transparent door) || IK10 IEC 62262 of plain door)
- Ip Degree Of Protection
- IP40 IEC 60529 with hinged keyboard) || IP55 without hinged keyboard)
- Nema Degree Of Protection
- NEMA 3R/12
- Standards
- IEC 62208
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP110923EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Device Application
- PC application
- Device Composition
- 1 structure || 1 roof || 2 side panels || 1 cable gland plate || 1 partial door for keyboard || 1 partial door for PC screen || 1 partial door for printer support || 1 rear door || 1 partial door for CPU
- Enclosure Mounting
- floor-standing
- Enclosure Nominal Depth
- 600 mm
- Enclosure Nominal Height
- 1800 mm
- Enclosure Nominal Width
- 600 mm
- Product Name
- Spacial SF
- Product Or Component Type
- suitable enclosure
- Product Specific Application
- protecting computer equipment
- Range
- Spacial
